Wireless Wired Combustible Gas Detector with High Quality

Name: Wireless Wired Combustible Gas Detector with High Quality
Brand: all-electronics-online.com
SKU: 689633472
Availability: InStock
Rating: 4.9 (132 reviews)

Price:	US $ 1.0/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ES-6001GD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mounted Way:	Wall Mounted
Detector Type:	Wired or Wireless Optional
Operation Voltage:	110V-265V AC/12V/24V DC
Sensor Type:	Semiconductor
Gas Can Be Detected:	Natural Gas, LPG, Coal Gas
Installation Mode:	Wall Mounted
Application:	Traffic
Usage:	Gas
Type:	Sensor

Product Description

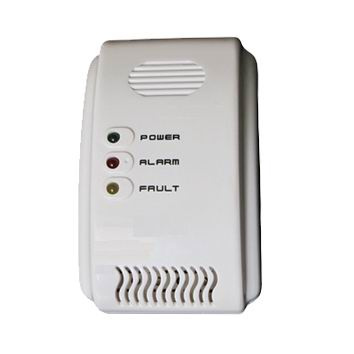

Wireless Wired Combustible Gas Detector with High Quality

Main features
High reliability sensor
Auto reset after alarm
Mcu processing adopted
Auto detect sensor failure
Induced gas- natural gas / lpg
Smt design, high stability

Technical Parameters

Operating VoltageDC9-16V or AC 85~265V
Static Current90mA
Alarm Current100mA
Rating Power: 3W (AC 220V supply)
Warm-up Time: about 180S
Alarm Level: 10%LEL
Sound Level: 85dB/m
Operating Temperature: -10 +50
Alarm Indicator: red LED flash
Failure Indicator: yellow LED on & beeper long- buzz
Environment Humidity: 95RH (no congelation)
Installation Mode: wall mounted
Alarm Output: relay output/sound & flash alarm
RF 315MHz or 433MHz (wireless type)
Radio Distance: 100m in open area (wireless type)
Outline Size115*72*41mm

Can work with gas solenoid valve

Features
Well airproofed
Low power consumption
High sensitivity
Reliable performance
Small size and easy handle

Technical data
Target gas:Natural gas, lpg, and coal gas etc
Diameter:G1/2(dn15)-g4 (dn100)
Material:Brass or aluminium
Airproof material:Nbr rubber, fkm rubber
Opening manner:Manual reset
Closing manner:Dc power pulse actuation /manual
Valve closed time:≤ 1sec
Allowed continued powered time:≤ 30secs
Explosive proof level:Ip54 (request with shield)

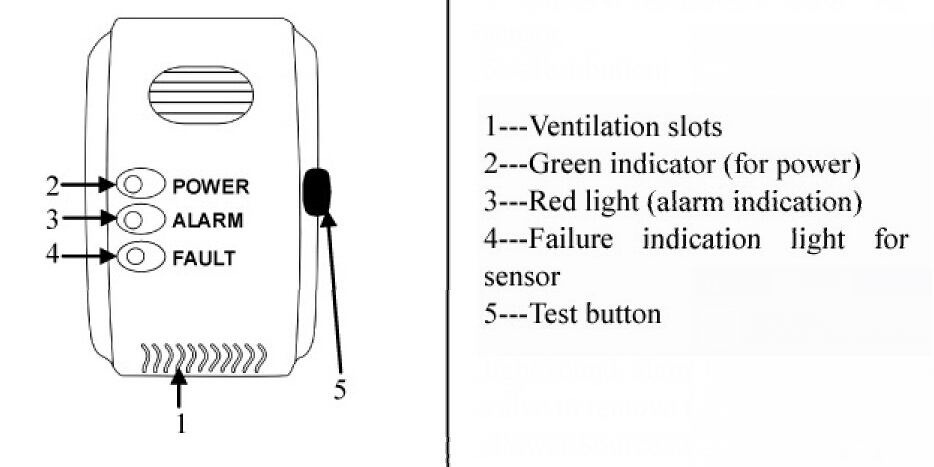

Buttons Introduction

Installation

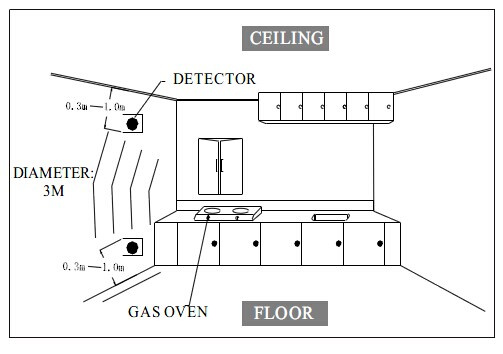

Choosing the suitable position to install the Detector according to the gas specific gravity. Detecting the gas heavier than air: Installation height from floor: 0.3-1.0m,Semi-diameter to gas source: <1.5m;Detecting the gas lighter than air: Installation height from ceiling: 0.3-1.0m ,Semi-diameter to gas source: <1.5m.

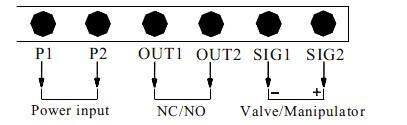

Terminals
