Xr Series Dixell Temperature Controller Defrost Double Output Thermostat Xr04cx-5n0c1

Name: Xr Series Dixell Temperature Controller Defrost Double Output Thermostat Xr04cx-5n0c1
Brand: all-electronics-online.com
SKU: 729664845
Availability: InStock
Rating: 4.7 (91 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XR04CX-5N0C1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation Type:	The Embedded
Material:	Plastic

Product Description

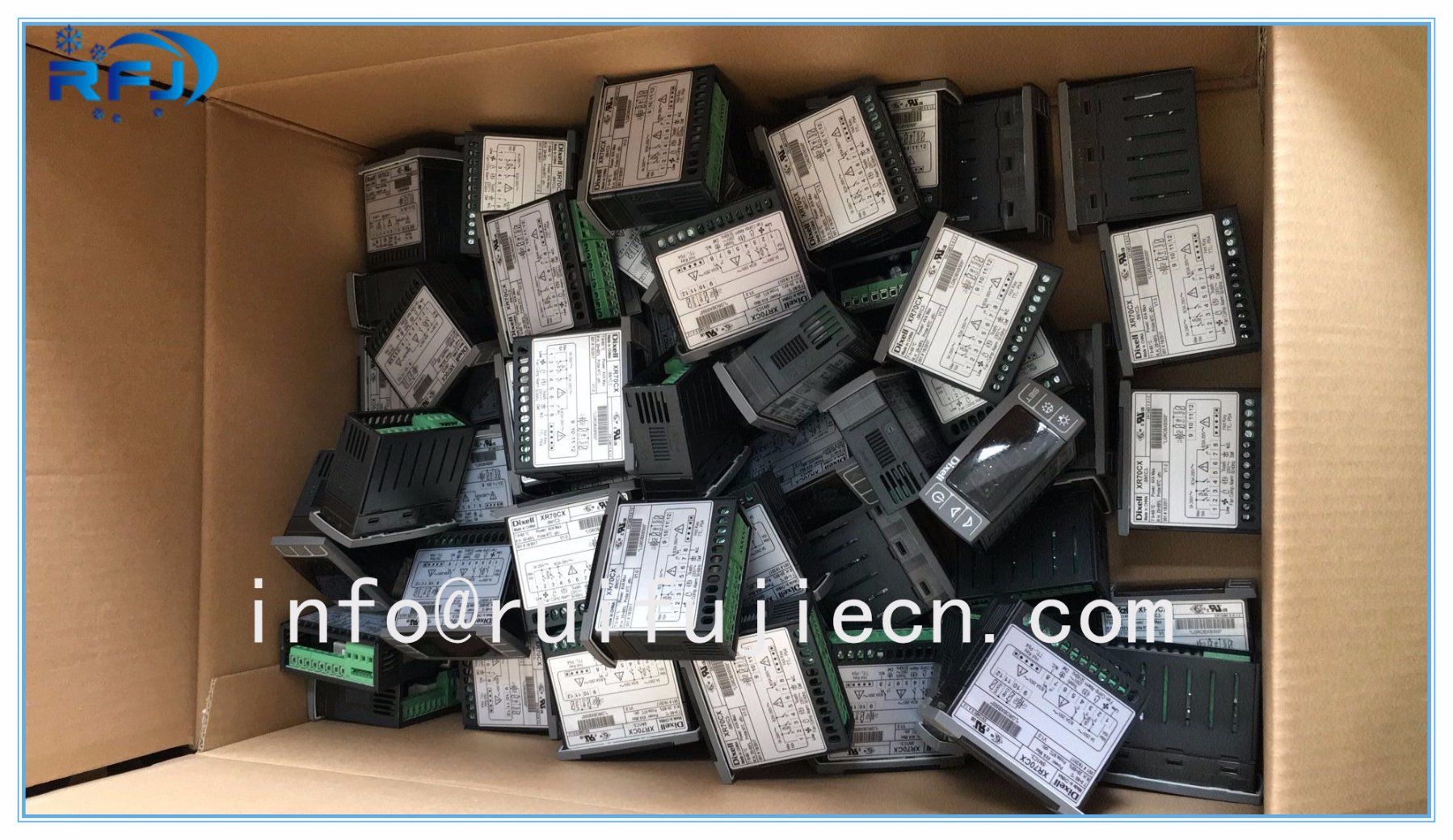

Dixell Temperature Controller Defrost double output thermostat

XR04CX-5N0C1

Product description:

Origin: Italy (now Chinese factories have production)

Shell: ABS sublight flame retardant plastic;

Dimensions: front 32x74 mm;Deep 50 mm;

Mounting dimensions: fixed in the open hole for 71x29mm panel;

Overall protection level: IP20;Front panel protection level: IP65;

Wiring terminal: edge card connection, wire diameter is less than 2.5 mm2;

Power supply: 230Vac + 10%, 50/60hz;110Vac plus or minus 10%, 50/60hz.Please refer to the nameplate in kind.

Power consumption: maximum 3VA;

Display: 2 red digital tubes (quantity reached, blue can be ordered,), 14.2 mm high;Input: 1 channel NTC input;

Digital input: no digital input

Output relay: compressor SPST 20(8) A, 250Vac;Defrost output: 8(3)A 250Vac;

Data storage: electrically erasable electronic writing memory (EEPROM).

Control level: 1B;

Environmental level: 2;

Software level: A;

Maximum insulation voltage: 2500V;Grade of overvoltage: II;

Working temperature: 0 ~ 60 ° C;Storage temperature: - 30 ~ 85 ° C.

Relative humidity: 20~85RH% (unexposed)

Measure and control temperature range: NTC - 40 ~ 110 ° C;

Resolution: 0.1 ° C or 1 ° C;

Precision (at the ambient temperature of 25 ° C), plus or minus 0, 7 ° C plus or minus one

HOW TO ORDER
PRIME CX

A	B	C				D			E
Power Supply	Inputs	-	Buzzer	X-REP (excludes TTL output)	RS485 output	-	Measurement unit	RTC	-	Compressor output	Connection
0 = 12Vac/dc	P = PTC	0	No	No	No	C	°C	No	0	8A	Screw
1 = 12Vac/dc	N = NTC	1	Yes	No	No	F	°F	No	1	20A	Screw
2 = 24Vdc	S =Pt1000 only for XR35/75CX	2	No	Yes	No	H	°C heating only for XR10CX	No	3	16A	Screw
3 = 9 ÷40Vdc	S =Pt1000 only for XR35/75CX	3	Yes	Yes	No	H	°C heating only for XR10CX	No	6	8A	Faston
4 = 110Vac	- - - -	4	No	No	Yes	L	°F heating only for XR10CX	No	7	20A	Faston
5 = 230Vac		5	Yes	No	Yes	L	°F heating only for XR10CX	No	8	16A	Faston
- -		6	No	Yes	Yes	I	°C	Yes	- -	- -	- -
- -		7	Yes	Yes	Yes	M	°F	Yes	- -	- -	- -
