Xt110c-5c1tu Xt110c-5h0hu Dixell Refrigeration Temperature Controller Single Output Humidity Controller

Name: Xt110c-5c1tu Xt110c-5h0hu Dixell Refrigeration Temperature Controller Single Output Humidity Controller
Brand: all-electronics-online.com
SKU: 729665955
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XT110C-5C1TU 5H0HU
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Temperature Controller
Usage:	Refrigerator
Control Type:	Digital
Display Type:	LED
Measurement Object:	Cold Cabinet, Display Cabinet, Cold Water Machine
Control Mode:	Intelligent Temperature Control Regulator
Installation Type:	The Embedded
Material:	Plastic

Product Description

Dixell Refrigeration Temperature Controller Single output humidity controller

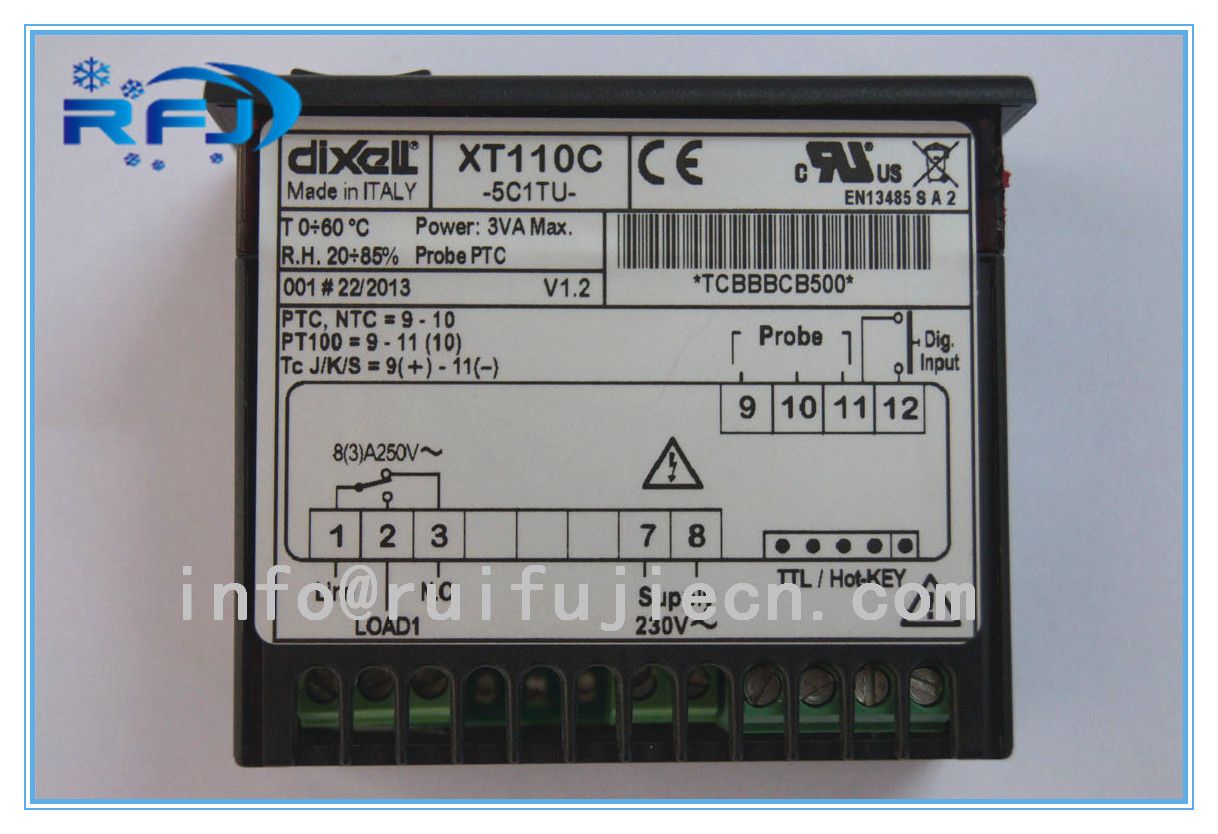

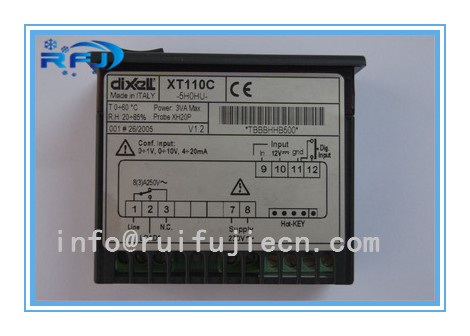

Model: XT110C-5C1TU XT110C-5H0HU

Product description:
1.Shell: ABS sublight flame retardant plastic;
2.Dimensions: front 32x74 mm;Deep 60 mm
3.Mounting dimensions: fixed in the open hole for 71x29mm panel;
4.Overall protection level: IP20;Front panel protection level: IP65;
5.Connecting terminal: bolt pressure, the wire diameter is less than 2.5mm2
6.Power supply: 230Vac + 10%, 50/60hz
7.Power consumption: maximum 3VA;
8.Display: 3 red digital tubes, 14.2 mm high;
9.Input: 1 channel NTC input
10.Output relay: compressor/plus hotline: 20(8)A 250Vac
11.Data storage: electrically erasable electronic writing memory (EEPROM).
12.Control level: 1B;Environmental level: 2;Software level: A;
13.Maximum insulation voltage: 2500V;Grade of overvoltage: II;
14.Working temperature: 0 ~ 60 ° C;Storage temperature: - 30 ~ 85 ° C.
15.Relative humidity: 20~85RH% (unexposed)
16.Measure and control temperature range: NTC: - 40 ~ 110 ° C;PTC: - 50 ~ 150 ° C;PT100:60-200 - plus;TC - J: 0 to + 600 ºC,
K: 0 to + 999 ºC
17.Resolution: 0.1 ° C or 1 ° C;Precision (at the ambient temperature of 25 ° C), plus or minus 1 ° C + 1
