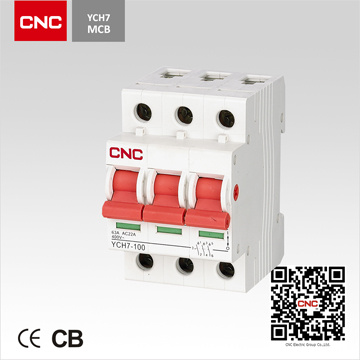

Ych7 Isolating Switch 3 Pole

Name: Ych7 Isolating Switch 3 Pole
Brand: all-electronics-online.com
SKU: 703047485
Availability: InStock
Rating: 4.5 (79 reviews)

Price:	US $ 3.4-3.8/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCH7-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pole:	1.2.3.4
Rated Voltage:	230/400V
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Poles Number:	3
Certification:	IEC60947-3
Installation:	DIN Rail
Structure:	Miniature Circuit Breaker
Type:	Isolation Switch
Function:	Isolate

Product Description

General
1. Making and breaking under load condition
2. Providing safety isolation for terminal distribution system
3. Used in residential building, non-residential building

Electrical features	Rated current In	A	32, 40, 50, 63, 80, 100
	Poles	P	3
	Rated voltage Ue	V	230/400
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated short-time withstand current Icw		2Ole, 1S
	Rated impulse withstand voltage (1.2/50) Uimp	V	4000
	Dielectric test voltage at ind. Freq. for 1 min	Kv	2.5
	Rated making and breaking capacity		3Ie, 1.05Ue, cosφ =0.65
	Rated short circuit making capacity		20Ie, 0.1s
	Pollution degree		2
Mechanical features	Electrical life	t	1500
	Mechanical life	t	8500
	Protection degree		IP20
	Ambient temperature (with daily average≤ 35° C)	° C	-5~+40
Installation	Terminal size top/bottom for cable	mm 2	50
Installation	Terminal size top/bottom for cable	AWG	18-1/0
