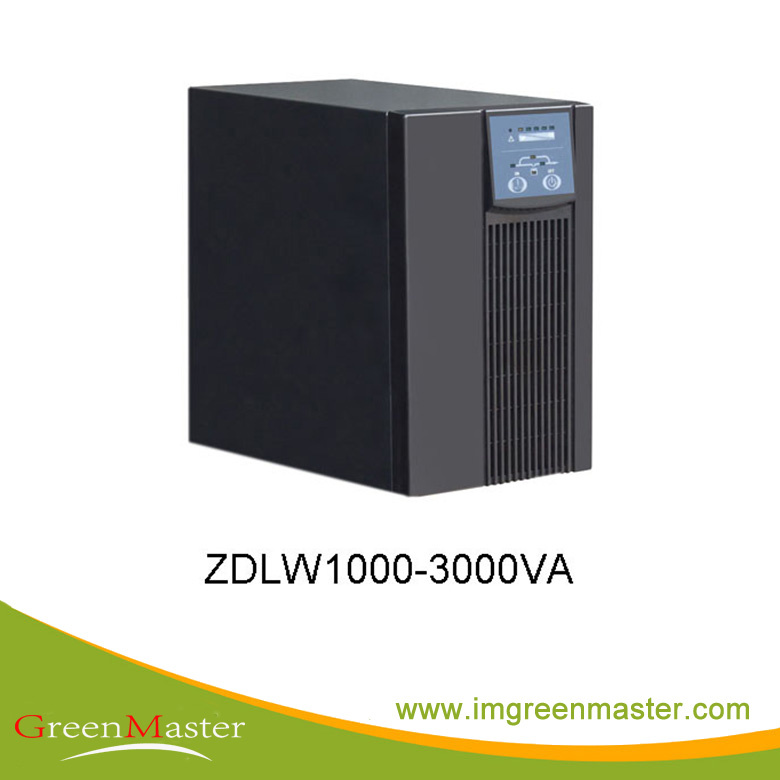

Zdlw 1-3K (s) Online Interactive UPS

Name: Zdlw 1-3K (s) Online Interactive UPS
Brand: all-electronics-online.com
SKU: 839523535
Availability: InStock
Rating: 4.3 (36 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZDLW Series
Size:	402190326
Phase:	Single Phase
Type:	Line Interactive
Protection:	Overcurrent
Classification:	UPS
Standby Time:	Standard/Long Backup
Output Capacity:	1kVA/2kVA/3kVA
Brand:	Greenmaster

Product Description

Zdlw 1-3k (s) Online Interactive UPS

Key features:

1. Low frequency onLine interactive Pure sine wave UPS

2. 1KVA,2KVA,3KVA, Capacity , PF=0.8

3. Pure sine wave output , 5-10% adjustable output precision under Line Mode

4. Hot replace battery , Battery self-check,Temperature compensation charger

5. Acquiescent RS232 communication , USB and SNMP Communication option

6. Automatic self-detection on startup

7. Unattended management function

8. Provide lightning, surge, and overload and short-circuit protection.

9. Cold start function (DC power on).

10. Auto transfer, the typical transfer time 4Ms

Technical Specifications

Model		ZDLW1K(S)	ZDLW2K(S)	ZDLW3K(S)
Rated Capacity		1000VA/800W	2000VA/1.6KW	3000VA/2.4KW
Input	Voltage	140-280V or 70-140V ±5V
	Frequency	45~65Hz
Output	Voltage	220V or 110V , ±5-10% adjustable under AC Mode ,
	Frequency	50/60±0.5HZ
	Waveform	sine wave
Current Crest Ratio		3:01
Harmonic distrotion		3% THD( Line load ), 6% THD (non-linear load
Protection		Over Voltage; Low-Voltage; Short Circuit, Over Temp, Over load,Low Battery Voltage
DC voltage		24VDC(Option 36V)	72VDC(Option 96V)	72V/96VDC
Charge Current	1K-3K	Max 3Amp
	1KS-3KS	Max 8AMP(default value 3AMP)
Battery	Battery Type	Valve controlled maintenance free sealed lead-acid battery
	1K-3K	212V/7AH (Option 312V/7AH)	612V/7AH (Option 812V/7AH)	6*12VDC/9AH
	1KS-3KS	24V External (Option 36V)	72V External (Option 96V)	96VDC External
backup time	1K-3K
Recharge time	1K-3K	5-6 hours to 90%
Transfer Time(ms)		Typical 4MS,Max 10MS
Overload Protection		120%-150% 10 seconds,150% load hold 1 second
Alarm		Bat mode 4 times/Mins, battery low,UPS beeping once second,Overload, battery Fault
Communication Interface		Acquiescent RS232 communication , USB and SNMP Communication option
Surge protection		yes
Display	LED	Line,Battery,Fault,Battery Rate,Load Rate
	LCD	IP/OP VAC HZ, BAT VDC % , LOAD % W , BAT LINE BYPASS MODE,ºC
Product size	WxDxH (mm)	355145225	402190326	402190326
Package size	WxDxH (mm)	497497365/2PCS	595340490	595340490
Packing Weight (1-3KK/ 1-3KS) (KG)		29/22 (2PCS)	34/15	36/16
REMARK		ZDLWK --- Standard Type, ZDLWKS---- Long Time Type.

Product Show:

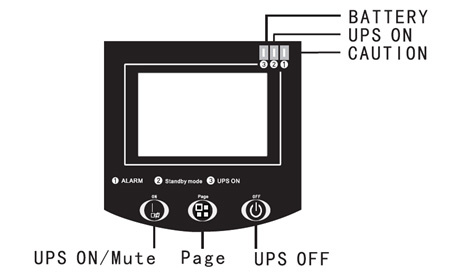

LED MODE DISPLAY

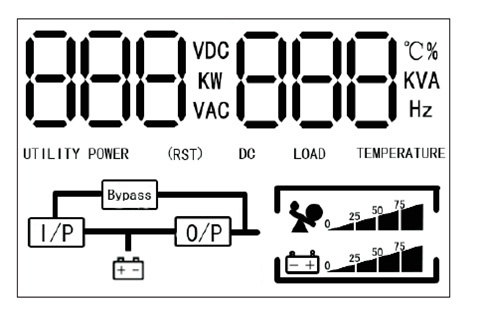

LCD Mode Display
