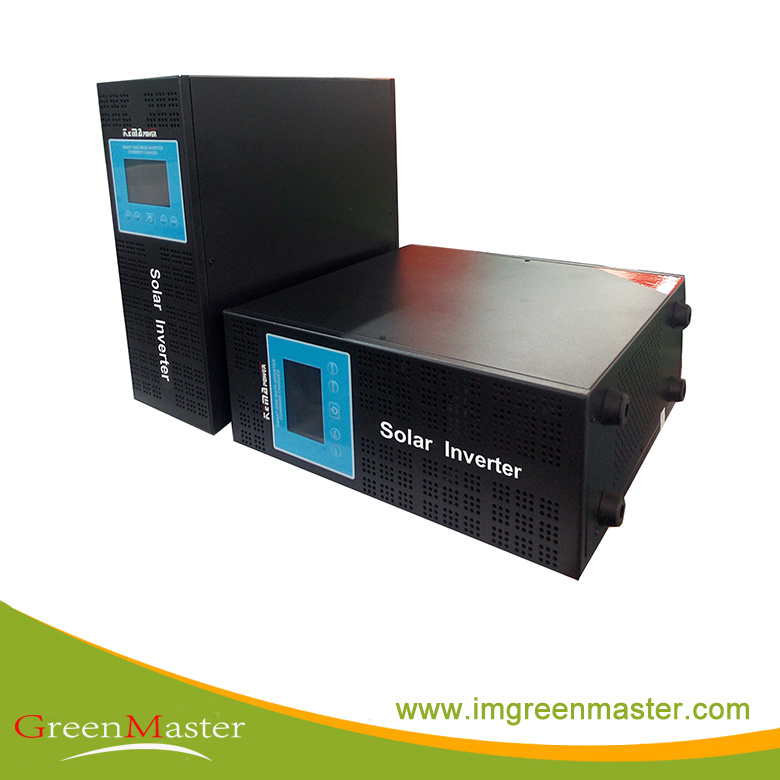

Zysw600t-800t Low Frequency Sine Wave Home UPS

Prod Model:	ZYSW600T-800T
Product Name:	Zysw600t-800t Low Frequency Sine Wave Home UPS
Power Source:	Electric Power
Output Power:	600-800va
Nature Of Wave String:	Sine Wave Inverter
Nature Of Source Flow:	Passive Inverter
Protection:	Overvoltage
Phase:	Single
Type:	DC/AC Inverters
Classification:	Inverter with Charger
Brand:	Greenmaster

Product Description

ZYSW600T-800T Low Frequency Sine wave HOME UPS

*I/P: 220VAC or 110VAC,O/P:220VAC or 110VAC

*12VDC For 500VA/800KVA/1KVA/1.5KVA ,0.8PFor 24VDC 1.5KVA,0.8PF

*Smart Charging 15-20Amp,Off Charging function

*Adjustable charge current or adjusted input Range

*Silence setup and Cooling Fan with speed control

*Auto-restart when AC resume

*USB Communication is option


Key Features:

1.LCD low frequency pure sine wave inverter with charger

2.Pure sine wave output with AVR

3.Adjustable charge Current.

4.Selectable Battery type

5.Adjustable 10A /20A Grid charge current

6.Selectable 145-270V or 100-290V input range

7.OFF charging function,charging while off

8.Auto transfer time 10 Ms.

9.Auto-restart and self-testing when AC resume

10.protection for overload,short-circuit,Bat Low protection


Technical Specifications


Model		ZYSW600T	ZYSW800T
Maximum Output Power(W)		600VA	800VA
		500W	800VA
Input	Voltage	UPS MODE 145-270V or Inverter Mode 100-290V
	Frequency	45Hz~65z
Output	Voltage	UPS.mode:203-238±5(Vac) INV.mode:150-255±5(Vac)
	Frequency	50Hz/60HZ ±5Hz (DC mode)
Output Waveform		sine wave
General Protection		Output Short; Over Voltage; Low-Voltage; Power Utility Short; Low Battery Voltage
DC voltage		12VDC	12VDC
Charge Current		Max 20AMP , Selectable by Monitor
Battery Type		selectable by LCD monitor
Transfer Time(ms)		Max 10MS
Over load		< 150% overload:No beed, > 150% overload :1beep per second
Alarm		battery low,LCD type beeping every 0.5second, when overload:UPS beep every 0.5second
Communication Interface		USB communication option.
Surge protection		yes
LCD Display		I/P O/p vac hz, bat % , load %, input range / battery type /charge current/  solar charge vdc amp ,  fault , over temp
Product size	W*D*H (mm)	290*307*123	290*307*123
CTN size	W*D*H (mm)	355*380*233	355*380*233
CTN Weight (Gross/Net) (KG)		8/7.3	11.01/10.3
