1/2core LSZH G657A2 Indoor Drop Cable Optical Fiber Cable with Strengthen Member
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
1/2core Drop Cable |
| Application: |
Medicine |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC-SC |
| Certification: |
ISO9001 |
Product Description

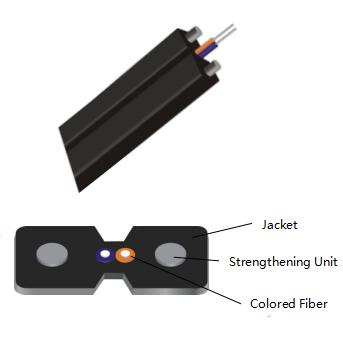

Indoor Optical Fiber Cable
FTTH Fiber Cable
Feature:Adopt fiber with small bending radius (G.657), offering good bending resistance;Adopt all-dry structure and fiber with small bending radius, offering good bending resistance;Easy cable stripping without need of tools, easy cable fixation and low cost of installation. Application:As FTTH cable,for indoor horizontal and vertical cabling;Indoor cabling under carpet and along corner.
Characteristics: | Outer diameter(mm) | 3.1x1.9(2) | 4.0x2.0(4) |
| Nominal Weight(kg/km) | 9.0 | 11 |
CrushResistance
(N/100mm)Long/Short term | 300
1000 | 300
1000 |
Tensile Strength(N)
Long/Short term | 200
600 | 200
600 |
Min.Bending
Radius(mm) | Dynamic | 20H |
| static | 10H |
| Temperature Range | -20ºC-70ºC |
Order Information:
| Fiber Core | Fiber Type | Count | Cable OD | reinforcer | Fiber Jacket | Jacked Color |
1=G652D
2=G657A1
3=G657A2
4=50/125
5=62.5/125
6=OM3
7=OM4
X=other | S=simplex
Z=zipcord Duplex
Y=Round Duplex
F=Flat Duplex
B=Breakout
D=Distribution
R=Ribbon
A=Armored
W=Waterproof
X=other | 001=1 core
002=2 cores
003=3 cores
024=24 cores
XXX=other | 01= 0.9mm
02=2.0mm
03=3.0mm
04=2.9*6.0mm
05=1.9*3.1mm
06=4.2*7.6mm
07=9.0mm
08=11.2mm
09=4.0*7.0mm
XX=other | 1=Kevlar
2=FRP
3=Armoured steel tape
4=Steel wire
5= Armoured steel tape & Steel wire
| PR=PVC-OFNR
PP=PVC-OFNP
LH=LSZH
PE=PE
PU=TPU
LN=Nylon
HT=Hytrel
xx=other | 01=Blue 02=Orange
03=Green 04=Brown
05=Slate 06=White
07=Red 08=Black
09=Yellow 10=Violet
11=Rose 12=Aqua
13=12 Color
XX=Other |
----------------------------------------------------FAQ--------------------------------------------------- Q1. Can I have a sample order for this product? What' MOQ of it?A: Yes welcome send sample order for test. MOQ is 1 piece. Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks. Q3: What' s the payment termA: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable. Q4. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5:
What' s the freight of it? A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you. Q6: Do you offer guarantee for the products?A: Yes, we offer 1-2 years warranty according to different products. Q7:
What action will you take if there are some product problems?A: If there are defective ones in the batch of products, we will offer spare ones for.
OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.
Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.
In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.
Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
