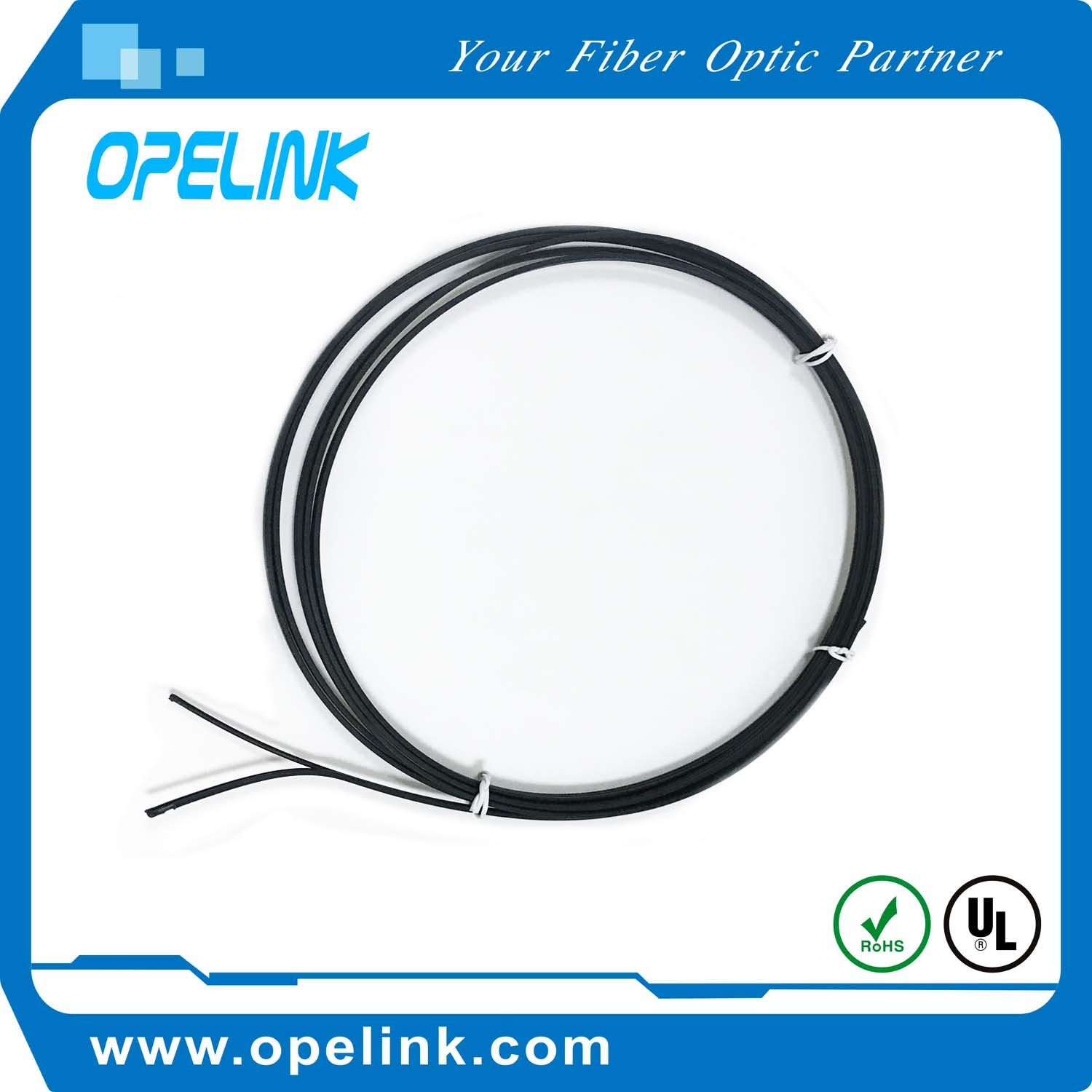

Round FTTH 1 Core Optcial Fiber Cable Drop Cable with Massager
| Price: |
Negotiable/Meter |
| Min Order: |
10000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LC-LC Optcial Drop Cable with Massager |
| Nominal Weight: |
9kg, 11kg |
| Crush Resistance: |
300~1000 |
| Tensile Strength: |
200~600 |
| Temperature Range: |
-20~70 Degree |
| Cable Shape: |
Flat, Round |
| Reinforcement: |
Metal, FRP |
| Fiber Jacket: |
PVC, LSZH |
| Jacket Color: |
White, Black |
| Fiber Core: |
G652D, G657A1, etc |
| Count: |
1 Core, 2 Cores, 12 Cores. etc. |
| Application: |
Medicine |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
Product Description

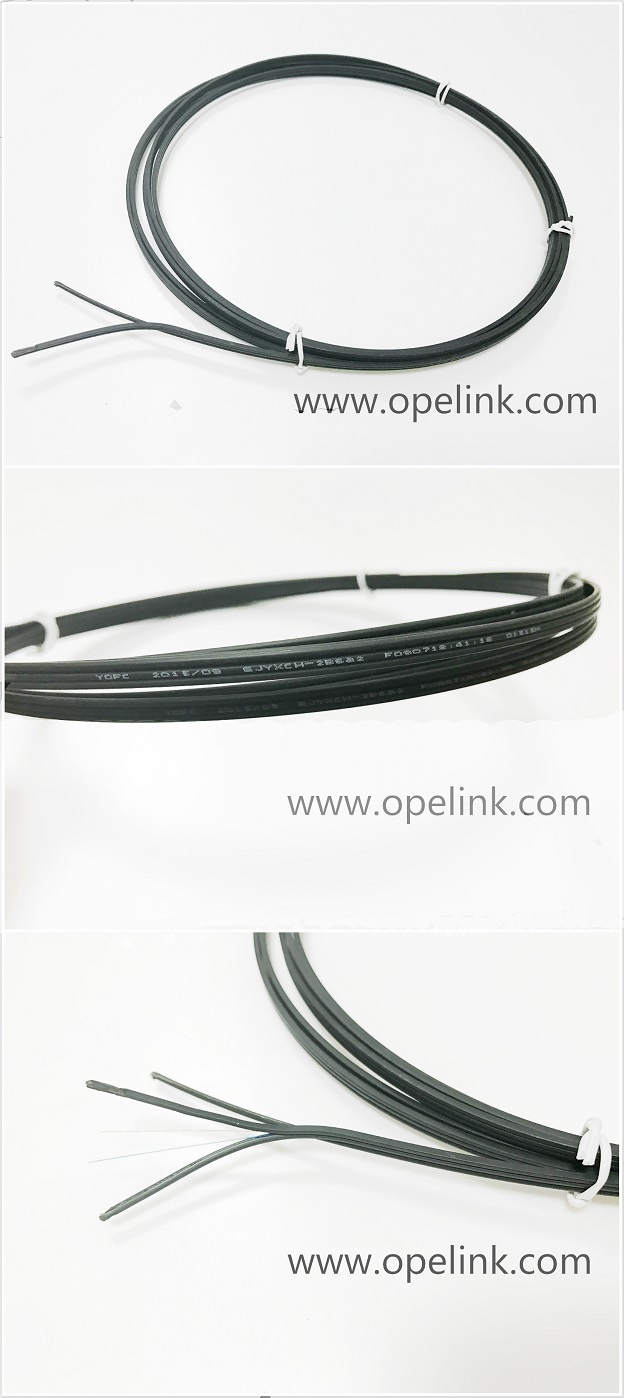

Round FTTH 1 Core Drop Cable
Optcial Fiber Cable with Massager
Fiber Parameters: | | | Items | | | Specification |
| No. | | | Unit | |
| | | G.657A1 |
| | | | | |
| | | | | | | | |
| 1 | Mode Field Diameter | | 1310nm | μm | 9.0±0.4 |
| | | | |
| | 1550nm | μm | 10.1±0.5 |
| | | | | |
| | | | | | | |
| 2 | Cladding Diameter | | μm | 124.8±0.7 |
| | | | | | | |
| 3 | Cladding Non-Circularity | | % | ≤0.7 |
| | | | | | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| | | | | | | |
| 5 | Coating Diameter | | μm | 245±5 |
| | | | | | | |
| 6 | Coating Non-Circularity | | % | ≤6.0 |
| | | | | | |
| 7 | Cladding-Coating Concentricity | μm | ≤12.0 |
| Error | | | | |
| | | | | | | |
| | | | | | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| | | | | | | | |
| 9 | Attenuation(max.) | | 1310nm | dB/km | ≤0.35 |
| | | | |
| | 1550nm | dB/km | ≤0.21 |
| | | | | |
| | | | | | | |
| 10 | | |
1turn×10mm radius @1550nm | dB | ≤0.75 |
Macro-Bending Loss
| | | | | | |
| |
1turn×10mm radius @1625nm
| dB | ≤1.5 |
| | |
| | | | | | | | |

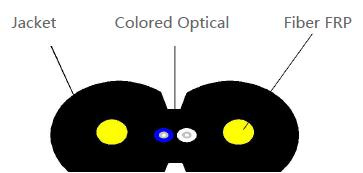

| Items | | Specifications |
| | | |
| Fiber Count | 1 |
| | | | |
| | | Dimension | 250±15μm |
| Colored Coating Fiber | | | |
| | Color | white |
| | | | |
| | | Dimension | (2.0±0.1)mm×(3.0±0.1)mm |
| | | |
| | Material | LSZH |
| Jacket | |
| | | |
| | Color | Black |
| | |
| Strength Member | FRP |
| | | | |
Mechanical and Environmental Characteristics: | Items | Unite | Specifications |
| | | |
| Tension(Long Term) | N | 100 |
| | | |
| Tension(Short Term) | N | 200 |
| | | |
| Crush(Long Term) | N/10cm | 1000 |
| | | |
| Crush(Short Term) | N/10cm | 2200 |
| | | |
| Min. Bend Radius(Dynamic) | mm | 30 |
| | | |
| Min. Bend Radius(Static) | mm | 15 |
| | | |
| Operating Temperature | ºC | -20~+60 |
| | | |
| Storage Temperature | ºC | -20~+60 |
| | | |
----------------------------------------------------FAQ--------------------------------------------------Q1. Can I have a sample order for this product?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order?A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product?A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production. Q6: Do you offer guarantee for the products?A: Yes, we offer 1-2 years warranty to our formal products.
OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.
Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.
In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.
Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
