| Prod Model: |
MPO-LC harness patch cord |
| Connector Type: |
MPO/MTP,LC |
| Cable Diameter: |
0.9mm |
| Fiber Type: |
Om3-150 |
| Fiber Length: |
1-30m |
| Cable Color: |
Aqua |
| Jacket: |
LSZH |
| Fiber Count: |
12/8 |
| Connector Shape: |
Male or Female |
| Application: |
Medicine |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
MPO |
| Brand: |
Opelink or OEM |
| Sheath Material: |
LSZH |
Product Description

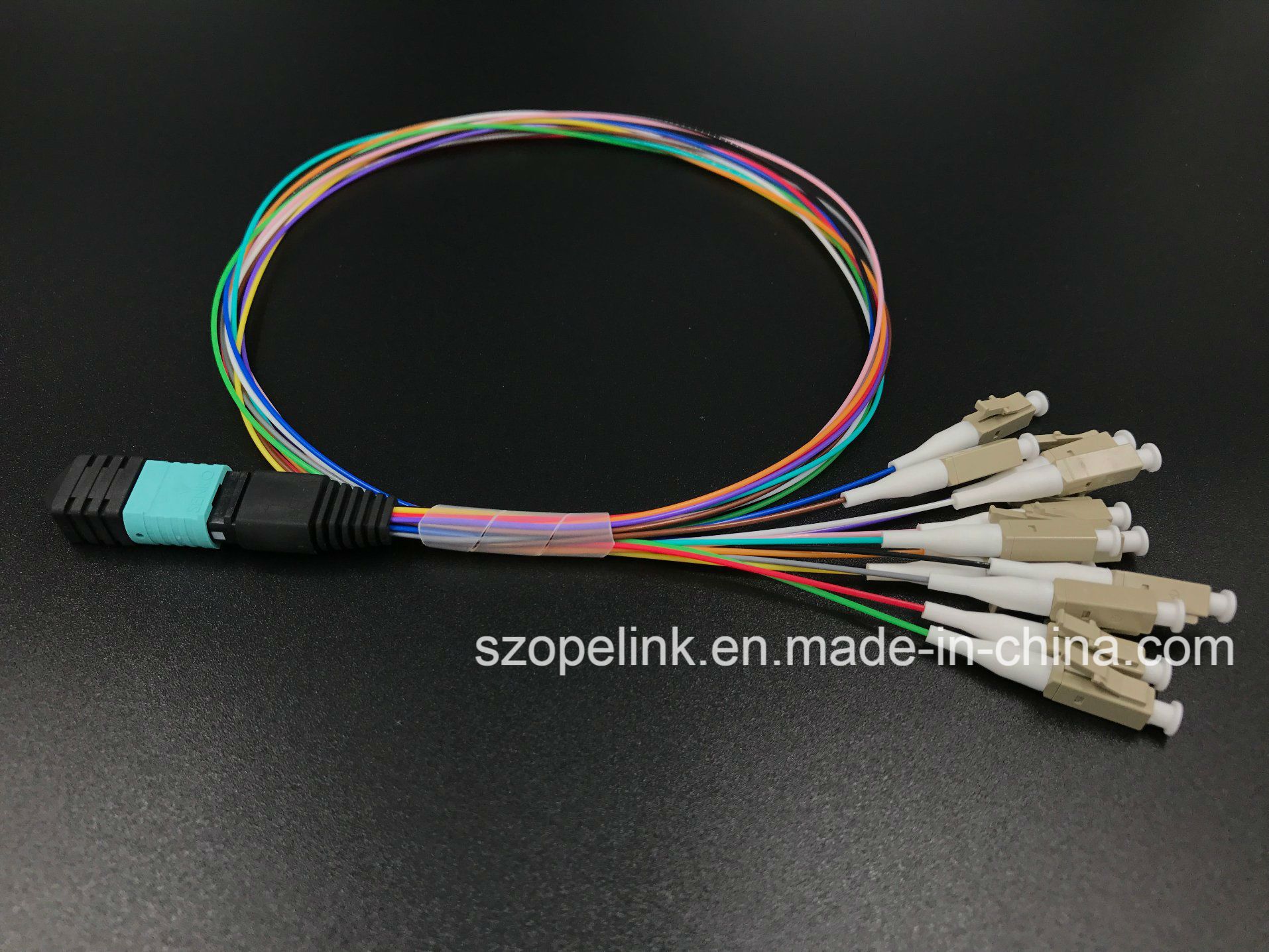

Fiber Optic MPO-LC harness patch cord 12 fiber OM3 QSFP QSFP28
Features:
Low insertion loss and High Return Loss
Good durability
Good exchangeability
High temperature stability
compliant with standards of Telcordia GR-326-CORE
Application:
Optical Fiber Communication Systems
Optical Access Network
Fiber optic data transmission
Optical Fiber CATV
Local Area Network (LAN)
Test Equipment
Description:
Connector:MPO/MTP. SC,FC,ST,LC,MU,MTRJ,E2000, etc
Polishing type:PC,UPC,APC
Fiber core:Singlemode(G652D,G657A)Multimode (50/125,62.5/125, OM3.OM4)
Fiber cable:Simplex,Duplex,Multi-core,Ribbon,Distribution, Armoured, etc
Cable OD:0.9mm,2.0mm,3.0mm,etc
Cable Material:PVC-OFNR,PVC-OFNP,LSZH, etc
Patchcord Length:1m,2m,etc
Specifications:
Table1. MPO/MTP END | ITEM | Standard | Low Loss |
| Single mode | Multimode | Single mode | Multimode |
| I.L typical | 0.35dB | 0.35dB | 0.2dB | 0.2dB |
| I.L Max. | 0.7dB | 0.7dB | 0.35dB | 0.35dB |
| R.L | UPC | ≥50dB | ≥20dB | ≥50dB | ≥20dB |
| APC | ≥60dB | ≥30dB | ≥60dB | ≥30dB |
| Operating temperature | -20ºC~75ºC |
| Storage temperature | -40ºC~75ºC |
Table2. General Connector (SC.FC.LC,ST,etc.)
| ITEM | SM/MM Patchcord |
| Polishing Type | UPC | APC |
| I.L | <=0.3dB,MTRJ<=0.5dB | <=0.3dB |
| R.L | >=50dB,MTRJ>=30dB | >=60dB |
| Operating temperature | -20ºC~75ºC |
| Storage Temperature | -40ºC~75ºC |
| 100 mating cycles loss | I.L changed≤0.1dB |
| Durability | >1000 cycl |
Ordering information:
| Type | Fiber Core | Cable Type | Cable OD | Cable Material | Cable
Color | Connector
(A End -B End) | Patchcord
Length |
PT=Patchcord
PY=Pigtail | S1=G652D
S2= G657A1
M1=50/125
M2=62.5/125
M3=OM3
M4=OM4
S7=G657A1
S8=G657B3
XX=other | 01=simplex
02=Duplex
03=Armoured
04=Distribution
05=Ribbon
06=breakout
07=drop cable
XX=other | L=0.9mm
2=2.0mm
3=3.0mm
XX=other
| 1=PVC
2=LSZH
| 01=Blue 02=Orange
03=Green 04=Brown
05=Slate 06=White
07=Red 08=Black
09=Yellow 10=Violet
11=Rose 12=Aqua
13=12Color XX=other | SU=SC/UPC SA=SC/APC
FU=FC/UPC FA=FC/APC
LU=LC/UPC LA=LC/APC
ST=ST/UPC
MPO=MPO/PC MPA=MPO/APC
00=NONE
XX=
| 0.5M=0.5M
10M=10M
XXX=other
|
