Fiber Optic FTTH Drop Cable with Messenger

Name: Fiber Optic FTTH Drop Cable with Messenger
Brand: all-electronics-online.com
SKU: 690259491
Availability: InStock
Rating: 4.4 (150 reviews)

Price:	Negotiable/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

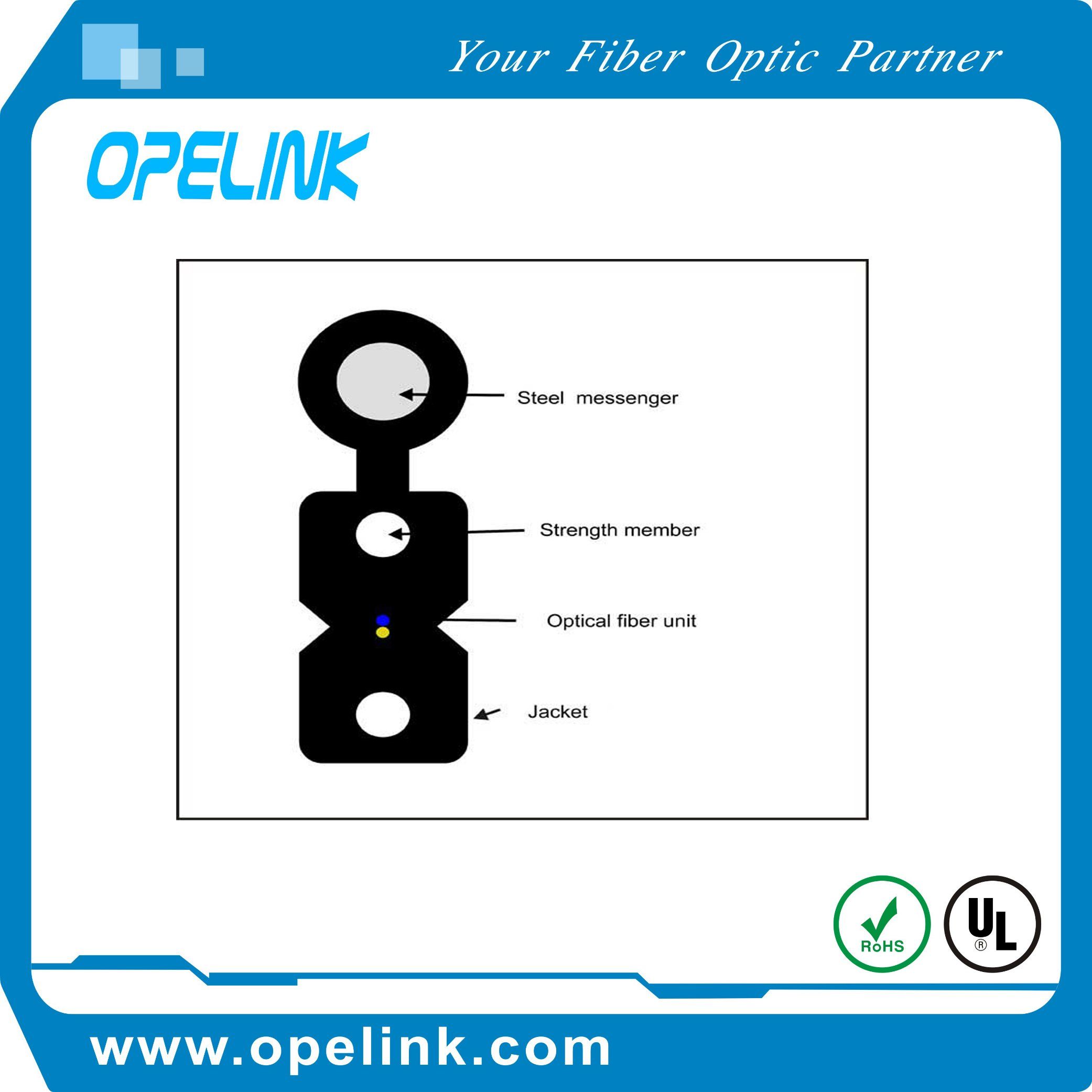

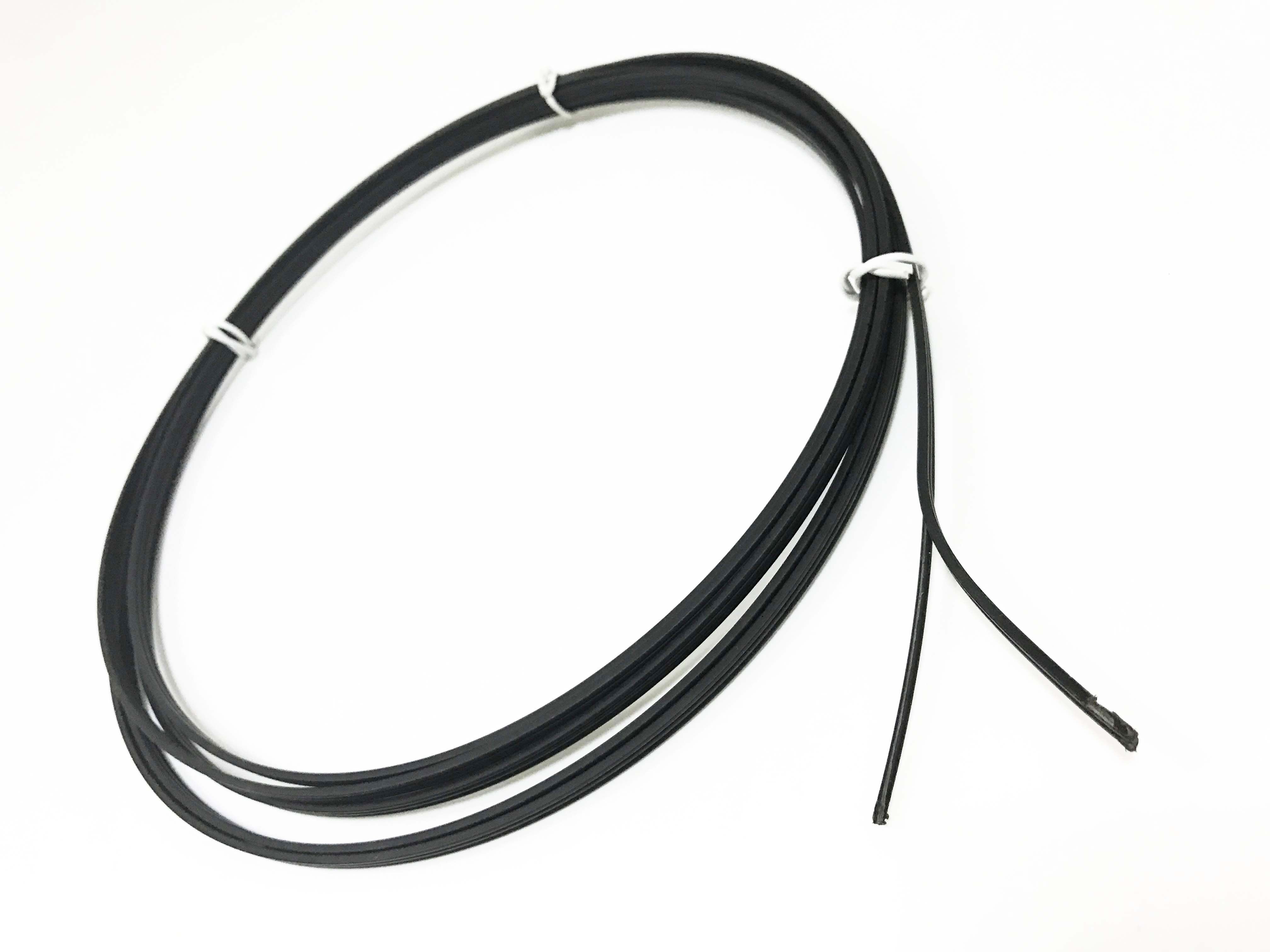

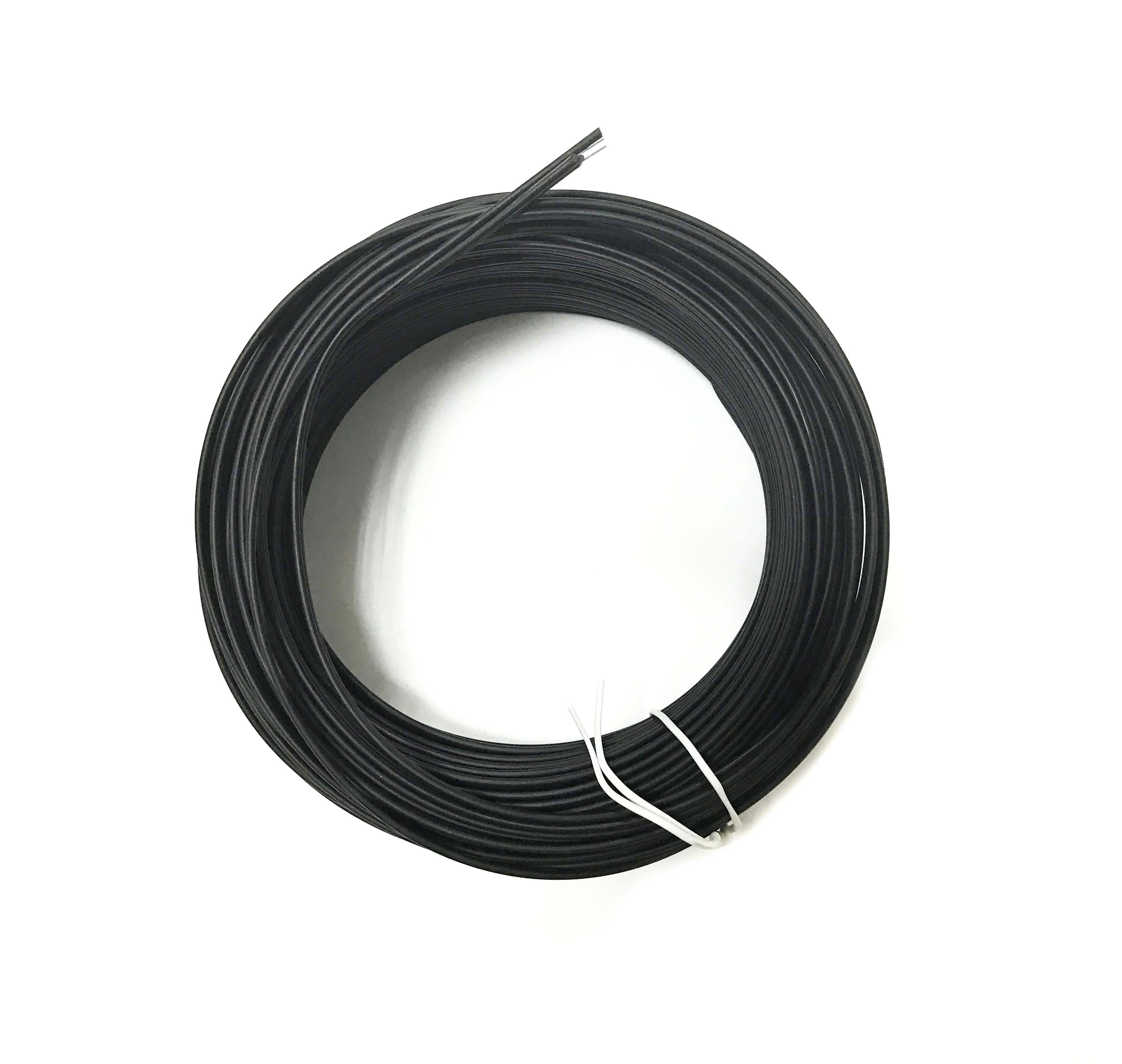

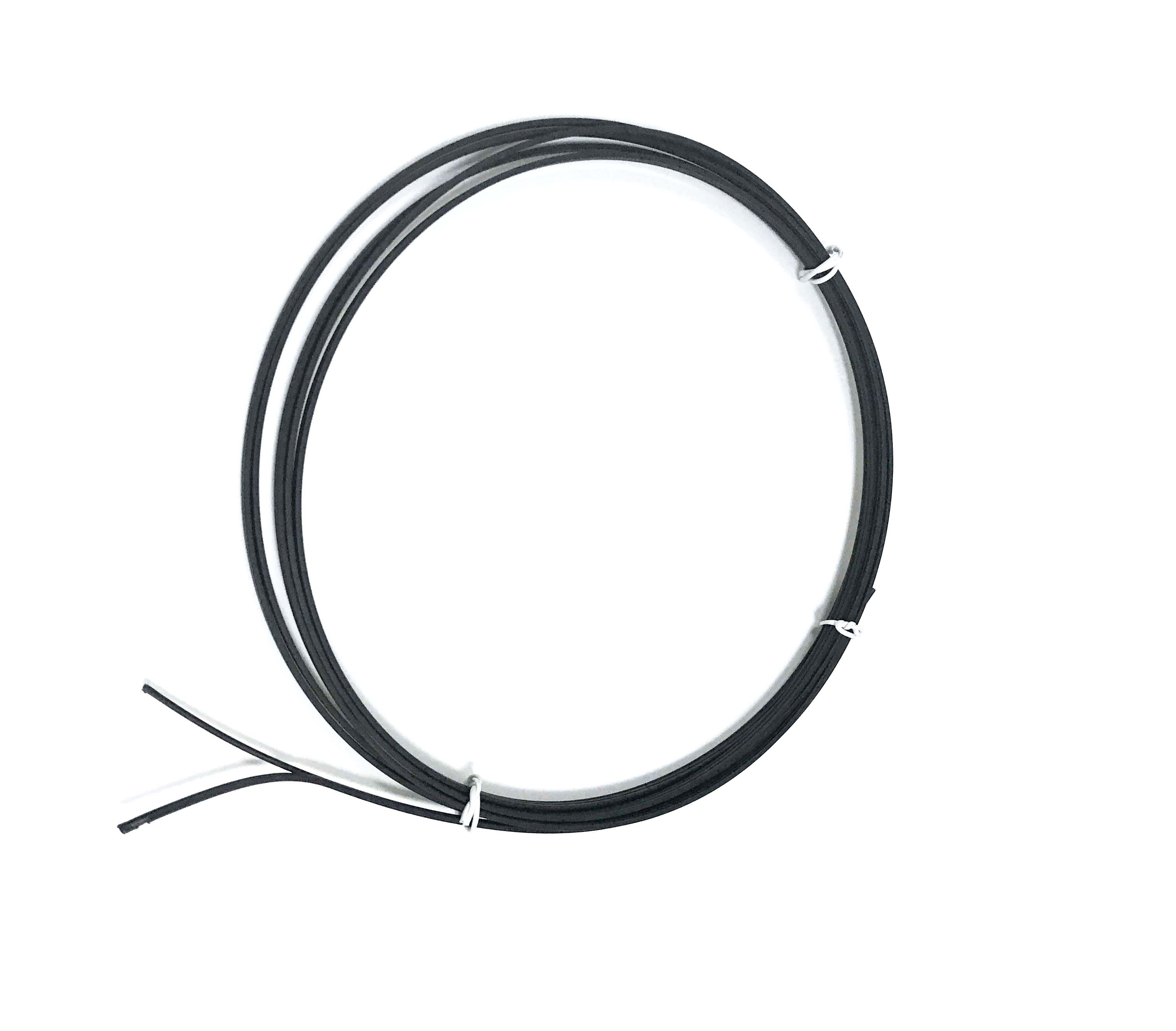

Fiber optic FTTH drop cable with Messenger

Feartures:

Adopt fiber with small bending radius (G.657),
offering good bending resistance;
Adopt all-dry structure and fiber with small bending radius,
offering good bending resistance;
Easy cable stripping without need of tools, easy cable fixation
and low cost of installation.

Application:
Suitable as cable extending from outdoor (as aerial cable) to indoor;

Technical Parameters:

Outer diameter(mm)		5.2x2.0(2)	6.0x2.0(4)
Nominal Weight(kg/km)		20.0	21
Crush Resistance (N/100mm)Long/Short term		300 1000	300 1000
Tensile Strength(N) Long/Short term		200 600	200 600
Min.Bending Radius(mm)	Dynamic	30H
	static	15H
Temperature Range		-20ºC-70ºC

Order Information:

Fiber Core	Fiber Type	Count	Cable OD	reinforcer	Fiber Jacket	Jacked Color
1=G652D 2=G657A1 3=G657A2 4=50/125 5=62.5/125 6=OM3 7=OM4 X=other	S=simplex Z=zipcord Duplex Y=Round Duplex F=Flat Duplex B=Breakout D=Distribution R=Ribbon A=Armored W=Waterproof X=other	001=1 core 002=2 cores 003=3 cores 024=24 cores XXX=other	01= 0.9mm 02=2.0mm 03=3.0mm 04=2.96.0mm 05=1.93.1mm 06=4.27.6mm 07=9.0mm 08=11.2mm 09=4.07.0mm XX=other	1=Kevlar 2=FRP 3=Armoured steel tape 4=Steel wire 5= Armoured steel tape & Steel wire	PR=PVC-OFNR PP=PVC-OFNP LH=LSZH PE=PE PU=TPU LN=Nylon HT=Hytrel xx=other	01=Blue 02=Orange 03=Green 04=Brown 05=Slate , 06=White 07=Red 08=Black 09=Yellow 10=Violet 11=Rose 12=Aqua 13=12 Color XX=other

----------------------------------------------------FAQ---------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.

Prod Model:	Fiber optic FTTH Drop Cable With Messenger
Fiber Core:	G652D, G657A1, etc.
Fiber Type:	Simplex, Duplex etc.
Fiber Count:	1core, 2 Cores, 3 Cores, 24c Cores
Cable Od:	0.9mm, 2.0mm, 3.0mm, etc.
Reinforcer:	Kevlar, FRP, Armoured Steel Tape
Fiber Jacket:	PVC-Ofnr, PVC-Ofnp LSZH,
Jacked Color:	Blue, Orange, Green, White etc.
Crush Resistance:	300~1000
Tensile Strength:	200~600
Temperature Range:	-20~70 Degree
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CCC

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
