| Prod Model: |

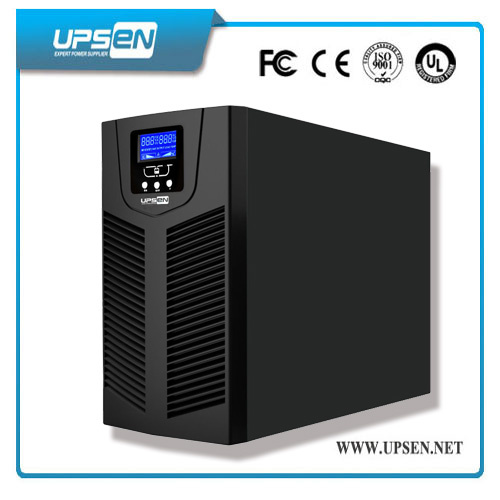

High Frequency Online UPS 1K-200Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
10~30kgs |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Over Load/ Current/Voltage, Short Circuit |
| Application: |
Computers, Data Rooms, Communications, Servers |
| Brand: |
Upsen |
Product Description
UPS Quick View1: High Frequency UPS with single phase 220V / 230V / 240Vac or Three Phase 380 / 400 / 415Vac Input and Output, above 80Kva is High Frequency Modular UPS Model
2: Online UPS with adjustable frequency 50HZ 60HZ through LCD Panel
3: Smart UPS with 0.8 output power factor
4: UPS Power Supply with DSP and IGBT Tech
On Line UPS 1K - 20Kva Key Features1: True double-conversion on line UPS
2: DSP technology guarantees high performance
3: Output power factor 0.8
4: Active input power factor correction 0.99
5: Wide input voltage range (110-300 VAC)
6: 50Hz/60Hz frequency converter mode
7: Standard backup UPS and long backup UPS in one integrated unit
8: Adjustable battery number from 16 pcs to 20 pcs
9: Adjustable charging current via LCD or software (0.5A~6A)
10: 3-stage extendable charging design for optimized battery performance
11: Maintenance bypass available
12: RJ11, RJ45, SNMP/USB/RS-232 communications
Single Phase HF UPS 1K 2K 3KVA Technical Specification| MODEL | Q1K | Q1KL | Q2K | Q2KL | Q3K | Q3KL |
| Rated capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W |
| Input | Voltage | 115 - 300Vac |
| Frequency | 40-60Hz / 50-70Hz |
| Power factor | 0.99 |
| Output | Voltage | 220/230Vac(1±2%) |
| Frequency | Synchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode) |
| On-load factor | 0.8 |
| Overload rating | 125% overload,1min |
| Battery | Type | Valve-control lead acid maintenance-free battery |
| Back up time | > 11min (half load) | External | >11min (half load) | External | >11min (half load) | External |
| Rated voltage | 36V | 72V | 96V |
| Transfer time | 0 |
| Operating environment | Humidity: 20%-90%, Temperature:0oC-40oC |
| Size (WxDxH)mm | 350 x 144 x 229 | 424 x 190 x 328 | 424 x 190 x 328 |
| Net Weight(kg) | 11.5 | 5.7 | 22.2 | 10 | 26.3 | 10 |
| *Specification is subject to change without further notice |
3 Phase HF UPS 10K - 80Kva Technical Specification | Model | ES3310 | ES3320 | ES3330 | ES3340 | ES3360 | ES3380 |
| Capacity/Rating Power | 10KVA/ 9KW | 20KVA/ 18KW | 30KVA/ 27KW | 40KVA/ 36KW | 60KVA/ 54KW | 80KVA/ 72KW |
| AC Input | Rated voltage | 190/208/220Vac Or 380/400/415Vac (Line-Line) | 380/400/415Vac (Line-Line) |
| Input connection | 3 phase +N+PE |
| Power factor | Above 0.99 |
| THDI | Less 5% |
| Voltage range | 150-270Vac or 280-480Vac(Line voltage) |
| Frequency | 40-70Hz |
| Bypass | 150-270Vac or 280-480Vac(Line-Line)+/- 15% |
| Output | voltage precision | ±0.5% |
| Dynamical | Less 5% ( 0~100% load step) |
| voltage transient |
| THDU | THD less 3% (linear load), 5%(non-linear load) |
| Power factor | 0.9 (lag) |
| Frequency tracking range | 50/60Hz±3Hz |
| Frequency precision | ±0.05%(Battery mode) , ±3hz(Line mode) |
| OUTPUT | phase displacement | 120±0.5°(Balance or imbalance load ) |
| Frequency tracking rate | Less 1Hz/s |
| Overload capability | 105% long time operation |
| 125%,transfer to bypass after 10 minutes |
| Above 150%, transfer to bypass after 1s |
| Bypass | Above 180%, long time operation |
| overload | Above 180%, last for 1s |
| Transfer time | 0ms |
| System |
| System efficiency | Above 92%;98%(ECO) mode |
| Display | Touch screen LCD+LED |
| EMC | IEC62040-2 |
| IEC61000-4-2 (ESD) |
| IEC61000-4-3 (RS) |
| IEC6100-4-4 (EFT) |
| IEC6100-4-5 (Surge) |
| Noise (1m) | Less 60dB |
| Insulating resistance | Above 2M (500VDC) |
| Insulating intensity | (input, output to PE) 2820Vdc, leakage current lower than 3.5mA, no flashover in 1min |
| Surge protection | Meet the requirement of IEC60664-1class,endure surge of 1.2/50us+8/20us higher than 6KV/3KA |
| IP class | IP30 |
| Battery configuration |
| Installation(DC) | 192/216/240Vdc or 384/432/480Vdc |
| Connection | Bottom cable connection in front |
| Charger | 20% Power capacity(Adjustable) |
| Dimension (W×D×H)mm | Long-run model | 500×717×798 | 720×900×1450 |
| Inbuilt batt. | 500×717×1150 | 500×717×1550 |
| Weight (Kg) | Long-run model | 40 | 65 | 95 | 100 | 240 | 260 |
| Inbuilt batt. | 125 | 175 | 255 | 295 |
| 32/36/40pcs*7AH/9AH or 72pcs*7AH/9AH |
UPSEN Competitive Advantages1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
