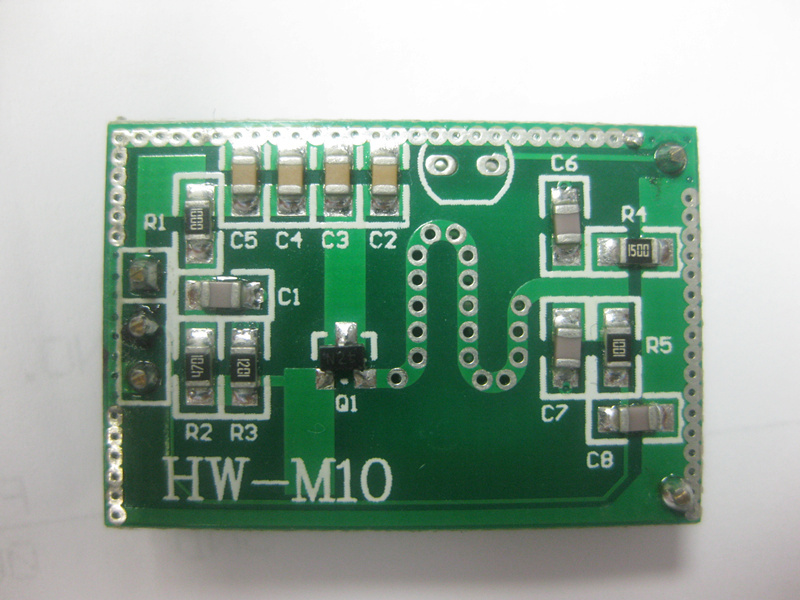

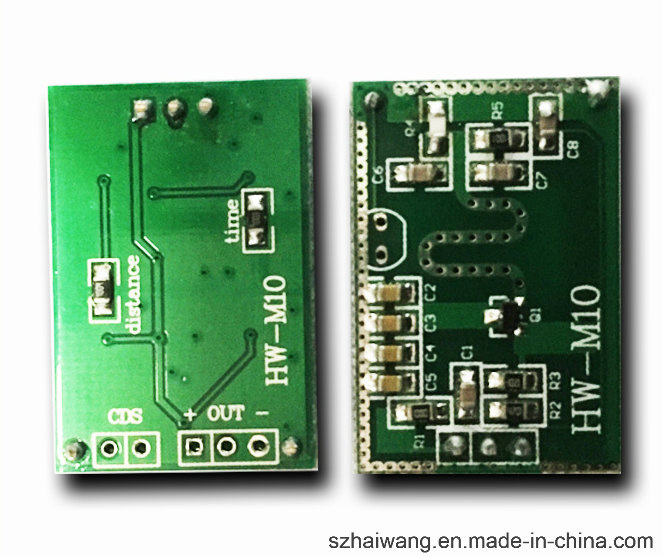

10.525GHz Microwave Sensor Module for T8 Tubes (HW-M10)

Name: 10.525GHz Microwave Sensor Module for T8 Tubes (HW-M10)
Brand: all-electronics-online.com
SKU: 784028245
Availability: InStock
Rating: 4.3 (24 reviews)

Price:	US $ 2-3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Microwave radar sensor module for led lighting with CE(HW-M10)

Detail:

This product is automatic induction control of doppler radar products.High penetrating signal

ability and strong anti interference performance.High sensitivity, long distance detect,

high reliability, big detect angle. Also the power supply voltage is range.It is widely used in all

kinds of human body induction lighting, anti-theft alarm situations.

HW - M10 uses planar antenna is the transmission and reception, as the active sensor. The sensor

transmit high frequency electromagnetic wave (10.525GHz) and receive echo. HW - M10

detecting changes in the echo inside even small movement. Then microprocessor triggers,

executes instruction . Signal can be detected through glass, doors or thin wall.

Features:

1.Strong anti-interference ability, stable performance, not influenced by environmental

temperature.

2 .Small size, simple installation. Quick response and high sensitivity.

3. Induction distance can also customize, the detection angle is 180 x 360

4 .Radar wave can penetrate non-metallic objects, such as wood, glass, plastic, fabric, etc

Warm note:

1.Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an

electric shock.

2,Avoid installed in the hot sun rain, to prevent damage or affect the lifetime.

3: Better install far away from the place of the magnetic field or the conductor to avoid wrong actions.

Advantage over pir module :

1.can detect through wooden,glass,plastic and so on.Except for metal items.

2.is the one with strong interference.not influenced by surroundings,temperature to savings energy.

3.can be installed inside the plastic box

Contact with us:
Jane Lee

Mob:0755-82867860 ext 812

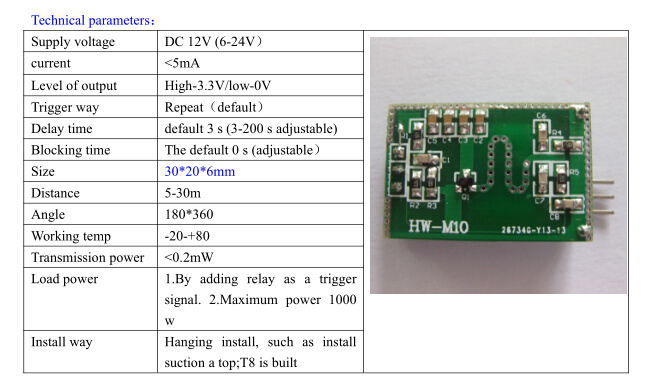

Prod Model:	HW-M10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	10.525GHz
Input Voltage:	6-24V
Output Voltage:	5V
Current:	<5mA
Distance:	Custom
Delay Time:	Custom
Size:	20306 mm
Color:	Green
Usage:	LED Lighting or Security Area
Metal Coating:	Tin
Mode Of Production:	SMT
Layers:	Double-Layer
Base Material:	FR-4
Customized:	Customized
Condition:	New
Certification:	Ce
