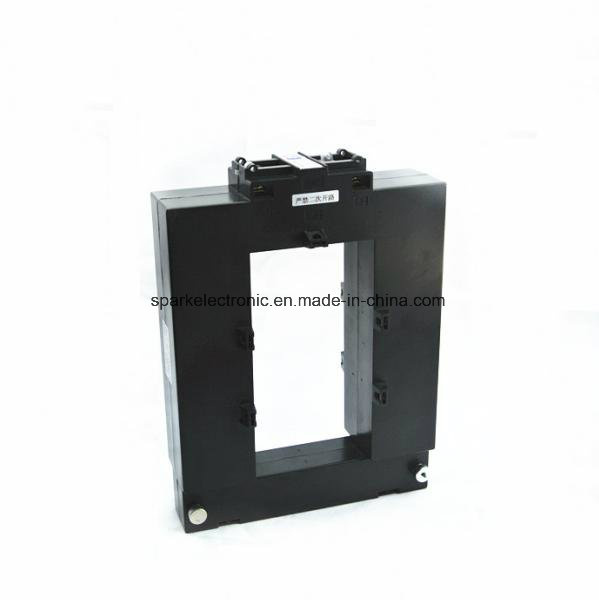

1000A/5A Clamp-on Cts Split-Core Cts Current Transformer

Name: 1000A/5A Clamp-on Cts Split-Core Cts Current Transformer
Brand: all-electronics-online.com
SKU: 837839625
Availability: InStock
Rating: 4.4 (84 reviews)

Price:	US $ 15-60/Piece
Min Order:	10/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DBP/DP
Color:	Black
Output:	5A
Accuracy:	0.5, 1.0
Frequency:	50/60Hz
Insulation:	3kv
Sensor:	Current Sensor
Transformer:	Current Transformer
Transducer:	Current Transducer
Certificate:	Ce
Phase:	Single
Application:	Power, Electronic, Instrument

Product Description

Jiangyin Spark is a professional manufacturer in China devoted in research, design, and production of Split Core(Clamp on) Current Transformer(CTs), Clip on Current Sensor, Split Core Current Transducer, High precision current transformer, and mini voltage transformer. Measure AC current from 1A to 5000A, Output can be 0.333V, mA, 1A and 5A.

Features Of 1000A/5A Clamp-On CTs Split-Core CTs Current Transformer
Small size, low cost
High secondary turns
Secure locking hinge

Datasheet Of 1000A/5A Clamp-On CTs Split-Core CTs Current Transformer
Rated primary current: 100 to 5, 000A AC
Rated secondary current: 5 or 1A AC
Rated load: 1, 2.5, 5.0, 10 and 30VA
Accuracy: 0.5, 1.0 and 3.0 class
Rated short-time thermal current (Ith): 20In
Rated dynamic current (Idyn): 2.5Ith
Highest voltage for equipment (Um): 720V AC RMS
Rated power-frequency withstand voltage: 3, 000V AC RMS
Frequency range: 50/60Hz
Operating temperature: -15 to 60° C
Split core design, safer, easy to install and portable
Accessories: Supplied with feet for base mounting if required
Applications:
Current, power, energy and monitoring devices
Relay protection devices
Power factor correction devices
Available in 5 standard sizes

Please contact me for more information by Skype

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.
