333mv Flexible Current Transformer Rogowski Coil Current Probe

Name: 333mv Flexible Current Transformer Rogowski Coil Current Probe
Brand: all-electronics-online.com
SKU: 737710935
Availability: InStock
Rating: 4.4 (45 reviews)

Price:	US $ 10-90/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

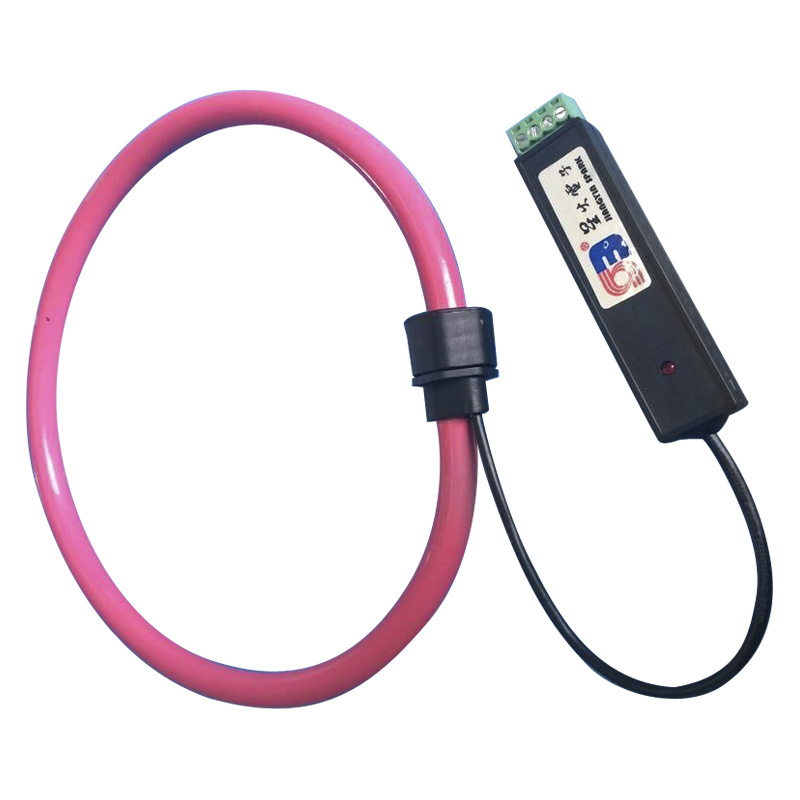

CE ROHS 0.333V Flexible Rogowski Coil Current probe

Jiangyin Spark FCT is flexible, like rope ,it is designed to use where solid or split core current transformers cannot fit Advantage including high accuracy, wide measurement and frequency range and very light weight.The probes comprise a flexible air-cored sensor which can be opened, allowing them to be installed around a primary conductor without interrupting the circuit. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas and with large conductors.

Specifications Of 0.333V Flexible Rogowski Coils Current Transformers

Rated current (rms)	10A-100KA
Output	mV (without integrator)
Output	0.333V,0-5V AC(with integrator)
Power supply	9V,15V,24V DC
Coil length	20cm-200cm
Tube	UL material
Wire lead	Shielded cable
Isolation voltage	3000V
Operating temperature	-25ºC-+70ºC
Frequency	50Hz-60Hz
Accuracy	±1%

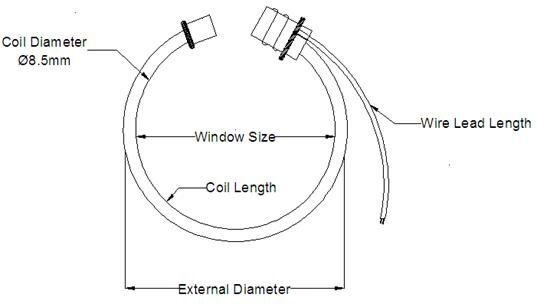

Drawing of 0.333V Flexible Rogowski Coils Current Transformers

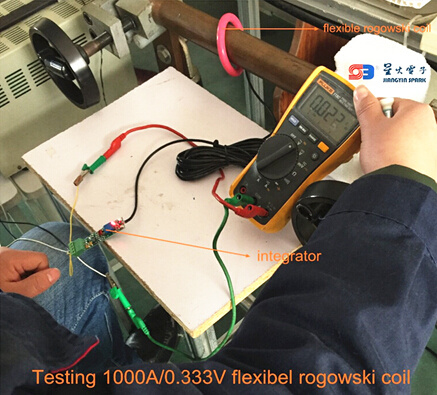

Test of Flexible Rogowski Coils

Hot sales Products

Prod Model:	RSCT-2000A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Rogowski Coil 2000A
Flex Rogowski Coil Output:	2000A/0.33V
Certificates:	RoHS,Ce,ISO9001
Insulation:	3kv
Frequency:	50/60Hz
Colour:	Black ,Red ,Blue

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
