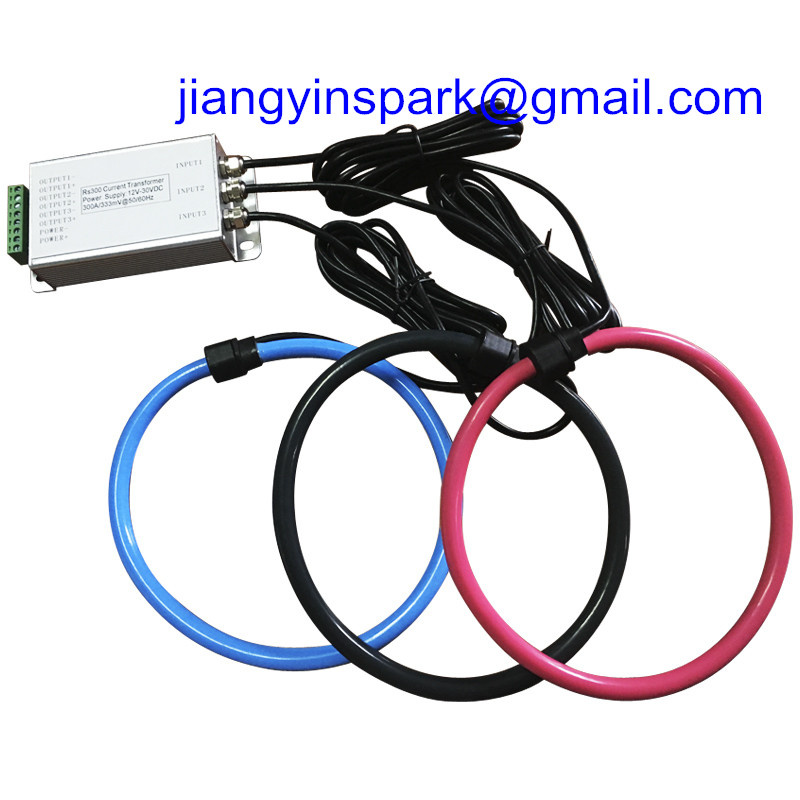

100A-100ka Three Phase Flexible Rogowski Coil 333mv
| Price: |
US $ 10-90/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Specifications Of 100A-100ka Flexible Three phase Rogowski Coil Current Transformer for Monitoring 333mvSplit Rogowski Coil current sensors are designed for fast and easy installation on existing primary conductors/ BUS bars. The split design permits non-contact AC current or current pulse measurement without requiring that the primary conductor be taken offline and disconnected for the current sensor installation. This method provides for the safe, easy and portable measurement of current. A current sensor that is based upon the Rogowski Coil principle offers significant advantages over the standard magnetic core current transformer products. Specifically, since the sensor does not incorporate a magnetic core, magnetic core saturation (the point where incremental increases in magnetic flux are not reflected in proportional increases in secondary signal outputs) is avoidedKey specifications Input current range:0-10000AOutput :Flexible Rogowski coils
0.333Vac,100mV/per 1000A, 0-5VacBandwidth :1Hz-1MHzAccuracy :≤±1%Response time :<10msAuxiliary power supply :6-24VDCCoil length :≤2mStatus indicator :LED lightStorage temperature range :-40ºC
-70ºC
Operating temperature range :-20ºC
-55ºC
Storage humidity range :10%-90% without dewOperating humidity range :10%-90% without dew| Rated current (rms) | 10A-100KA |
| Output | mV (without integrator) |
| 0.333V,0-5V AC(with integrator) |
| Power supply | 9V,15V,24V DC |
| Coil length | 20cm-200cm |
| Tube | UL material |
| Wire lead | Shielded cable |
| Isolation voltage | 3500V |
| Operating temperature | -25ºC-+70ºC |
| Frequency | 50Hz-60Hz |
| Accuracy | ±1% |

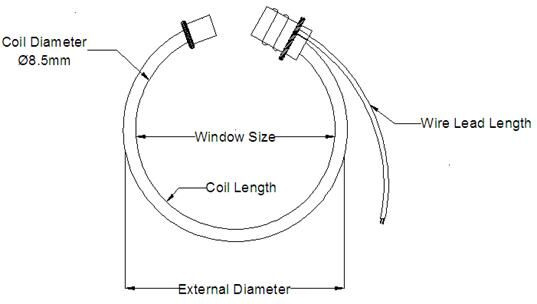

Drawing of 100A-100ka Flexible Rogowski Coil Current Transformer for Monitoring 333mv

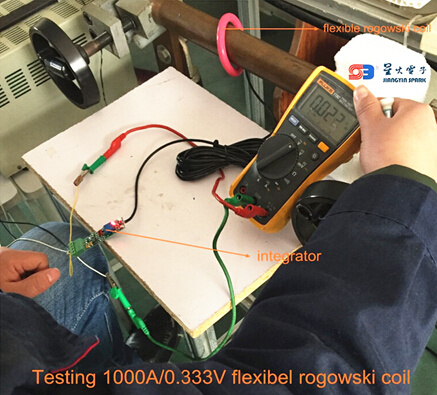

Test of Rogowski coil

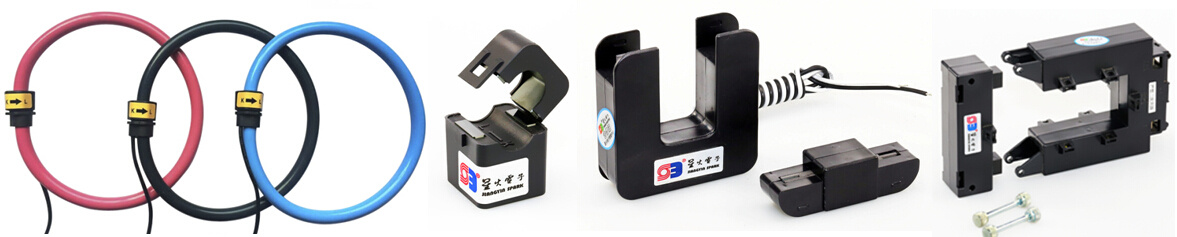

Hot sales Products
| Prod Model: |
XH-RCT, FCT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Flexible Current Transformers Rogowski Coil |
| Flexible Rogowski Coil Current Sensor: |
Ce ,RoHS |
| Colour: |
Black ,Red ,Blue |
| Output: |
0-0.333V AC or 0-5V AC |
| Integrator: |
Rogowski Coil with Integrator or Without |
| Insulation Strength: |
3kv |
| Frequency: |
50/60Hz |
| Phase: |
Three Phase |
