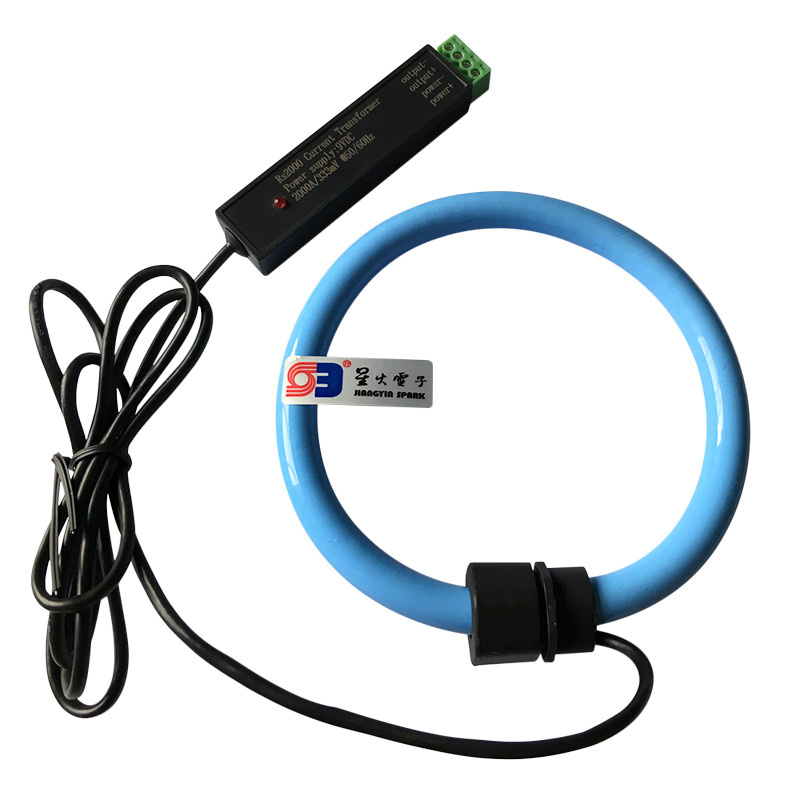

Split Core Flexible Rogowski Coil with high frequency

Split Rogowski Coil current sensors are designed for fast and easy installation on existing primary conductors/ BUS bars. The split design permits non-contact AC current or current pulse measurement without requiring that the primary conductor be taken offline and disconnected for the current sensor installation. This method provides for the safe, easy and portable measurement of current.
A current sensor that is based upon the Rogowski Coil principle offers significant advantages over the standard magnetic core current transformer products. Specifically, since the sensor does not incorporate a magnetic core, magnetic core saturation (the point where incremental increases in magnetic flux are not reflected in proportional increases in secondary signal outputs) is avoided

Key specifications

Input current range:0-10000A
Output :Flexible Rogowski coils 0.333Vac,100mV/per 1000A, 0-5Vac
Bandwidth :1Hz-1MHz
Accuracy :≤±1%
Response time :<10ms
Auxiliary power supply :6-12VDC
Coil length :≤2m
Status indicator :LED light
Storage temperature range :-40ºC-70ºC
Operating temperature range :-20ºC-55ºC
Storage humidity range :10%-90% without dew
Operating humidity range :10%-90% without dew

Rated current (rms)	10A-100KA
Output	mV (without integrator)
Output	0-5V AC(with integrator)
Power supply	9V-24V
Coil length	20cm-200cm
Tube	UL material
Wire lead	Shielded cable
Isolation voltage	3500V
Operating temperature	-25ºC-+70ºC
Frequency	50Hz-60Hz
Accuracy	±1%

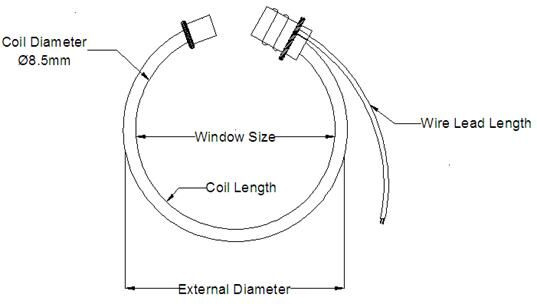

Drawing of Split Core Flexible Rogowski Coil:

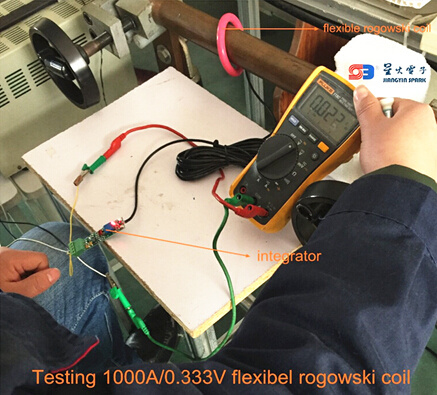

Test of Rogowski coil:

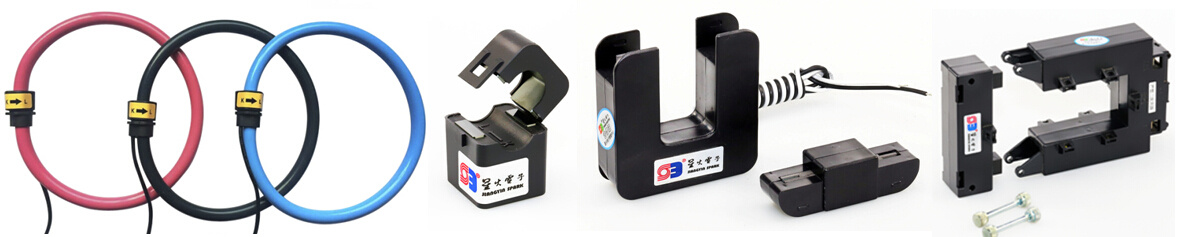

Our hot sales :

Contact details:

Prod Model:	RSCT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Flexible Current Transformers Rogowski Coil
Flexible Rogowski Coil Current Sensor:	Ce ,RoHS
3 Phase:	Black ,Red ,Blue
Output:	0-0.333V AC or 0-5V AC
Integrator:	Rogowski Coil with Integrator or Without
Insulation:	3kv
Frequency:	50/60Hz
