Lower Price Transformer Split Core CT with UL Ce

Name: Lower Price Transformer Split Core CT with UL Ce
Brand: all-electronics-online.com
SKU: 783674815
Availability: InStock
Rating: 4.3 (69 reviews)

Price:	US $ 1-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Split Core Current Transformer
Output:	0.33V or Ma
Certificates:	UL,ETL,CE,RoHS
Application:	Lighting
Phase:	Single
Type:	Split Core Current Transformer

Product Description

Current Transformer Split Core SCT 333mV Secondary Output
The JIANGYIN SPARK series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary

Features
Low cost.
Split core design;safer,easier installation,portable.
Specifications
Rated Current 5A to 3000A loads.
Rated output: 0.333Vac
Accuracy:±1% from 5% to 120% of rated current
Phase Angle: less than 2 degrees at 50% of rated current
Insulation Voltage:600Vac
Maximum Primary Voltage:5000Vac(Insulated Conductor)
Operating Temperature:-15ºCto 60ºC.
Frequency Range:50-400Hz
Leads:4Foot(105cm),UL 1015,Twisted Pair,0.34 mm2(22AWG)
UL&CE recognized. RoHS Compliant
Output and leads can be customized

Application
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.

Model	I. D.	Rated Amps	Output	Accuracy	SIZE( mm )
Model	I. D.	Rated Amps	Output	Accuracy	A	B	C	D	E
XH-SCT-0750	0.75" (19.1mm)	5, 15, 30, 50, 70, 100, 150, 200	0.333V	1.0	51.6	54.1	16.6	19.1	18
XH-SCT-1250	1.25" (31.8mm)	70, 100, 150, 200, 250, 300, 400, 600		1.0	82.3	85.3	26.4	32	32.3
XH-SCT-2000	2.00" (50.8mm)	400, 600, 800, 1000, 1200		1.0	120	125	29.6	52.5	52
XH-SCT-3000	3.00" x 5.00" (76.2mm x127mm)	1000, 1200, 1500, 2000.3000		1.0	145	199	30.5	76	130

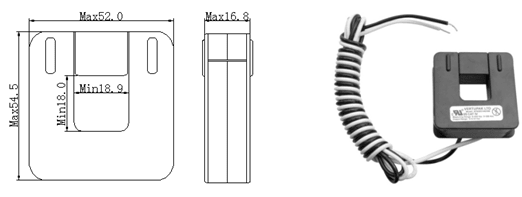

Drawing of split core CTs XH-sct-0750

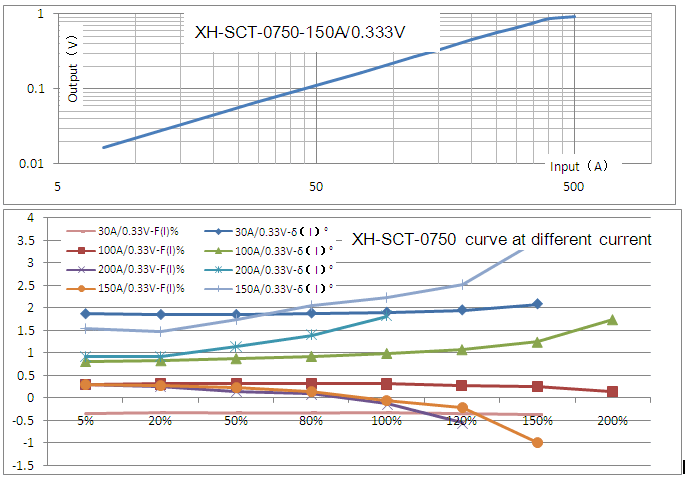

Performance of split core CTs XH-sct-0750
