100W 12V Rainproof LED Driver with CCC

Name: 100W 12V Rainproof LED Driver with CCC
Brand: all-electronics-online.com
SKU: 748356055
Availability: InStock
Rating: 5 (102 reviews)

Price:	US $ 7.6-8/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

100W 12V Rainproof PWM led power supply without electric fan

1.Features of LED power supply
- Constant voltage output led driver.
- Rainproof led driver.
- Output voltage adjustable.
-100%burn-in test
-Free Air convection cooling with aluminum housing
-No electric fan

2. Specifications of led driver:

Model no.	RLDV-12E100D
Input voltage	180-250 VAC 50/60 Hz
Max. power	100W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	>83%
Output voltage	12VDC ± 5%
Output current	8.33 A max
Installation	Outdoor rainproof
IP rating	IP23
Cooling	Free air convection
Connection input/output	Input:18AWG*3(30cm) Output: terminal(six)

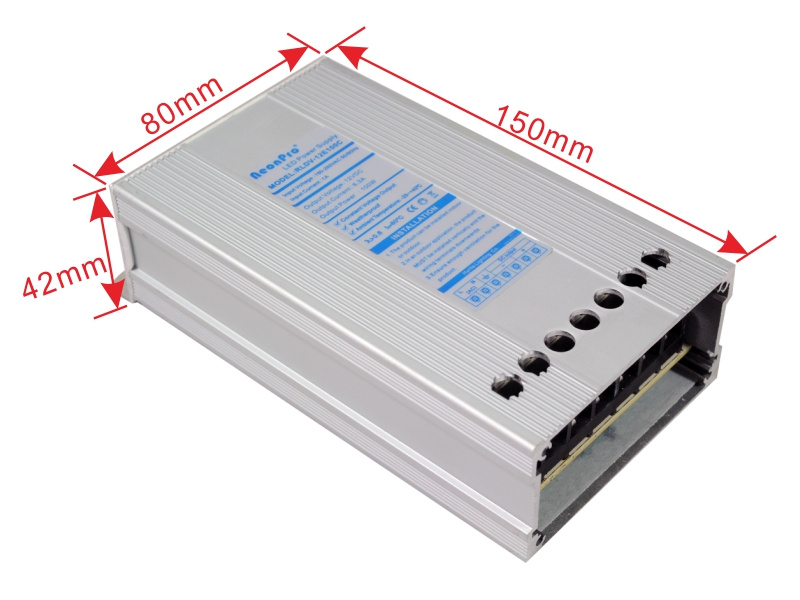

Dimensions(LWH)	1528040 mm
Weight(kg)	0.45

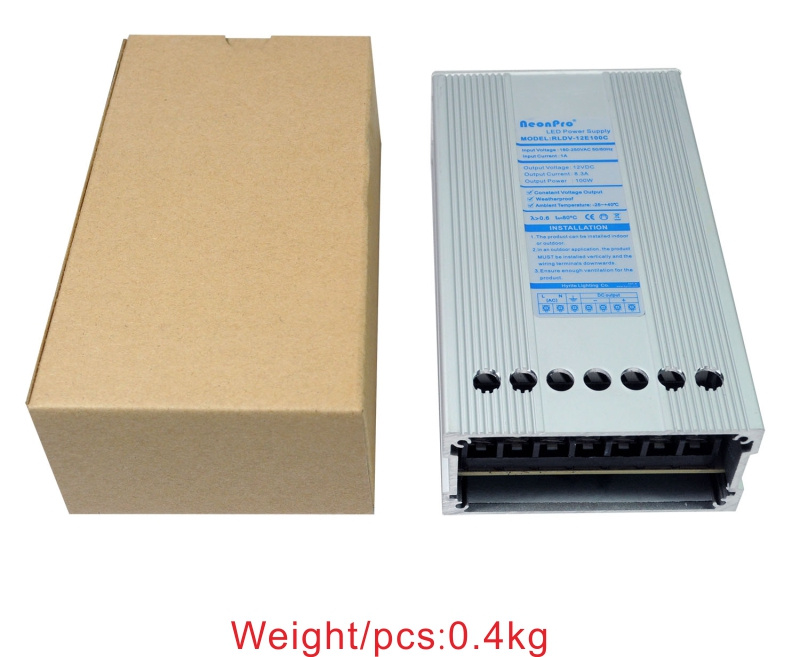

Packing information	60Pcs/ Carton, G.W 26.5KG

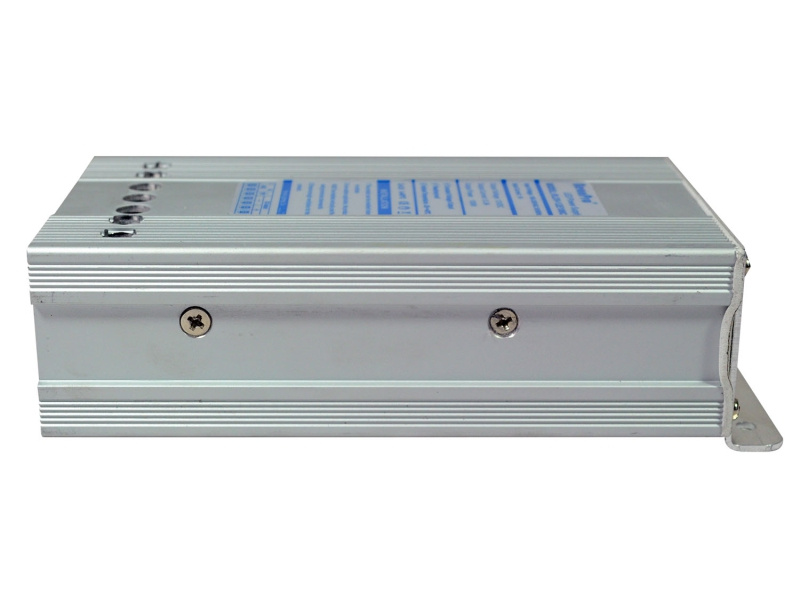

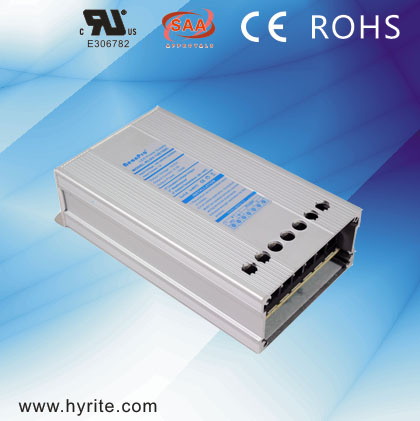

3.Detail pictures of LED driver

4. Applications of led driver:
*LED modules and LED strips
*LED light box and channel letter
*LED-neon tube
*Bar light
*Other signage lighting

5.Important Parameter of led driver:
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP23

6.Workshop and production line

Prod Model:	RLDV-12E100D
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	Rldv-12e100d
Input Voltage:	180-250 VAC 50/60 Hz
Max. Power:	100 W Max
Dimming:	No
Efficiency:	>83%
Output Voltage:	12VDC ± 5%
Output Current:	8.33 a Max
Installation:	Outdoor Rainproof
IP- Rating:	IP23
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
In-Out:	AC to DC
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
