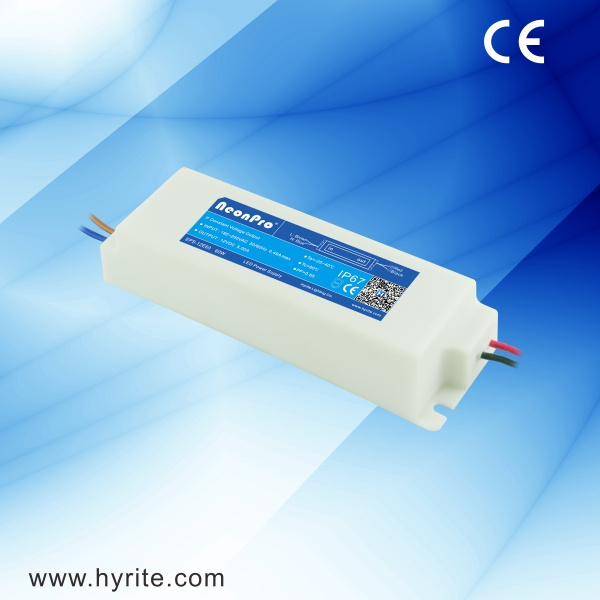

60W Plastic Case Slim Waterproof LED Driver with Ce

Name: 60W Plastic Case Slim Waterproof LED Driver with Ce
Brand: all-electronics-online.com
SKU: 730111642
Availability: InStock
Rating: 4.7 (46 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

60W plastic case Slim Waterproof LED Driver

1. Features of led driver: 60W 12V

Slimline design, specially for application with narrow space, such as covelight, light box, channel letter...
Fully sealed with plastic housing IP67.
No grounding connection.
Power supply for LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc...

2. Specifications of led driver

Model no.	EPS-12E/24E60
Input voltage	220-240VAC 50Hz/60Hz
Max. output power	60W max
Output type	Constant voltage
Power Factor	Low PF~0.6
Output voltage	12VDC/24VDC ± 5%
Max. output current	5A/2.5A max
Installation	Outdoor waterproof
Protection	Overload, Short circuit
Dimensions(LWH)	1494832 mm
Weight(kg)	0.8000

3.Sizes of LED driver 60W 12V

4. Applications of led driver

(1) indoor/outdoor LED illuminating lights,

(2)LED Neon,

(3)LED urban Decoration

(4)LED Lighting Advertising,

(5)LED Display,

(6)Safety Protection Apparatus,

5. Important Parameter of led driver
Store Temperature: -35~65° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP67

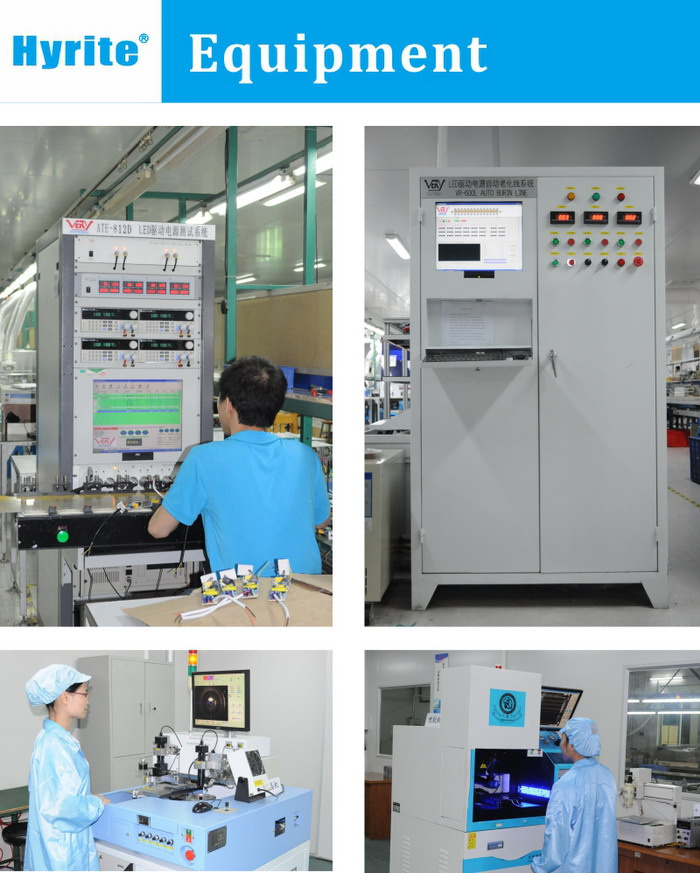

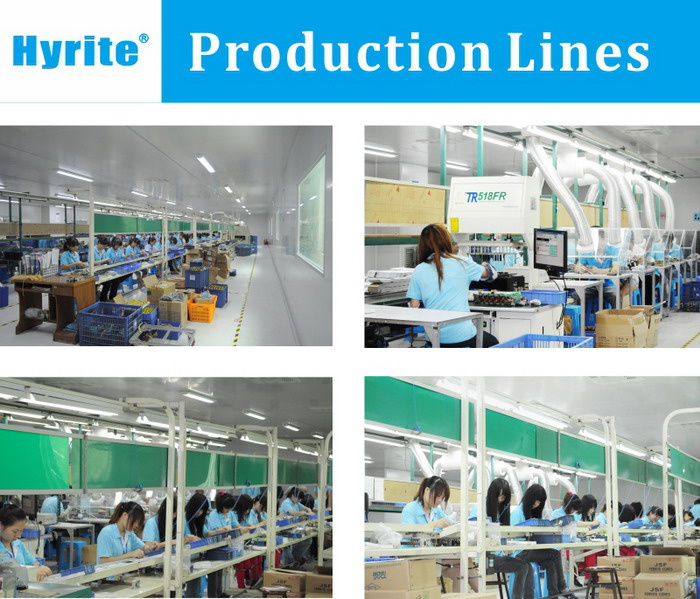

6. Equipments and Production Lines

Prod Model:	EPS-12E60
Output:	60W
Input Voltage:	220V
Output Voltage:	12V
Power Factor:	0.65
Efficiency:	85%
IP Rating:	IP67
Dimensions(LWH):	1494831.5
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Bis
Power Supply Voltage:	220V
Brand:	Neonpro
