100W 12V Slim Indoor LED Driver for Light Box with Ce

Name: 100W 12V Slim Indoor LED Driver for Light Box with Ce
Brand: all-electronics-online.com
SKU: 716775262
Availability: InStock
Rating: 4.9 (108 reviews)

Price:	US $ 7.48/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

100W 12V Indoor Constant Voltage switching power supply with CE

1. Features of switching power supply:
- Constant voltage output.
- Indoor.
-100%burn-in test
-Mesh case(or electric fan) for ventilation

2. Specifications of switching power supply:

Model no.	HS-12E100
Input voltage	220-240VAC 50Hz/60Hz
Max. power	100W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	85%
Output voltage	12VDC ± 5%
Output current	8.3A
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP20
Cooling	Free air convection
Connection input/output	Terminal
Weight(kg)	0.42
Packing information	60 Pcs/ Carton, G.W 25 KG

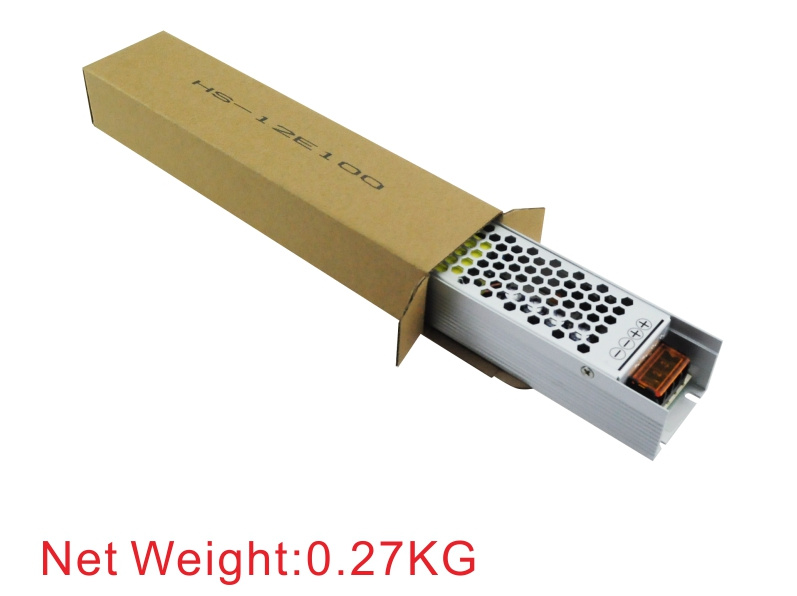

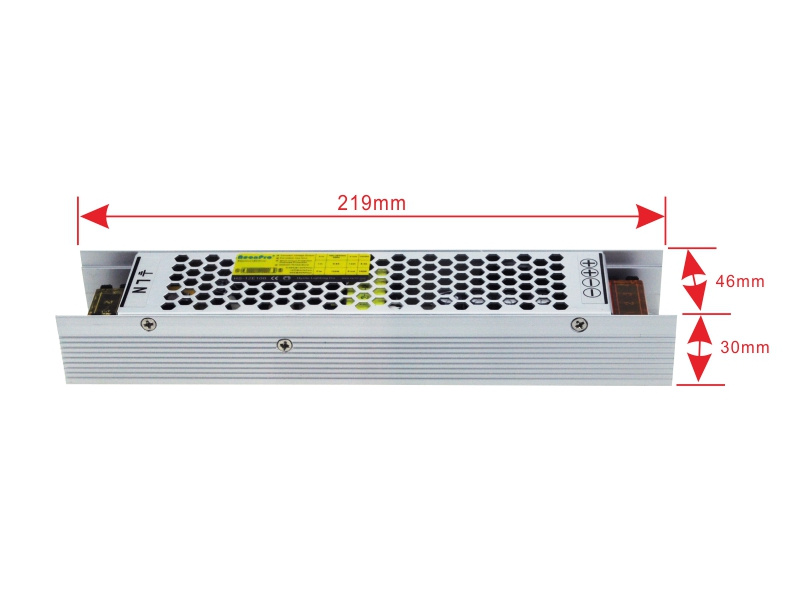

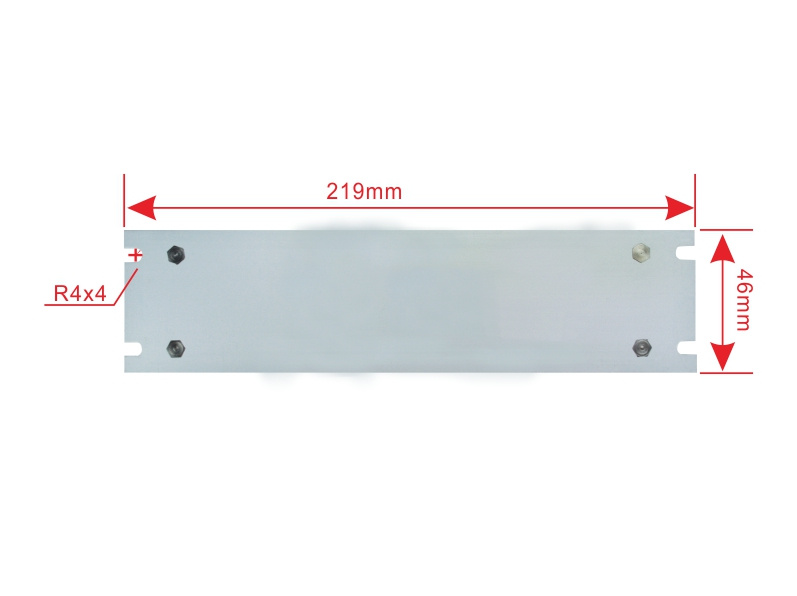

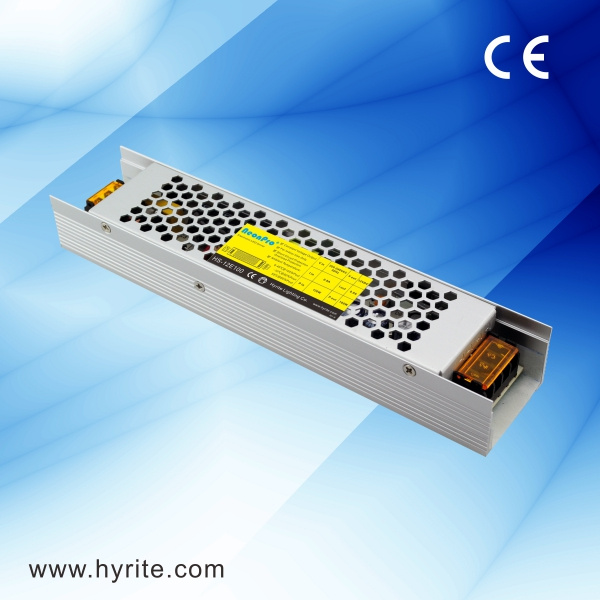

3.Detail picture of switching power supply

4. Applications of switching power supply:
*LED module& LED strip
*LED light & channel letter
*LED bar
*LED neon tube
*Other signage lighting

5. Important Parameter of switching power supply:
Store Temperature: -25~75° C
Working Temperature: -10~40° C
Work environment: Indoor installations
Waterproof Rating: IP20

6.Workshop & Project & Exhibition

Prod Model:	HS-12E100
Input Voltage:	220-240
Output Voltage:	12V
Output Current:	8.33A
Size:	2194630mm
Installation:	Indoor
IP Rating:	IP20
Cooling:	Free Air Convection
Connection Input/Output:	Terminal
Weight(Kg):	0.42
Packing Information:	60 PCS/ Carton, G.W 25 Kg
Usage:	Vehicle
Output Type:	Triple
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
