150W 12V Indoor Switching Power Supply with Ce

Name: 150W 12V Indoor Switching Power Supply with Ce
Brand: all-electronics-online.com
SKU: 785440395
Availability: InStock
Rating: 4.6 (74 reviews)

Price:	US $ 7.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

12V 150w IP20 Indoor constant voltage switching power supply

1.Features of switching power supply:
Indoor driver for LED module, strip, flex ribbon, bar light, panel light, LED-neon tube, pixel lamp, perforating lamp, etc...
Constant voltage output
Mesh case (or electric fan) for ventilation
100% burn-in test
CE
2 years warranty
*5V/12V/24V

2. Our main products include:
-IP67 Waterproof constant voltage LED power supply with CE SASO SAA BIS TUV
-IP45 Rainproof constant voltage LED power supply with CE UL
-IP20 Indoor constant voltage LED power supply with CE
-Constant Current led driver for lighting with CE SAA
-Dimmbale LED Driver with CE SAA
-LED Modules with CE UL

3.Technical Specification of switching power supply

Model no.	ELDV-12E150B
Input voltage	220-240VAC 50Hz/60Hz
Max. power	150W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	85%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	12.5A
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	1599842 mm
Weight(kg)	0.54
Packing information	50 Pcs/ Carton, G.W 27 KG

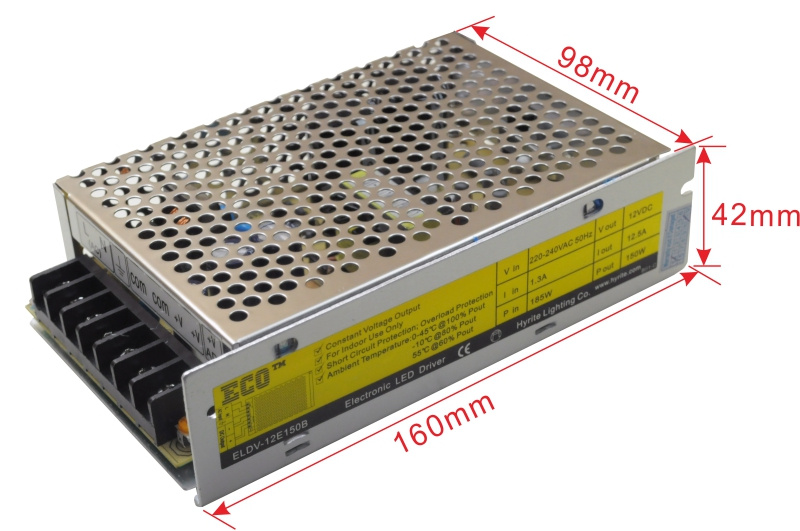

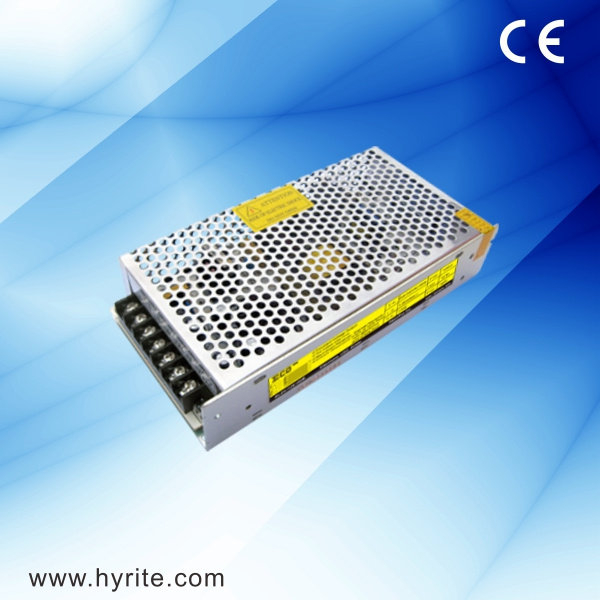

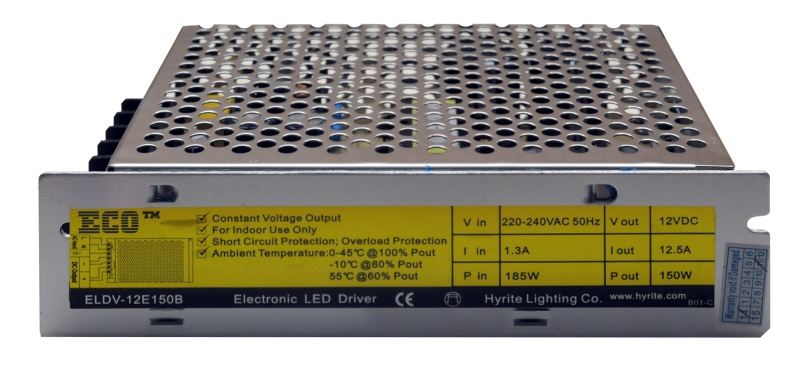

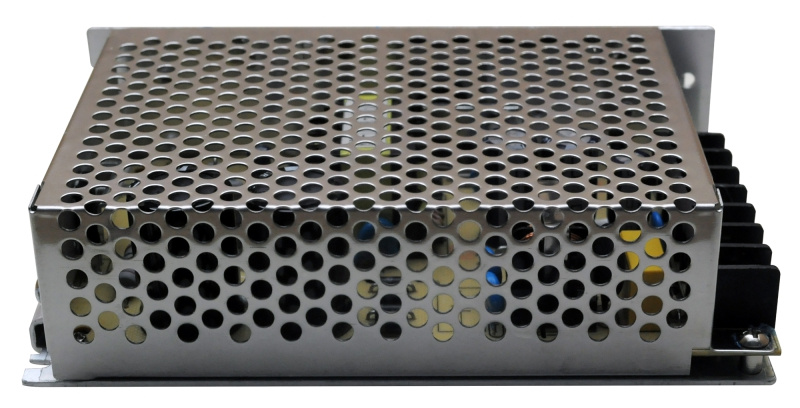

4.Detailed Pictures of switching power supply

5.Aplication of switching power supply:
*LED module
*LED strip
*Bar light
*LED-neon tube
*Other signage lighting

6. Project & Workshop:

Payment Terms:
-L/C
-Western Union
-T/T: 30% deposit before production,70% balance to be paid before delivery

Delivery:100% on schedule,samples can be shipped within 3 days.
OEM Service and Sample Orders are welcome.

Prod Model:	ELDV-12E150B
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240V
Output Voltage:	12V
Output Current:	12.5A
Output-Type:	Constant Voltage
Power Factor:	0.65
Installation:	Indoor
IP Rating:	IP20
Cooling:	Free Air Convection
Max. Power:	150W Max
Model No.:	Eldv-12e150b
Usage:	Vehicle
Output Type:	Triple
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Power Supply Voltage:	180-260V
Brand:	Neonpro

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
