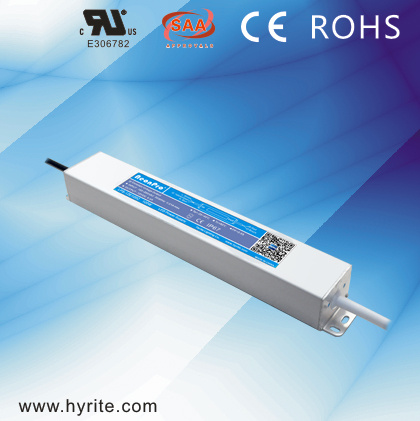

12V 100W Constant Voltage Efficiently thin AC to DC LED Power Supply
1. Feature of LED power supply
External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
Slim body, special design for application with narrow space, such as celling led strip back light, led light box
Fully sealed and waterproof, IP67 led power supply
Constant voltage output led power supply
100% burn-in test
2. Specifications of LED power supply
| Model no. | LPS-12E100C |
|---|
| Input voltage | 220 VAC 50/60 Hz |
|---|
| Max. power | 100W max |
|---|
| Output type | Constant voltage |
|---|
| Dimming | No |
|---|
| Built-in active PFC | No |
|---|
| Power factor | 0.65 |
|---|
| Efficiency | 90% |
|---|
| AC inrush current(max.) | Cold start, 40A@230VAC |
|---|
| Output voltage | 12VDC ± 5% |
|---|
| Output current | 8.33A max |
|---|
| Overload protection | 110% hiccup mode, auto-recovery |
|---|
| Over voltage protection | 120% rated output voltage |
|---|
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
|---|
| Operating temperature | -25~40 ºC |
|---|
| Installation | Outdoor waterproof |
|---|
| IP rating | IP67 |
|---|
| Cooling | Free air convection |
|---|
| Certificates/standards | CE,SASO,SAA BIS |
|---|

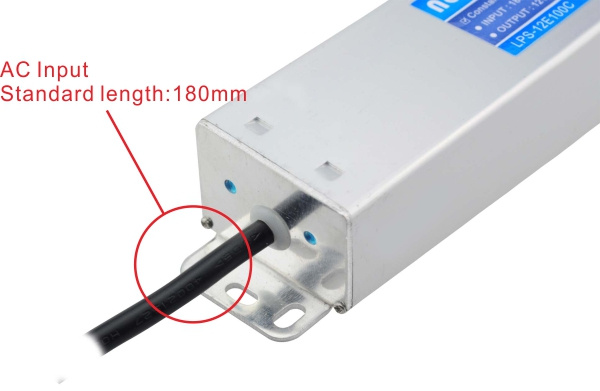

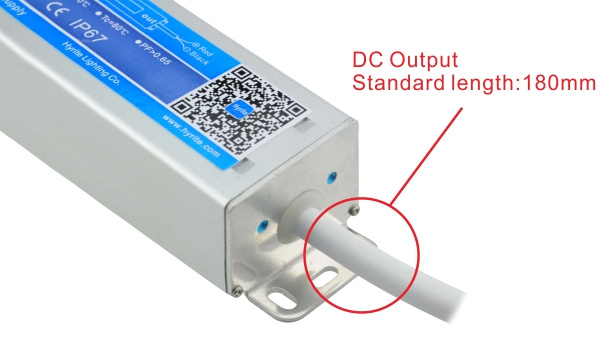

| Connection input/output | Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm) |
|---|
| Dimensions(L*W*H) | 292*43*34mm |
|---|
3.Details of LED power supply
4. Projects around the world:Our projects covering banks, shops and buildings all over the world.
LED Power Supply suitable for Office lighting, Artwork lighting, Display case
Home lighting
Commercial lighting, such as down light, underground lamp, Panel light, Spotlight, Wall washer, etc.
Hotel, Restaurant lighting
Other public lighting
5. Our factory and production line:Hyrite is a professional manufacturer of LED power supply and LED module. We have more than 20 years experience in design, development and manufacturing of electronic power supplies. Including waterproof /rainproof/indoor LED power supply for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
(1) Office show
We have more then 300 staffs in our company and cover an area of 15000 in Guangdong, China with additional office in the USA
(2)Professionnal testing machine: SMT, Burn-in test machine...
(3) Production lines:
There are 12 production lines in our factory.
Sign China; LED China; Guangzhou International Lighting Exhibition; Shanghai Int'l Lighting Expo; Light India; Hong Kong International Lighting Fair; Euroshop 2017;Light Middle East
Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.
The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.
Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.
Pls kindly check our main products below,
*IP67 Slim high efficiency constant voltage LED power supply (New)
*Traditional IP67 constant voltage waterproof LED power supply
*IP45 Rainproof constant voltage LED power supply.
*IP20 indoor type LED power supply.
*Constant Current LED Driver for LED lighting.
*Dimmable LED driver.
*LED module for Channel letter/light box.
Certificate: CE RoHS SASO SAA TUV UL approved
In addition we offer comprehensive OEM and ODM services to our partners.
We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
