10kg Stainless Steel Shear Beam Hopper Scale Sensor

Name: 10kg Stainless Steel Shear Beam Hopper Scale Sensor
Brand: all-electronics-online.com
SKU: 773911155
Availability: InStock
Rating: 4.9 (34 reviews)

Price:	US $ 118/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-23
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	5~500kg
Rated Output:	2.0mv/V
Accuraacy:	0.02%Fs
Cable Length:	3.5m
Product Name:	10kg Stainless Steel Shear Beam Load Cell/ Hopper

Product Description

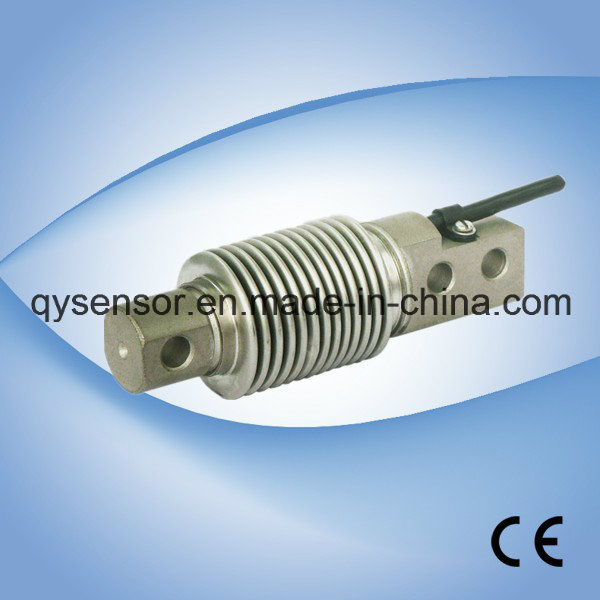

QH-23 10kg Stainless Steel Shear Beam Load Cell/ Hopper Scale Sensors are available in the capacities from 5kg to 500kg.
Alloy steel & stainless steel construction with single shear beam type.
Sealed welding ,waterproof, anti-corrosion and suitable for all kinds of environment.
Integral structure and easy installation.
Suitable for electronic platform scale, hopper scales and other electronic weighing devices.
Features:
Capacity :5kg to 500kg
Defend grade: IP67 & IP68
High accuracy.
Alloy steel & stainless steel single shear beam
Low profile and nice exterior

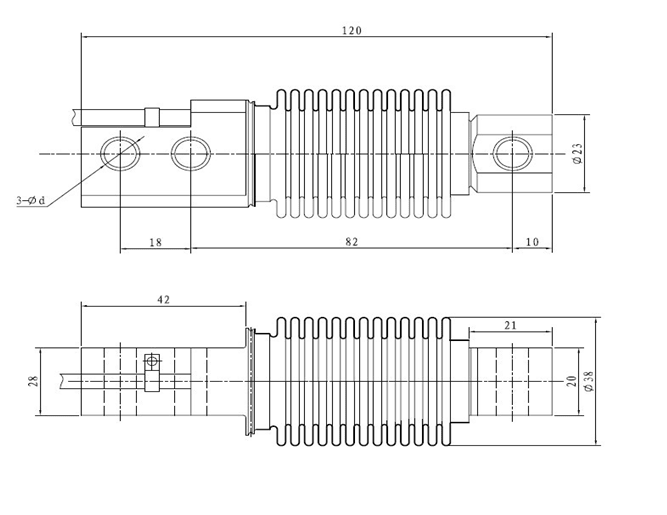

Electrical connection and Dimensions:

Technical Specifications

Specifications:
Capacity	kg	5,10,20,30,50,100,200,300,500
Safe overload	%FS	150
Ultimate overload	%FS	200
Rated output	mV/V	2.0 ± 0.004
Excitation voltage	Vdc	5 ~ 12
Combined error	%FS	± 0.03	± 0.02
Zero unbalance	%FS	± 1
Non-linearity	%FS	± 0.02	± 0.016
Hysteresis	%FS	± 0.02	± 0.02
Repeatability	%FS	± 0.02	± 0.01
Creep	%FS/30min	± 0.02	± 0.016
Input resistance	Ω	365 ± 10
Output resistance	Ω	350 ± 3
Insulation resistance	M Ω	≥ 5000 @ 50 Vdc
Operating temperature range	ºC	-20 ~ +65
Compensated temperature range	ºC	-10 ~ +40
Temperature coefficient of SPAN	%FS/10ºC	± 0.02	± 0.02
Temperature coefficient of ZERO	%FS/10ºC	± 0.03	± 0.02

Contact for more sensor details:

Chloe Shu
Sales Engineer

TEL: +86-916-2257989
MOB: +86 15336190378

http://www.qysensor.com
https://cn.linkedin.com/pub/chloe-shu/74/445/964

Packing reference:

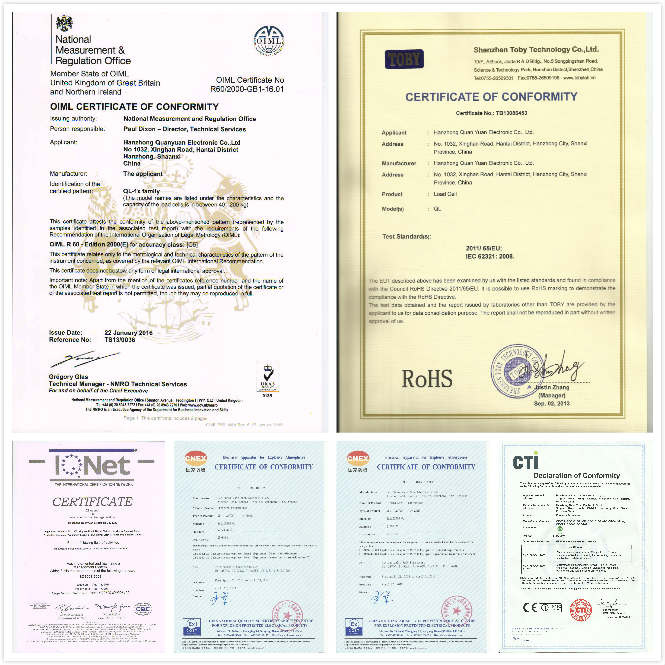

Certificates:

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
