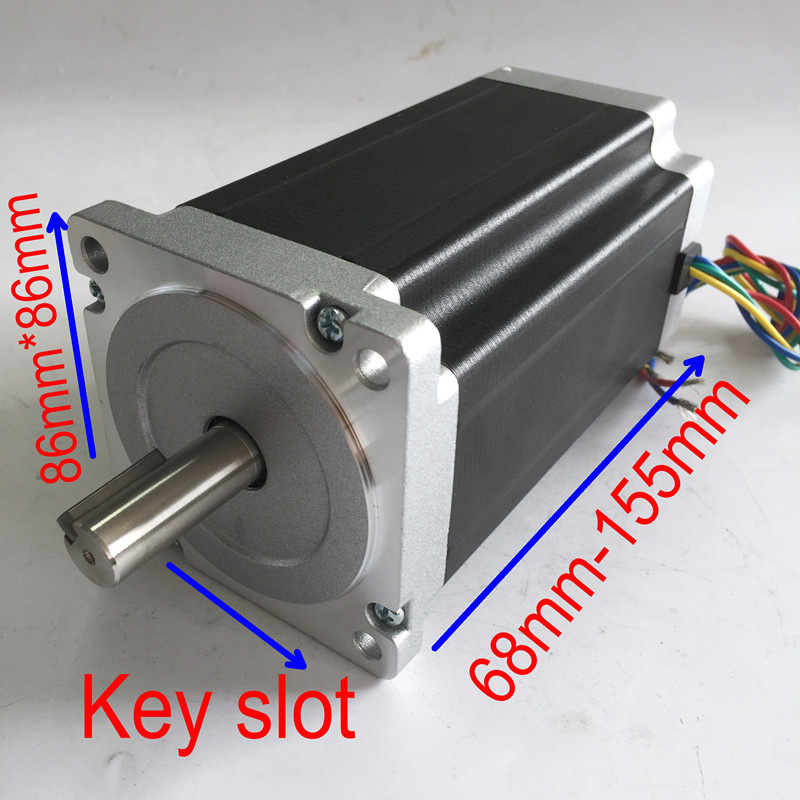

1200 Oz. in NEMA34 Hybrid Stepper Motor with High Torque
| Price: |
US $ 22.5-46.5/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
1200 Oz.in NEMA34 Hybrid Stepper Motor with High Torque
Genaral Specification:Step Angle ------------------- 1.8° ± 5%
Temperature Rise ------------- 80° Max
Ambient Temperature -------- -20° ~+50°
Insulation Resistance--------- 100 MΩ Min., 500VDC
Dielectric Strength: ------------ 1800VAC for 1S 5mA
Shaft Radial Play --------------- 0.02Max. (450g-load)
Shaft Axial Play ----------------- 0.08Max. (450g-load)
Max. Radial force----------------- 220N (20mm from the flange)
Max. Axial force------------------- 60NSpecifications for NEMA34 STEPPER MOTOR| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( ° ) | (L)mm | A | Ω | mH | N. m | No. | Kg. cm | g. cm | Kg |
| JK86H66-5904 | 1.8 | 66 | 5.9 | 0.28 | 1.7 | 3.4 | 4 | 0.8 | 1000 | 1.7 |
| JK86H66-2808 | 1.8 | 66 | 2.8 | 1.4 | 3.9 | 3.4 | 8 | 0.8 | 1000 | 1.7 |
| JK86H78-5504 | 1.8 | 78 | 5.5 | 0.46 | 4 | 4.6 | 4 | 1.2 | 1400 | 2.3 |
| JK86H78-4208 | 1.8 | 78 | 4.24 | 0.75 | 3.4 | 4.6 | 8 | 1.2 | 1400 | 2.3 |
| JK86H97-4008 | 1.8 | 97 | 4 | 0.98 | 4.1 | 6.8 | 8 | 1.6 | 1900 | 3 |
| JK86H97-5008 | 1.8 | 97 | 5 | 0.65 | 2.4 | 6.8 | 8 | 1.6 | 1900 | 3 |
| JK86H97-2708 | 1.8 | 97 | 2.7 | 1.9 | 8.6 | 6.8 | 8 | 1.6 | 1900 | 3 |
| JK86H115-6004 | 1.8 | 115 | 6 | 0.6 | 6.5 | 8.7 | 4 | 2.4 | 2700 | 3.8 |
| JK86H115-4208 | 1.8 | 115 | 4.2 | 0.9 | 6 | 8.7 | 8 | 2.4 | 2700 | 3.8 |
| JK86H126-4008 | 1.8 | 126 | 4 | 1.3 | 5.8 | 9.3 | 8 | 3.0 | 3200 | 4.5 |
| JK86H126-5008 | 1.8 | 126 | 5 | 0.85 | 3.4 | 9.3 | 8 | 3.0 | 3200 | 4.5 |
| JK86H126-2708 | 1.8 | 126 | 2.7 | 2.5 | 12.5 | 9.3 | 8 | 3.0 | 3200 | 4.5 |
| JK86H153-6204 | 1.8 | 153 | 6.2 | 0.75 | 9 | 12 | 4 | 3.6 | 4000 | 5.4 |
| JK86H153-4208 | 1.8 | 153 | 4.2 | 1.25 | 8 | 12 | 8 | 3.6 | 4000 | 5.4 |
Q1 Why choose us?•We are one Professional manufacturer with stepper motor, brushless dc motor and pmdc motor •We have the professional production lines of banners and printing. We have over 80 employees.•we can design and produce the parameter, shaft , endbell ..., according your requests.•Excellent Service,Reasonable Price,Timely Delivery•Full inspection before Packing,100% quality Guarantee•Sample order& Small quantity is Acceptable•OEM is availableQ2. Are you manufacturer?Yes, we are manufacturer, we have more than 10 years design experience and export experienceQ3. what is your payment terms ?We accept T/T , PAYPAL, L/C etcQ4. Sample&production lead time? Sample order:within 7-10 days Mass order: within 25 days.Q5. How can I order ?The order process is : Discussing-drawing confirm -Offering confirmation ---Invoice for payment --Production --DeliveryQ6 : How to shipping?We can offering our shipping service to you ( like C&F or DDU terms), you can aslo choose your agent in FOB terms.
| Prod Model: |
JK86HS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angle: |
1.8degree |
| Current: |
2.7-6.2A |
| Holding Torque: |
3.4-12n.M |

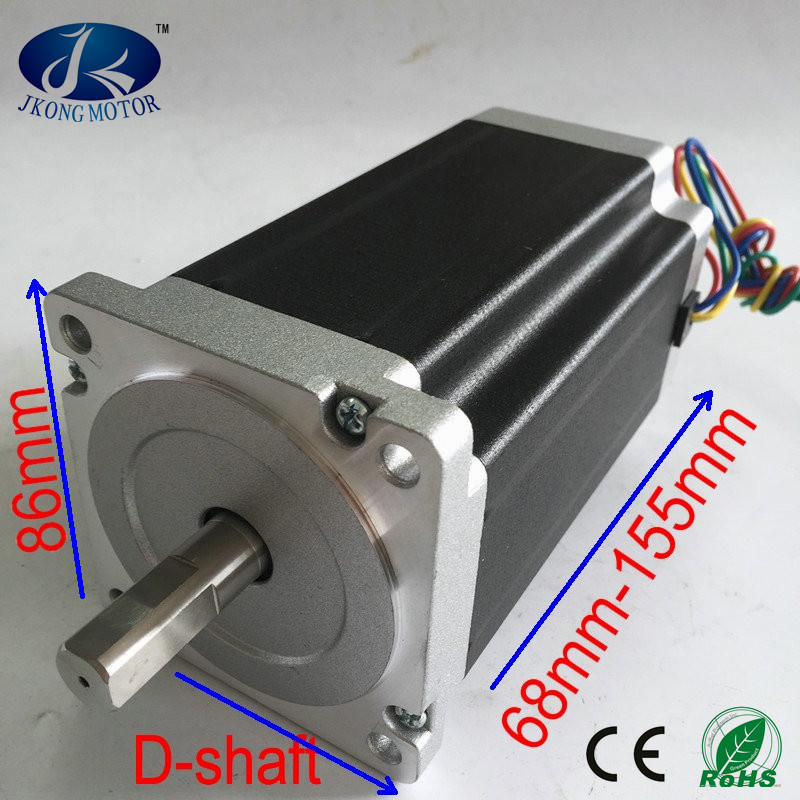

| Shaft Shape: |
Round Shaft/D-Cut/Key Slot |
| Frame Size: |
86mm*86mm |
| Body Length: |
68mm-155mm |
| Key Word: |
Stepper Motor |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Application: |
Other |
| Operate Mode: |
Driver |
| Certification: |
RoHS,Ce |
| Brand: |
Jk |
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

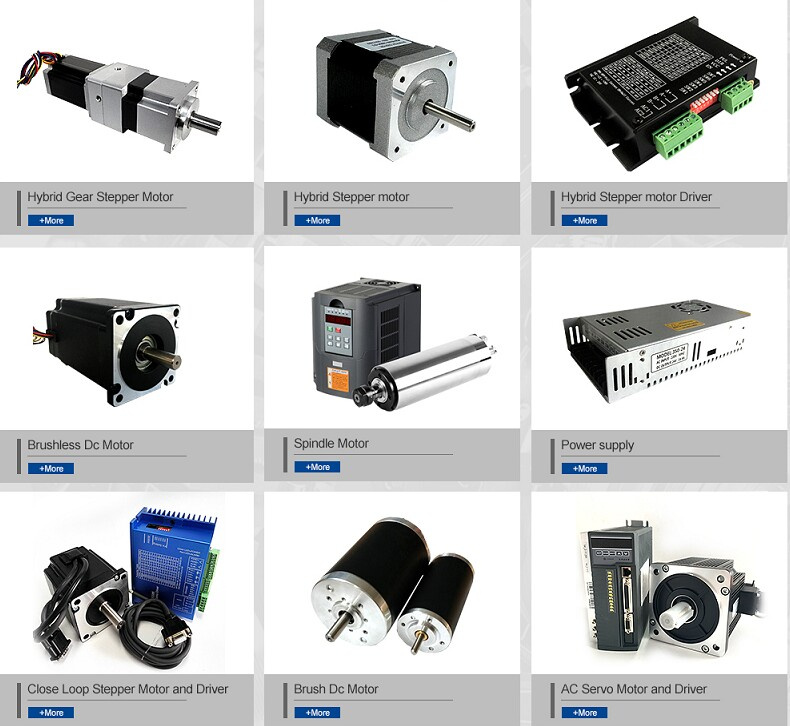

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
