| Prod Model: |
JK42HS34-1334-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angle: |
1.8 Degree |
| Holding Torque: |
1.6kg.Cm |
| Shaft Diameter: |
5mm |
| Shaft Length: |
22mm |
| Current: |
1.33A |
| Rated Voltage: |
2.8V |
| Resistance: |
2.1 Ohms |
| Leads: |
4 |
| Key Word: |
Stepper Motor |
| Shaft Shape: |
Round Shaft |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Electromechanical |
| Operate Mode: |
Two Phase Double Beat |
| Certification: |
Ce and RoHS |
| Brand: |
Jkong Motor |
Product Description

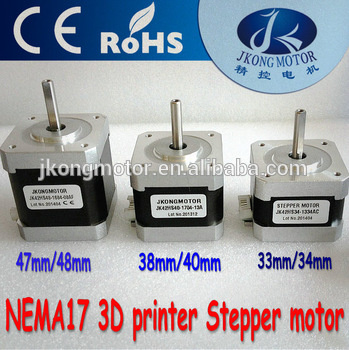

NEMA17 Stepper Motor for Printer 1.6kg.cm 2.5v
Description:
1.8 degree Size 42mm Hybrid stepper motor. 3D Printer stepper motor
42mm size stepper motor , NEMA17 stepping motor,
Small stepping motors, 2 phase 42mm stepper motor, Stepper motor 42mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version
Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor , Medical instrument stepping motor,Advertisementing instrument stepper motor,
Lighting& audio equipment stepper motor,
Printer stepper motor,
Textile machinery stepper motor.
Cnc router stepper motor.

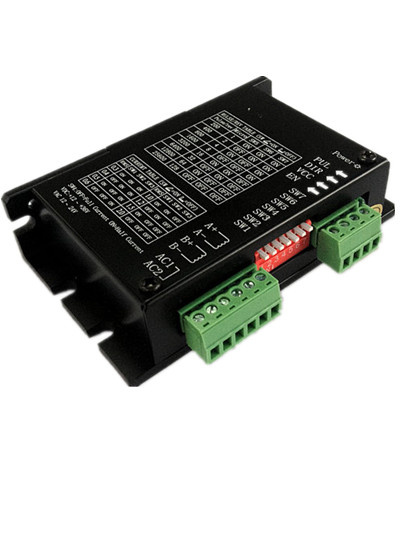

Matching Stepper motor Driver: JK0220
Characteristics:
1.DC power input type:12V~36VDC , AC power input : 23V~24V
2.Output current:0.3A-2.0A
Mircostepping:1(1.8º),1/2,1/4,1/8,1/16,1/32,1/64,1/128
Pulse/rev: 200, 400, 800, 1600, 3200, 6400, 12800, 25600
3.Dimensions:96mm×60mm×24.5mm
4.Weight:<200g.
5.Working environment:Temperature-15~80ºC
I/O Ports:
1.AC1,AC2:It can input both for AC and DC
Note: Must guard against exceeding 36V,
so as not to damage the module
2.A+,A-:Stepping motor one winding
3.B+,B-:Stepping motor other winding
4.PUL :Stepping pulse input
5.DIR:Stepping motor direction input
6.VCC:power supply port for inside optical coupling
7.EN: motor free
Switch Choice:
1. Microstepping choice:
SW5 | On | Off | On | Off | On | Off | On | Off |
SW6 | On | On | Off | Off | On | On | Off | Off |
SW7 | On | On | On | On | Off | off | Off | Off |
Micro | 1 | 2 | 4 | 8 | 16 | 32 | 64 | 128 |
2. Current choice:
SW1 | On | Off | On | Off | On | Off | On | Off |
SW2 | On | On | Off | Off | On | On | Off | Off |
SW3 | On | On | On | On | Off | Off | off | Off |
Current(A) | 0.3 | 0.4 | 0.5 | 0.6 | 1.0 | 1.2 | 1.5 | 2.0 |
NOTE:
1. When ambient temperature is high or working current over 1.05A, fix the module on big metal shell , or use axle flows fan dispels the heat, to make the module run reliably for a long time.
2. Half current automatically: if control machine not send out signal in half second, driver enter half current state of automatically for electricity saving.
CHANGZHOU JINGKONG MOTOR & ELECTRIC Appliance Co.ltd is a high-tech enterprise that specializes in designing and producing Hybrid Stepper Motor, Gear Motor, Linear motor, Brushless dc Motor, Driver and some related parts.
Our Appliance fields refer to robot, electronic equipment, medical instrument, lighting & audio equipment, 3D printer, texile machine and CNC machine.
All our products have obtained CE certification, compliance with EU ROHS standards.
Welcome Domestic & foreign customers visit and cooperation!
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
