Reprap 3D Printer NEMA 17 Stepper Motor with High Quality

Name: Reprap 3D Printer NEMA 17 Stepper Motor with High Quality
Brand: all-electronics-online.com
SKU: 681086202
Availability: InStock
Rating: 4.8 (146 reviews)

Price:	US $ 3-7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

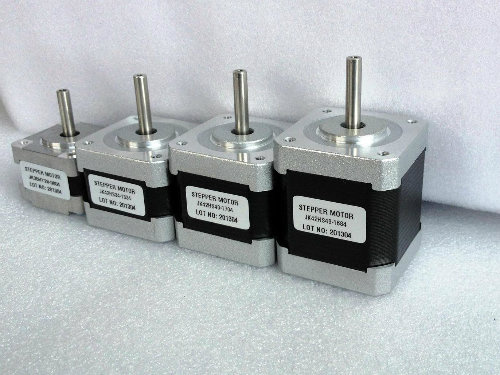

Reprap 3D Printer NEMA 17 Stepper Motor with high quality

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, Stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the Best motors on the market. Stepper Motor is used on CNC router, CNC Lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser Cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The Stepper motor also has been used in precision telescope positioning systems and Robots. Low inductance and high torque make these Motor the best choice.

about our factory :

About our packing :

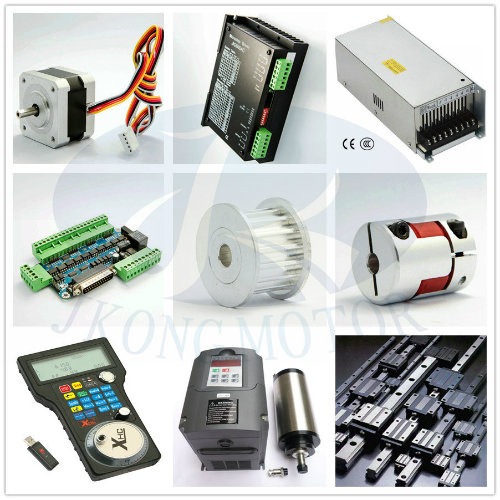

We are also have other products

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( ° )	(L)mm	A	Ω	mH	kg. cm	No.	g. cm	g. cm	Kg
JK42H28-0604	1.8	28	0.6	8	10	1.2	4	130	27	0.15
JK42H34-1304	1.8	34	1.3	2.4	2.8	2.8	4	160	34	0.22
JK42H34-1704	1.8	34	1.7	1.2	1.8	2.8	4	160	34	0.22
JK42H34-0404	1.8	34	0.4	30	35	2.8	4	160	34	0.22
JK42H34-0406	1.8	34	0.4	30	18	2.1	6	160	34	0.22
JK42H40-1704	1.8	40	1.7	1.5	2.8	4.0	4	220	54	0.28
JK42H40-1304	1.8	40	1.3	2.5	5.0	4.0	4	220	54	0.28
JK42H40-1206	1.8	40	1.2	3.2	2.8	2.8	6	220	54	0.28
JK42H40-0406	1.8	40	0.4	30	28	2.8	6	220	54	0.28
JK42H48-1704	1.8	48	1.7	1.8	3.2	4.9	4	260	68	0.35
JK42H48-1304	1.8	48	1.3	3.2	5.5	4.9	4	260	68	0.35
JK42H48-2304	1.8	48	2.3	1.2	1.6	4.9	4	260	68	0.35
JK42H48-0406	1.8	48	0.4	30	38	3.6	6	260	68	0.35

Prod Model:	JK42HS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shape:	Square
Current:	0.4A-3A
Step Angel:	1.8 Degree
Motor Length:	34mm-60mm
Wires:	4 Wires or 6 Wores
Holding Torque:	1.6kg.Cm and More
Customation:	Can Accept
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Operate Mode:	Other
Certification:	RoHS,Ce
Brand:	Other

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
