NEMA17 4.2 Kg. Cm High Torque Linear Stepper Motor with CE and RoHS

Name: NEMA17 4.2 Kg. Cm High Torque Linear Stepper Motor with CE and RoHS
Brand: all-electronics-online.com
SKU: 723059665
Availability: InStock
Rating: 5 (62 reviews)

Price:	US $ 15-17/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK42HS40-1704ACL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Holding Torque:	4.2kg.Cm
Rated Voltage:	2.52V
Rated Current (Peak Value When Microstep:	1.7A
Shaft Diameter:	5mm / 0.188" (3/16")
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Linear
Application:	CNC /Printer
Operate Mode:	by Stepper Driver
Certification:	Ce and RoHS
Brand:	Jk

Product Description

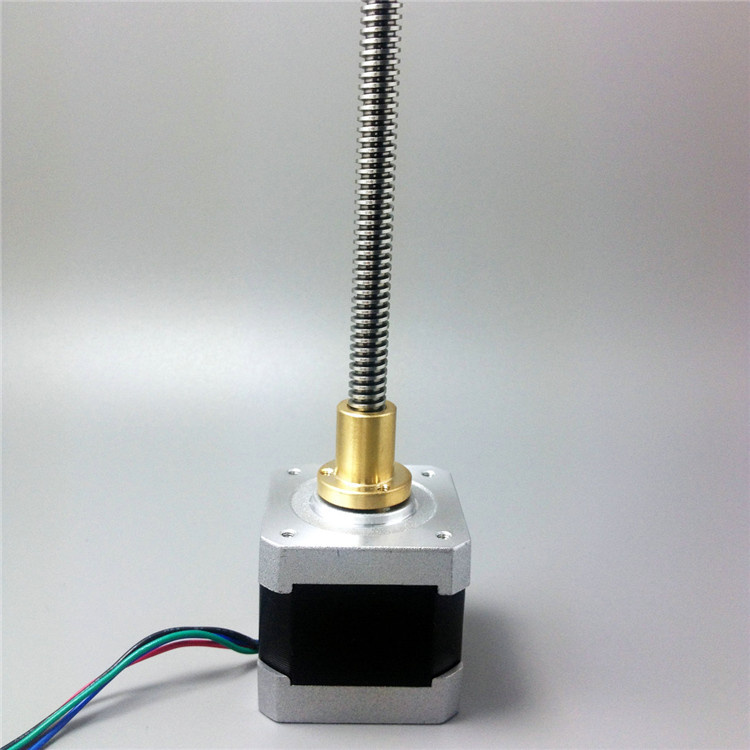

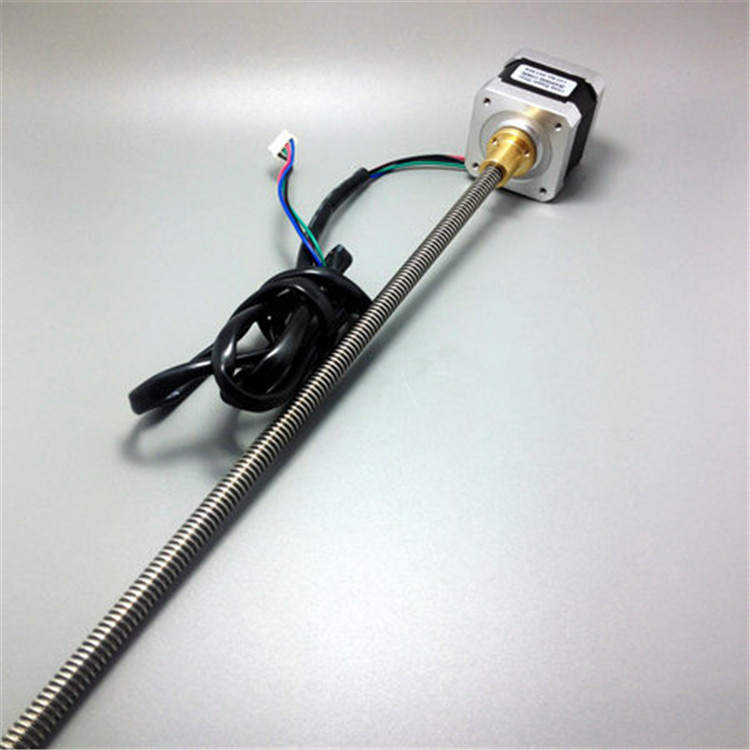

NEMA17 4.2 Kg. Cm High Torque Linear Stepper Motor with CE and RoHS

Specifications

nema 17 stepping motor , 42mm linear stepper motor
Motor with a precision Acme threaded rod for a shaft
Lead Screw Tr8x8(P2)
Model : JK42HS40-1704ACL

200 steps per revolution (1.8 deg/step)
2 Phase
Rated Voltage 2.52v
Rated Current (peak value when microstep 1.7A
Coil Resistance/phase: 1.5 Ohm ± 10% (20º C)
Coil Inductance/phase: 2.3mH ± 20% (1kHz 1 V rms)
Holding torque: 4.2KG.CM
Shaft diameter: 8mm / 0.188" (3/16")
Shaft length: 300 mm
Motor depth: 40mm

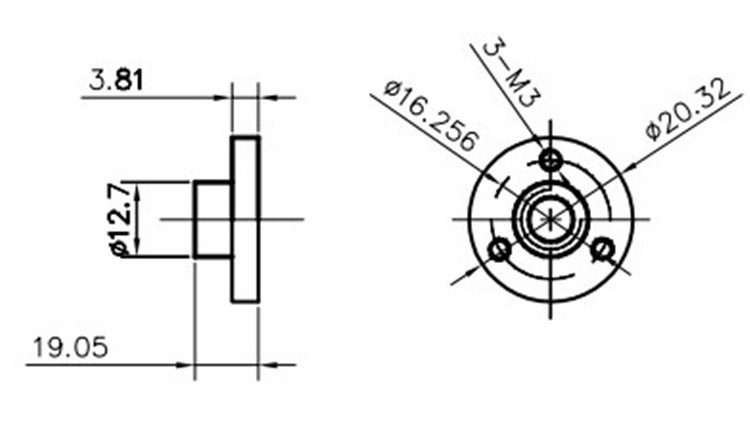

Lead Screw Tr8x2(P1)

detail

About our workshop:

Our products already export to USA , Mexico, Itlay, Spain, Germany,Uk, France, Turkey ,India and so on
Welcome visit our company . we can supply OEM ..
Excellent Quality and Competitive price waiting for you ~

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
