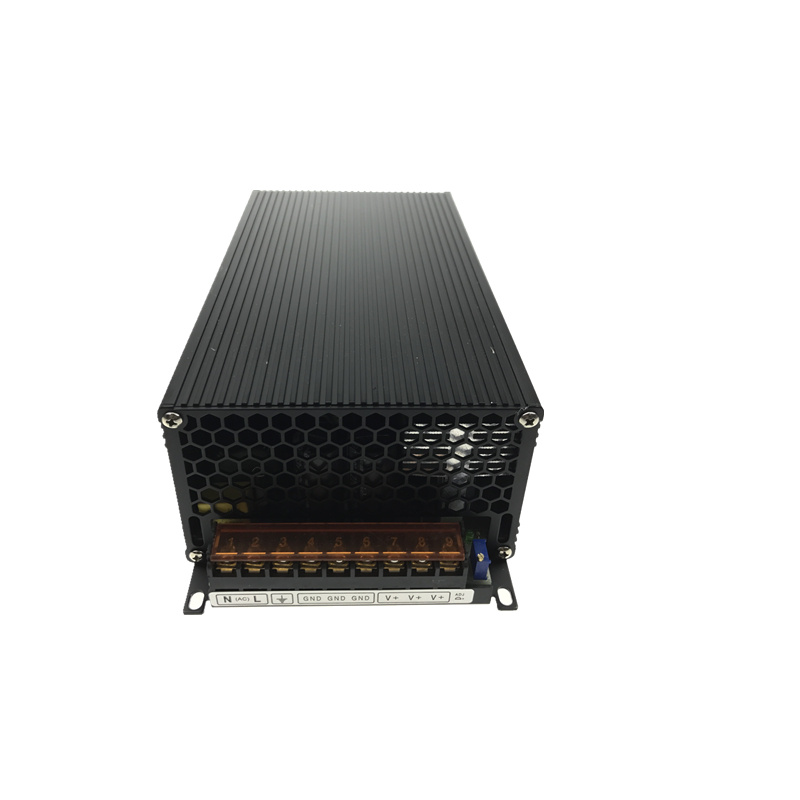

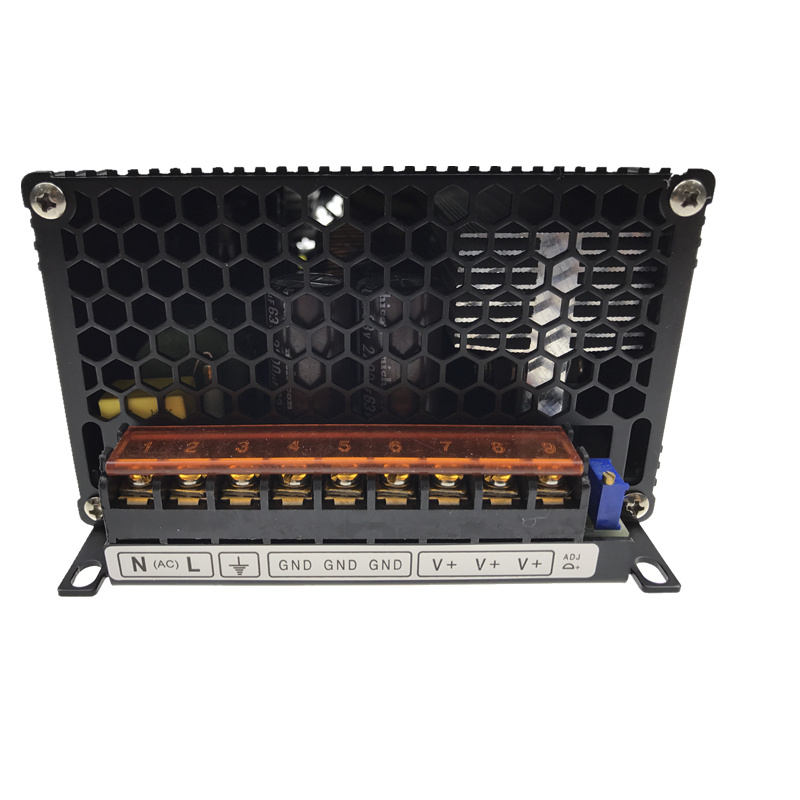

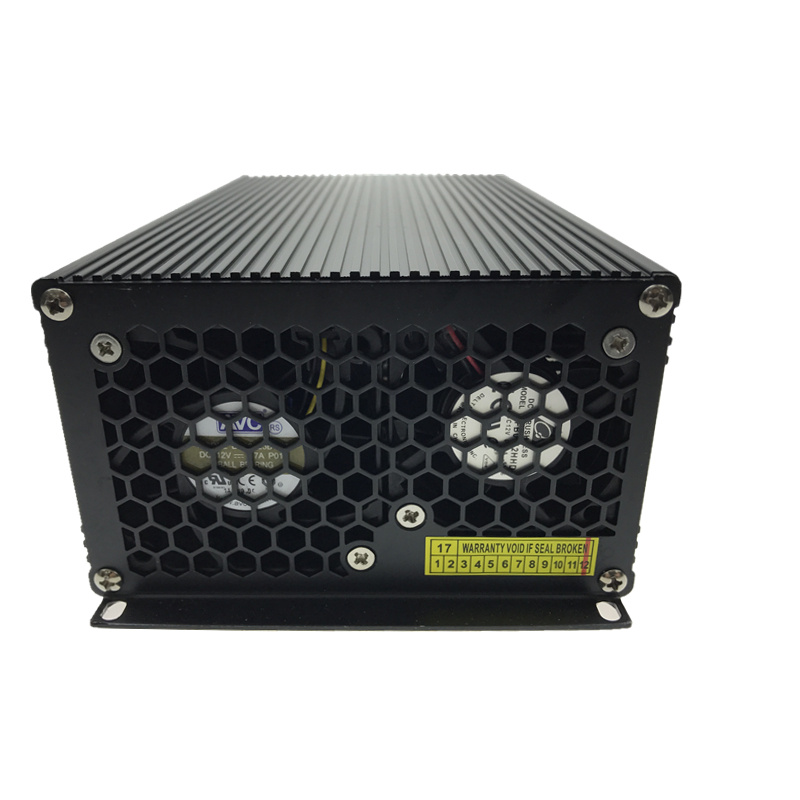

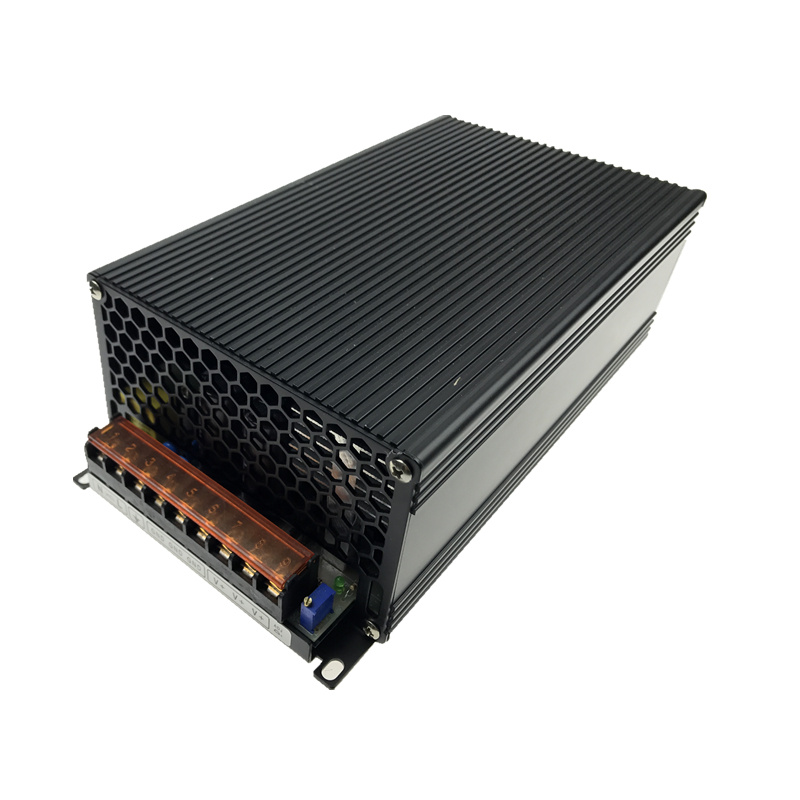

1500W Constant Voltage Switching Power Supply with DC48V
| Price: |
US $ 63-64/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
S-1500-48 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Doxin |
| Output Voltage: |
48V |
| Output Current: |
30A |
| Rated Power: |
1500W |
| Power Supply: |
AC/DC |
| Color: |
Silver |
| Type: |
Power Supply |
| 2 Years: |
Warranty |
| Certificate: |
CE |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CE |
| Output Power: |
1500W |
Product Description
1500W Constant Voltage Switching Power Supply with DC48V
Packaging & Delivery
Packaging Detail: 1. Original factory packing or the neutral packing 2. In carton
Delivery Detail: 7- 10 working days when get the payment
Specifications
1)With CE certification
2)1 Years Quality Guaranty
3)Damage Avoiding Packing
4)Fast delivery
5)Output voltage 12V
6)Safe and uninterrupted
DOXIN History
We have over 11 years experience in the field of switch power supply, with professional production line and outstanding engineers. We pay attention to the foregin country for 6 years. A united and creative foreign trading team and good after sell service make our career expanded.
| MODEL | S-48-1500 |
| OUTPUT | DC VOLTAGE | 48V |
| RATED CURRENT | 31A |
| CURRENT RANGE | 30A |
| RATED POWER | 1500W |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p |
| VOLTAGE TOLERANCE Note.3 | ±5.0% |
| LINE REGULATION | ±1.0% |
| LOAD REGULATION | ±2.0% |
| SETUP, RISE TIME Note.6 | 500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load(for 5~36V) ; 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load(for 48V) |
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load |
| INPUT | VOLTAGE RANGE Note.4 | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz |
| EFFICIENCY (Typ.) | 86% |
| AC CURRENT | 1.2A/115VAC 1A/230VAC |
| INRUSH CURRENT(max.) | COLD START 30A/115VAC 60A/230VAC |
| LEAKAGE CURRENT | 0.25mA / 240VAC |
| PROTECTION | OVER CURRENT | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 55.2~64.8V |
| Protection type : Shut down o/p voltage, re-power on to recover |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70°C (Refer to output load derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +80°C , 10 ~ 95% RH |
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50 °C) |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| SAFETY & EMC | SAFETY STANDARDS | UL1310 Class 2(except for LPV-60-5), CAN/CSA C22.2 No. 223-M91(except for LPV-60-5,LPV-60-48), IP67 approved ; design refer to TUV EN60950-1, EN61347-2-13 |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH |
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B |
| HARMONIC CURRENT | Compliance to EN61000-3-2 Class A, EN61000-3-3 |
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A |
