15A 250VAC Long Plunger Electrical Limit Switch

Name: 15A 250VAC Long Plunger Electrical Limit Switch
Brand: all-electronics-online.com
SKU: 754149935
Availability: InStock
Rating: 5 (42 reviews)

Price:	US $ 1.1-1.2/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

1.Features&Application:

Rating 10A 125/250VAC
Initial contact resistance 25mΩ Max.
Initial insulation resistance 100 mΩ Min. (At 500V DC)
Shock resistance 1000m/s2 max.
Malfunction 300m/s2 max.
Vibration resistance 10-55Hz, 1.5mm double amplitude
Expected life 1, 000, 000 min.
Operation speed 0.01mm-50cm/s
Protection degree IP64
Ambient temperature 10 to +80° C
Ambient humidity 95%RH max.
Mechanical expected life 1, 000, 000 min.
Electrical expected life 500, 000 min.

Adopt outer shell with intensive plastic and sealed construction,better mechanical stength and water-proof and oil-proof;

Side fixed form and swift contact;

Variety of levers.

Widely used in mechanical equipment,automatic machine,and instrument,electro motion tool etc.

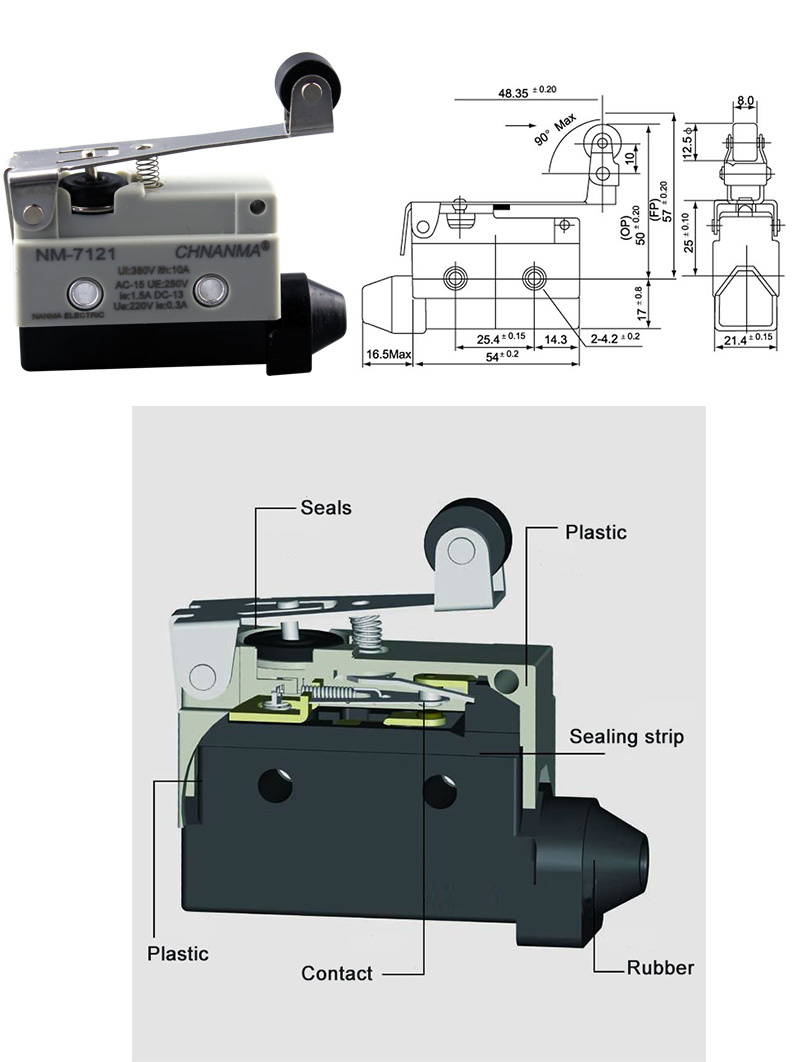

2.Product display &drawing show

3.Specification

Rated voltage	Non-inductive load				Inductive load		Inrush current
	Resistive load		Inductive load		Moto load
	N.C	N.O	N.C	N.O	N.C	N.O	N.C	N.O
125 VAC	10		3	1.5	10		5	2.5
250 VAC	10		2.5	1.25	10		3	1.5
480VAC	3		1.5	0.75	2.5		1.5	0.75
8 VDC	10		3	1.5	6		6	5
14 VDC	10		3	1.5	6		6	5
30 VDC	8		3	1.5	6		5	2.5
125 VDC	0.5		0.4		0.05		0.05
250 VDC	0.25		0.2		0.03		0.03

Note:
1.Inductive load has a power factor of 0.4min(AC)and a time constant of 7 msec.Max.(DC)
2.Lamp load has an inrush current of 10 times the steady-state current,while moto load has an inrush current of 6 times the steady-state current.

Rating		10A 125/250VAC
Initial contact resistance		25mΩ max.
		25mΩ
Initial insulation resistance		100 mΩ min. (At 500V DC)
		100 mΩ ( 500V DC)
Dielectric strength	Between non-consecutive terminals	Between non-consecutive terminals	1,000Vrms , 50/60Hz for 1 min
			1,000Vrms , 50/60Hz 1
Between non-current carrying metal parts and each terminal		1,500Vrms, 50/60Hz for 1 min
		1,500Vrms, 50/60Hz 1
Between ground and each terminal		1,500Vrms , 50/60Hz for 1 min
		1,500Vrms , 50/60Hz 1

4.Operating Characteristics

Model	NM-7121
OF Max	180g
RF Min	50g
PT Max	11.0mm
OT Min	3.0mm
MD Max	2.4mm
EP Max
OP mm	40±1mm

5.Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

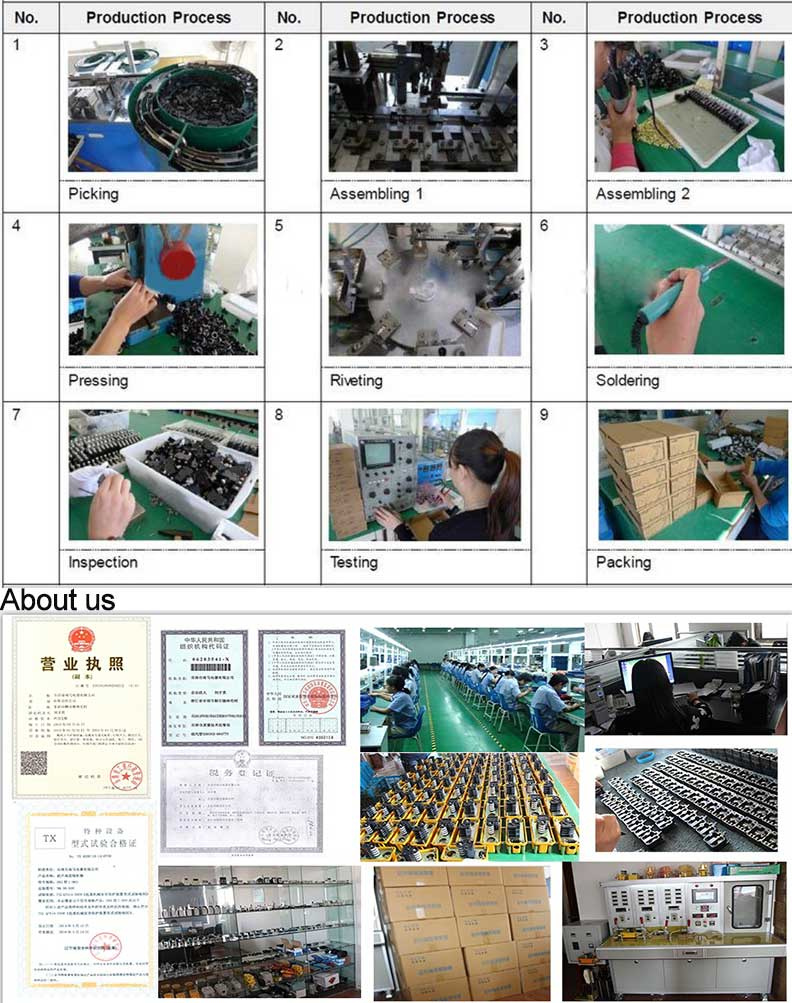

6.Production line

Double Cicuit Type of Limit Switch

7.Customer's questions
Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

Prod Model:	NM-7121
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	ABS Plastic
IP:	64
Max. Current:	10A
Max. Voltage:	AC250V
Operating Temperature:	-10~80 Degree
Electrical Life:	100,000 Times Above
Mechanical Life:	1000,000 Times Above
Operating Speed:	0.1mm-50cm/S
Feature:	Side Fixed Form and Swift Conta
Pressing Type:	Spring Roller
Protection:	Waterproof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Form:	Duplex Type
Application:	Mechanical Equipment
Brand:	Chnanma

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
