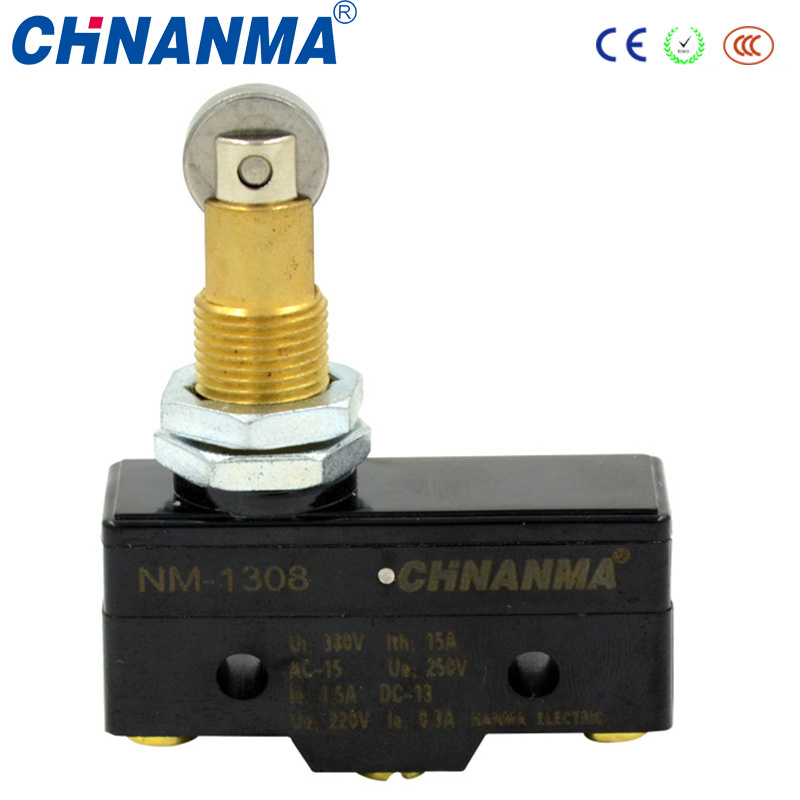

15A Panel Mount Cross Roller Plunger Micro Switch

1. Switch Feature:
Tip material: Silver tip
Contact material: Brass
Level material:  stainless steel top roller plunger
Ambient operating temperature: 25°C to 80°C (with no icing)
Ambient operating humidity: 35% to 85%RH

2.Specification

Rated voltage	Non-inductive load				Inductive load
	Resistive load		lamp load		Inductive load		Moto load
	N.C	N.O	N.C	N.O	N.C	N.O	N.C	N.O
125 VAC	15	15	15	15	5	2.5	Max 30	Max 15
250 VAC	15	15	15	15	3	1.5
500 VAC	3	3	2.5	2.5	1.5	0.75
8 VDC	15	15	15	15	5	5
14 VDC	15	15	1	1	5	5
30 VDC	6(2)	6	5	5	5	5
125 VDC	0.4	0.4	0.05	0.05	0.05	0.05
250 VDC	0.2	0.2	0.03	0.03	0.03	0.03

Notes:
1. Inductive load has a power factor of 0.4min. (AC) and a time constant or
7msec (DC).
2. Lamp load has an inrush current of 10 times the steady-state current,
while motor load has an inrush current or 6 times the steady-state current.
3.Characteristics

Operating speed	0.01mm to 1m/sec
Operating	Mechanically: 240 operations/min.
frequency	Electrically: 20 operations/min.
Contact resistance	15mΩmax. (initial)
Insulation	100MΩmin. (at 500VDC)
resistance
Dielectric strength	1000VAC, 50/60Hz for 1 minute between
	non-continuous terminals
	2000VAC, 50/60Hz for 1 minute between
	current-carrying part and ground
Vibration	Mechanical durability: 10 to 55Hz
	1.5mm double amplitude
Shock	Mechanical durability:
	Approx. 1,000m/sec2 (approx. 100G's)
	Malfunction durability:
	Approx. 300m/sec2 (approx. 30G's)
Ambient operating	General purpose type: -25°to +80°C
temperature	Sealed type: -15 to 80°C
Humidity	General purpose type: 85%RH max.
	Sealed type: 95%RH
Service life	Mechanically: 20,000,000 operations min
	Electrically: 500,000 operations min.
Weight	Approx. 22 to 58g

4.Definitions of operating characteristics

OF: Operating Force	RF:Releasing Force
TF: Total Force	FP:Free Position
OP: Operating Position	RP:Releasing Position
TTP: Total Travel Position	PT:Pretravel
OT: Overtravel	MD:Movement Differential
TT:Total Travel

Model	NM-1305
OF Max	350g
RF Min	114g
PT Max	0.4mm
OT Min	1.6mm
MD Max	0.05mm
EP Max
OP mm	28.2±0.5

5.Why choose our switches?
1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

6.Production line

7.Customer's questions
Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

Q5:What's the delivery term?
Answer:Both EXW and FOB Ningbo are acceptable.


Q6:What's the payment term?
We could start our discussion about payment term from second order on.

Q7:What's the shipment way?
Answer:Express:DHL, UPS, FedEx, TNT and SF express.
Forwarder:Air shipment or sea shipment.

6.More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!
