15GS-B Slim Reed Plunger Type Micro Switch

Adopt thermostable phenolic plastic crust;
Small contact gap,snap action,high sensitivity and small operating travel;

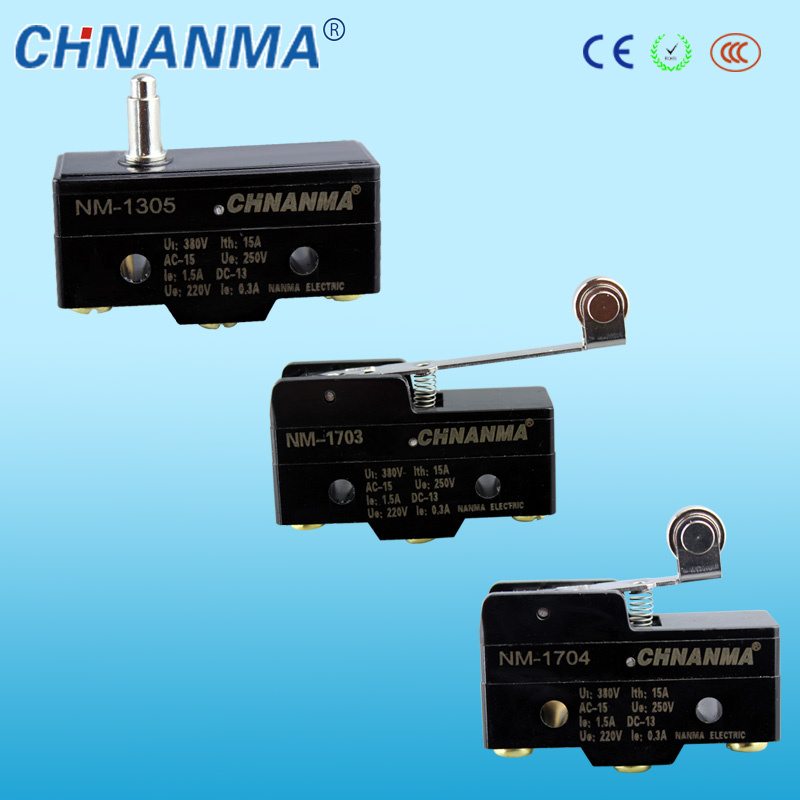

Variety of levers;
Widely used in appliance, electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro tool etc.

Product Display


Rated Voltage(V)	Noninductive load(A)				Lnductive load (A)		Lnrush Current
	Resistive load		Inductive			Motor Load
	NC  NO    NC   NO      NC        NO               NC        NO
125VAC	15		15		5		2.5	30(MAX)    15(MAX)
250VAC	15		15		3		1.5
500VAC	3		2.5		1.5		0.75
8VDC	15		15		5		5
14VDC	15		1		5		5
30VDC	6(2)		5		5		5
125VDC	0.4		0.05		0.05		0.05
250VDC	0.2		0.03		0.03		0.03

Product pictuer





Specification


tem		Data
Operating speed		0.1mm-50cm/s
Operating frequency	Mechanical	20times/min
	Electrical	20times/min
Insulation resistance		100MΩ(Above)DC500V
Contact resistance		25MΩ(intial value)
Withstand voltage	Non-connection wire	1000VAC(keep on working 1min)
	Every terminal	2000VAC(keep on working 1min)
Vibration	Misoperation	10-55Hz Amplitude 1.5mm
Impact	Durable	1000m/s²
	Misoperation	300m/s²
Life	Electrical	200,000above
	Mechanical	2,000,000above
Pertection degree		IP40
Operating temperature		-25'C~80'C
Operating humidity		≤85%RH



F Max	350-450g(3.43-4.41N)
RF Min	114g(0.41N)
PT Max	0.8mm
OT Min	1.6mm
MD Max	0.5mm
OP	28.2±0.8mm
