15GS-B Slim Reed Plunger Type Micro Switch

Name: 15GS-B Slim Reed Plunger Type Micro Switch
Brand: all-electronics-online.com
SKU: 727683492
Availability: InStock
Rating: 4.4 (45 reviews)

Price:	US $ 1.6-2.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Adopt thermostable phenolic plastic crust;
Small contact gap,snap action,high sensitivity and small operating travel;
Variety of levers;
Widely used in appliance, electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro tool etc.

Product Display

Rated Voltage(V)	Noninductive load(A)		Lnductive load (A)		Lnrush Current
	Resistive load	Inductive		Motor Load
	NC NO NC NO NC NO NC NO
125VAC	15	15	5		2.5	30(MAX) 15(MAX)
250VAC	15	15	3		1.5
500VAC	3	2.5	1.5		0.75
8VDC	15	15	5		5
14VDC	15	1	5		5
30VDC	6(2)	5	5		5
125VDC	0.4	0.05	0.05		0.05
250VDC	0.2	0.03	0.03		0.03

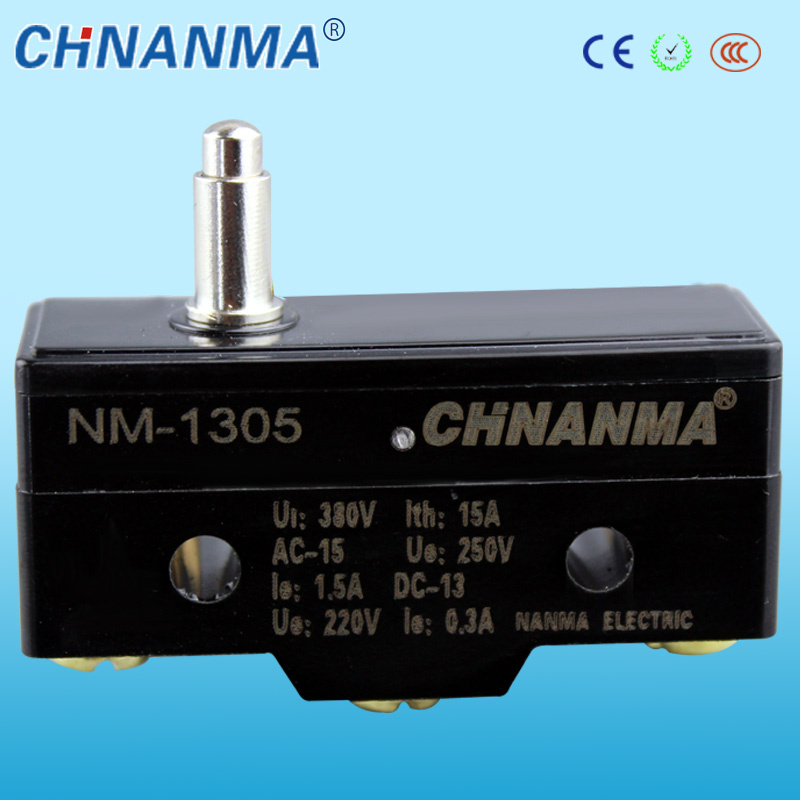

Product pictuer
1305

Specification

tem		Data
Operating speed		0.1mm-50cm/s
Operating frequency	Mechanical	20times/min
Operating frequency	Electrical	20times/min
Insulation resistance		100MΩ(Above)DC500V
Contact resistance		25MΩ(intial value)
Withstand voltage	Non-connection wire	1000VAC(keep on working 1min)
Withstand voltage	Every terminal	2000VAC(keep on working 1min)
Vibration	Misoperation	10-55Hz Amplitude 1.5mm
Impact	Durable	1000m/s²
Impact	Misoperation	300m/s²
Life	Electrical	200,000above
Life	Mechanical	2,000,000above
Pertection degree		IP40
Operating temperature		-25'C~80'C
Operating humidity		≤85%RH

F Max	350-450g(3.43-4.41N)
RF Min	114g(0.41N)
PT Max	0.8mm
OT Min	1.6mm
MD Max	0.5mm
OP	28.2±0.8mm

Prod Model:	NM-1305
Pressing Type:	Lever Roller
Number Of Switch:	Single Control Switch
Protection:	Waterproof
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Breaking Form:	Single Type
Application:	Electronic Equipment
Brand:	Chnanma
