16A SPDT Miniature Electronic Travel Switch Micro SwitchProduct Model: V-16-1AC
Type: Shrapnel-type Structure
Specifications of SPDT Micro Switch / Travel Switch / Miniature Micro Switch:
*Actuator forms: no Lever
*Ratings: 4(16)A / 250(125)VAC
*Connect forms: SPDT
*Terminal types: 4.8*0.5 mm
*Operating force: 1N-3N (100gf-300gf)
*Ambient air temperature: 125°C
Characteristics and usage of SPDT Micro Switch / Travel Switch / Miniature Micro Switch:
*Safe reliable basic switch
*Long life,high reliability, sensitive.
*Variety of levers and contact terminals.
*A variety of models with low operating force to high force are sensitivity.
*Nice appearance,tight configuration,characteristic,quick action and high sensitivity.
Micro Switches controls of "On and Off" action. Easy for people to manipulate the applications. We could offer you high quality switches. Just take one simple action, you can set up all your electronic equipment. All our switch are activated by leaver or button. If you need some special forms, please contact us for further information. We could make
16A Micro Switches to fit kinds of your max-needs.
Parameter of SPDT Micro Switch / Travel Switch / Miniature Micro Switch:
| Item | Value |
| Operating Speed | 0.1mm~1m/s(Related with actuator forms) |
| Operating Frequency | Mechanical 60 cycles/min;Electrical 30 cycles/min |
| Insulation Resistance | >=100 MΩ(500VDC) |
| Contact resistance | <=30mΩ(Initial value) |
Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min |
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts |
AC3750V,50/60Hz,1min |
| Vibration resistance | 10-55Hz,1.5mm Double amplitude |
Shork Resistance | Destruction : OF>0.5N:1000m/s ²(approx.100G)max
OF<=0.5N:500m/s ²(approx.50G)max
Malfunction: OF>0.5N:300m/s ²(approx.30G)max
OF<=0.5N:200m/s ²(approx.20G)max |
| Life Expectancy | Mechnical>=5000000 cycles
Electrical>=50000 cycles |
| Degree of protection | IEC IP67 |
| Degree of protection against electric shock | Class I |
| PTI(Tracking Resistance) | 175 |
| Ambient air temperature | 125Degree60%RH below(No ice and dew) |
| Ambient air humidity | 85% Rhbelow(about +5~+35Degree) |
| Weight | Approx.5.95g(No lever) |
Application of SPDT Micro Switch / Travel Switch / Miniature Micro Switch:
Apply to microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, Water heater, electric drill, electric radiator, joystick, TV game, time recorder, solder gun, mixer, Food processor, juice maker, alarm, mixer, shredder machine, etc.
High quality precision can satisfy most industries including automotive, white goods, security, vending and office automation and include standard types, low torque sealed switches and a number of industry specific models.
Brief Introduction of Our Company:
Xiamen Universal Electronic Co., Ltd, is a professional company of switch control device and semiconductor component separator, shutter motors etc electrical appliance company. After years of efforts of all colleagues, the support of customers and suppliers, we now have the business department of the electronics switch and Integrated Department of Market Operation. The business department of the electronics switch is engaged in R & D and manufacturing of the medium and small electronic switches; The Integrated Department of Market Operation is responsible for the Integration Services of information gathering, selling, trading and so on. Our products cover a wide range, including micro switch, tact switch, push switch, metal dome switch, relay, low-voltage devices, rectifier bridge, ect. Those products are widely exported to more than 40 countries all over the world.

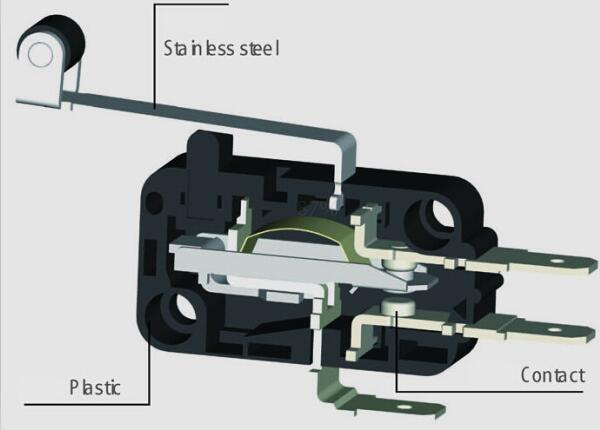

Structure of SPDT Micro Switch / Travel Switch / Miniature Micro Switch:

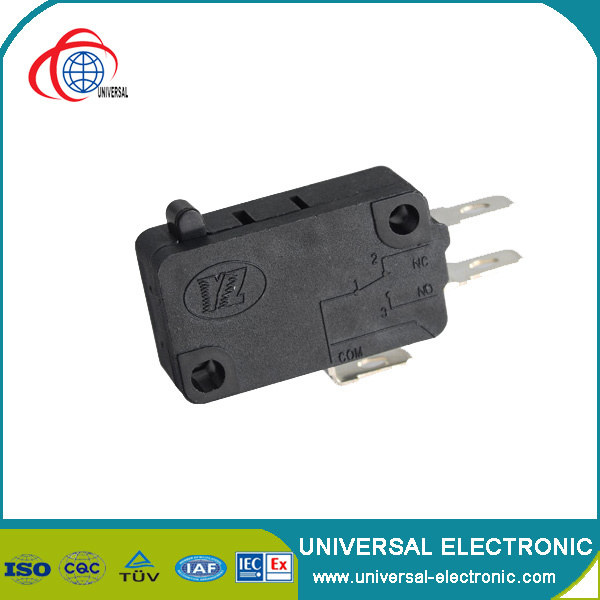

Picture of SPDT Micro Switch / Travel Switch / Miniature Micro Switch:

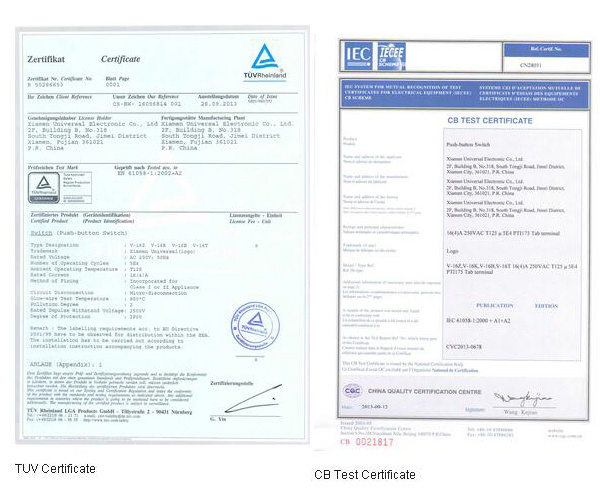

Certificates:
