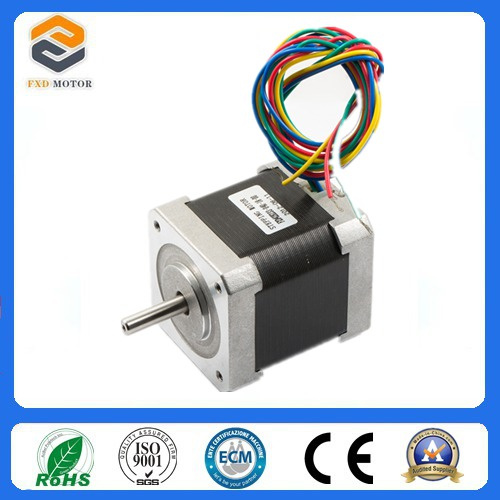

2 Phase 6 Wire DC Stepper Motor /Step Motor/Stepping Motor/Gear Motor
Product description:
| Model:FXD 57 H 4 47 -200 -18 | General Info | |
| | Step angle accuracy | ±5% |
| Note: Fuxianda | Temperature rise | 80K Max |
| Motor dia or square size | Ambient temperature | 20-+50ºC |
| Hybrid stepper motor | Insulation resistance | 100M Min.500VDC |
| Phase number | Dielectric strenght | 500VAC.3mA,1 minute |
| Motor length | IP Class | IP40 |
| Phase current multiply by 100 | Insulation Class | Class B |
| Step angle multiply by 10 | | |
Motor specification
Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | (Ω)/25 ºC | mH | N.m | No. | g.cm | g.cm | Kg |
| FXD57H447-200-18 | 1.8 | 47 | 2 | 1.5 | 2 | 0.78 | 8 | 500 | 275 | 0.6 |
| FXD57H447-280-18 | 1.8 | 47 | 2.8 | 0.75 | 2 | 1.1 | 8 | 500 | 275 | 0.6 |
| FXD57H447-140-18 | 1.8 | 47 | 1.4 | 3 | 8 | 1.1 | 8 | 500 | 275 | 0.6 |
| FXD57H456-200-18 | 1.8 | 56 | 2 | 1.8 | 3.6 | 1.17 | 8 | 700 | 300 | 0.77 |
| FXD57H456-280-18 | 1.8 | 56 | 2.8 | 0.9 | 3.6 | 1.65 | 8 | 700 | 300 | 0.77 |
| FXD57H456-140-18 | 1.8 | 56 | 1.4 | 3.6 | 14.4 | 1.65 | 8 | 700 | 300 | 0.77 |
| FXD57H467-200-18 | 1.8 | 67 | 2 | 2.4 | 4.6 | 1.5 | 8 | 900 | 570 | 1.2 |
| FXD57H467-280-18 | 1.8 | 67 | 2.8 | 1.2 | 4.6 | 2.1 | 8 | 900 | 570 | 1.2 |
| FXD57H467-140-18 | 1.8 | 67 | 1.4 | 4.8 | 18.4 | 2.1 | 8 | 900 | 570 | 1.2 |
| FXD60H488-200-18 | 1.8 | 88 | 2 | 3 | 6.8 | 2.2 | 8 | 1000 | 840 | 1.8 |
| FXD57H488-280-18 | 1.8 | 88 | 2.8 | 1.5 | 6.8 | 3.1 | 8 | 1000 | 840 | 1.8 |
| FXD57H488-140-18 | 1.8 | 88 | 1.4 | 6 | 27.2 | 3.1 | 8 | 1000 | 840 | 1.8 |
Applications:
The stepper motor manufactured by us has wide range of application like robots, electronic automatic equipment, medical instrument, advertisementing instrument, lighting& audio equipment, printer, textile machinery, CNC router etc.
Note: If you have some different specifications, we can product stepper motor as your special requirements.
Web: http://fxdmotor.en.made-in-china.com/ Phone:+86 0519 83666368
http://www.fxdmotors.com Mob: 15295151006Why choose us? 1. Environmental friendly
2. In time delivery
3. Negotiable and competitive price
4. CE, ROHS, SGS certification
5. In time after-sale service
6. 2-year guarantee period
7. Custom products
Changzhou fuxianda Electromechanical Co., Ltd is established in November 2011. Our company is a factory with products Brushless DC motors, Hybrid stepper motors, gearmotors and matched drivers.
Changzhou fuxianda Electromechanical Co., Ltd also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motor, PM synchronous motor and Brush DC motor. We export our motors to more than 10 countries such as United States, France Italy, South Africa and Russia.
The Fuxianda product line is sold to major manufacturing companies for industry for automation, medical and health care equipment, printer machines, packing devices, information technology, household appliance products, and automobile.
We have an engineering team with many years of experience in application engineering, design engineering with the latest advances equipment. Our engineering staff provides the finest quality product with service after the product is delivered to our customers.
The possession of many excellent mechanical-electronical engineers and marketing personnel make our company skillful at providing customers with the plan of products integration.
Most of our products are CE approved. Our company adheres to principles of "Providing green products" and all of our products are RoHS compliant.
As a global supplier, Changzhou fuxianda electromechanical Co., Ltd scrupulously follows the guideline of international commercial rules and practices. We have achieved our reputation of cooperation with our customers over the years. Our Goal is to "Win the market with quality and service" which is the common voice of every Changzhou fuxianda Motor team member.
Good quality, reasonable price, on time delivery, efficient service is our pursuit. We are looking forward to cooperating with more friends in the future.
