3 Phase 57mm Brushless DC Motor /BLDC Motor/Gear Motor for Textile Machinery, CNC

Name: 3 Phase 57mm Brushless DC Motor /BLDC Motor/Gear Motor for Textile Machinery, CNC
Brand: all-electronics-online.com
SKU: 751240715
Availability: InStock
Rating: 4.3 (135 reviews)

Price:	US $ 8-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

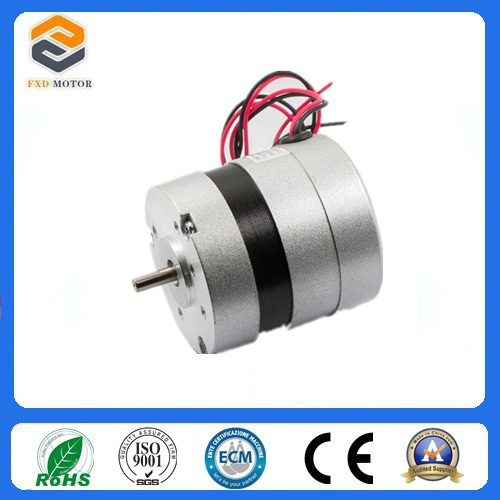

3 Phase 57mm Brushless DC Motor /BLDC Motor/Gear Motor for Textile Machinery, CNC

Product description:
1.Model Number: FXD57bl-001
2.Phase: 3 Phase
3.Lead Wire(No.): 8 wires
4.Shape: Rounded
5.Motor OD: 57mm(2.24inch)
6.Speed:0-10000 rpm adjusted
7.Applications: Use for Robots bldc motor, electronic automatic equipment bldc motor, medical instrument BLDC motor, advertisementing instrument bldc motor, audio equipment bldc motor, textile machinery brushless motor. Cnc brushless dc motor.

Gemeral info:

Model No: FXD57BL	Type: Brushless dc motor
Widing type: Star/Delta	Hall Effect angle: 120 degree electric angle
Nuber of the phase: 3-Phase	Shaft runout: 0.025mm
Radial play: 0.06mm/50g	End play: 0.05mm/50g
Max radial force: 28N/20mm	Max axial force: 15N
Insulation class: Class B	Ip class: Ip40
Dielectric Strength: 500VDC for one minite	Insulation resistance: 100MΩmin 500VDC

Electric Connection:

Lead No.	Lead Color	Lead Gauge	Function	Description
1	Red	UL3266/26AWG	VCC	SUPPLY VOLTAGE FOR HALL SENSORS
2	Black		GND	GROUND FOR HALL SENSORS
3	Yellow		HALL A	SINGLE OF HALL A
4	Green		HALL B	SINGLE OF HALL B
5	Blue		HALL C	SINGLE OF HALL C
1	Yellow	UL3266/20AWG	PHASE U	MOTOR PHASE U
2	Green		PHASE V	MOTOR PHASE V
3	Blue		PHASE W	MOTOR PHASE W

Electrical specification:

Model	No. ofPhase	Rated voltage	Rated speed	Rated torque	Rated power	Mass	Body length
Model	Phase	VDC	rpm	N.m	w	Kg	mm
FXD57BLDC-001A	3	36	4000	0.055	23	0.30	45
FXD57BLDC-002A	3	36	6000	0.08	50	0.35	55
FXD57BLDC-003A	3	36	4000	0.22	92	0.50	75
FXD57BLDC-004A	3	24	4000	0.32	133	0.65	95
FXD57BLDC-005A	3	24	4000	0.43	180	0.80	115

Note: If you want different specification,we can product brushless dc motor as your special requirements.

Prod Model:	FXD57bl-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed Of The Motor:	500-10000 Rpm
Power Of The Motor:	1-100 Watts
Lead Wire:	8 Wires
Motor Od:	57mm
Speed:	0-10000 Rpm Adjusted
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brushless
Type:	Brushless DC Motor
Certification:	CE, RoHS
Brand:	Fxd Motors
