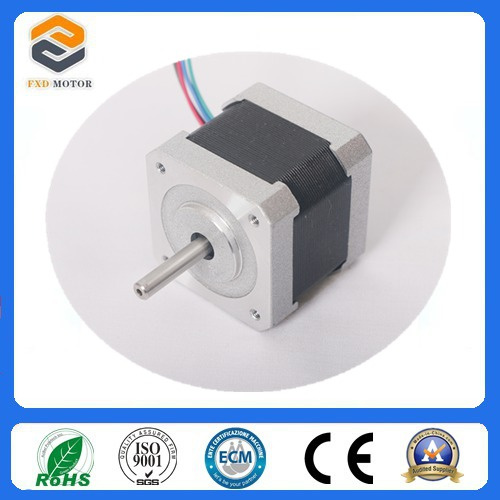

NEMA 17 Two Phases Stepping Motor/Gear Motor for Textile Machine
Item Specifications:
1. NEMA17 Hybrid Stepper Motor
2. Model Number: FXD42H434 - 095-09
3. Phase: 2 Phase
4. Lead Wire (No. ): 4wires
5. Structure: Hybrid
6. Step Angle: 0.9 degree
7. Motor Height: 34mm
8. Current: 1.0A
9. Resistance: 4.2Ω
10. Inductance: 4mH
11. Motor Weight: 0.22KG
12. Holding Torque: 1.6Kg. Cm
13. Speed: Low / High speed
14. Certification: CE, RoHS
15. Shape: Square
16. Applications: Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor, advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor. CNC router stepper motor.
Gemeral info.| Model NO. FXD42H434-095-09 | Step Angle :0.9degree |
| Temperature Rise:80ºC Max | Ambient Temperature:-20ºC+50ºC |
| Insulation Resistance:100MΩ Min., 500VDC | Dielectric Strength:500VAC for one minute |
| Shaft Radial Play: 0.02Max. (450 g-load) | Shaft Axial Play:0.08Max. (450 g-load) |
| Max. Radial force :28N (20mm from the flange) | Max. Axial force:10N |

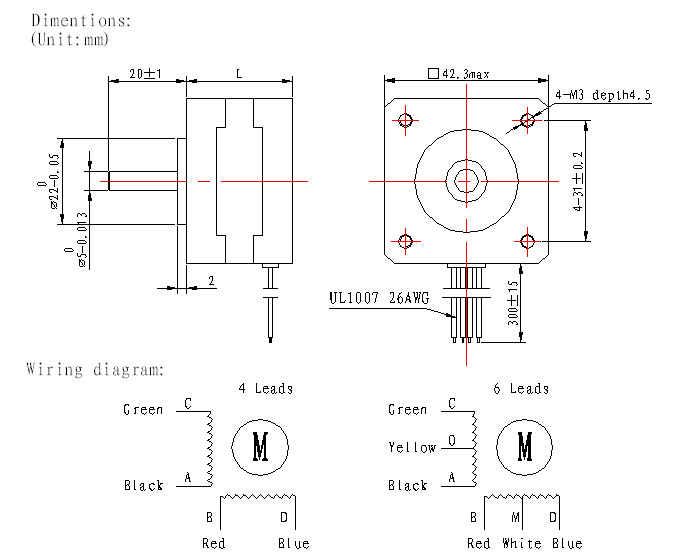

Dimentions:
Motor Specifications:| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm | Kg |
| FXD42H434-095-09 | 0.9 | 34 | 0.95 | 4.2 | 4 | 1.58 | 6 | 120 | 35 | 0.22 |
| FXD42H434-060-09 | 0.9 | 34 | 0.6 | 10 | 9.5 | 1.58 | 6 | 120 | 35 | 0.22 |
| FXD42H434-031-09 | 0.9 | 34 | 0.31 | 38.5 | 33 | 1.58 | 6 | 120 | 35 | 0.22 |
| FXD42H234-133-09 | 0.9 | 34 | 1.33 | 2.1 | 4.2 | 2.2 | 4 | 120 | 35 | 0.22 |
| FXD42H440-120-09 | 0.9 | 40 | 1.2 | 3.3 | 3.4 | 2.59 | 6 | 180 | 54 | 0.28 |
| FXD42H440-080-09 | 0.9 | 40 | 0.8 | 7.5 | 6.7 | 2.59 | 6 | 180 | 54 | 0.28 |
| FXD42H440-040-09 | 0.9 | 40 | 0.4 | 30 | 30 | 2.59 | 6 | 180 | 54 | 0.28 |
| FXD42H240-168-09 | 0.9 | 40 | 1.68 | 1.65 | 3.2 | 3.3 | 4 | 180 | 54 | 0.28 |
| FXD42H448-120-09 | 0.9 | 48 | 1.2 | 3.3 | 4 | 3.17 | 6 | 220 | 68 | 0.35 |
| FXD42H448-080-09 | 0.9 | 48 | 0.8 | 7.5 | 10 | 3.17 | 6 | 220 | 68 | 0.35 |
| FXD42H448-040-09 | 0.9 | 48 | 0.4 | 30 | 38 | 3.17 | 6 | 220 | 68 | 0.35 |
| FXD42H248-168-09 | 0.9 | 48 | 1.68 | 1.65 | 4.1 | 4.4 | 4 | 220 | 68 | 0.35
|
Note: If you have some different specifications, we can product stepper motor as your special requirements.
Why choose us? 1. Environmental friendly
2. In time delivery
3. Negotiable and competitive price
4. CE, ROHS, SGS certification
5. In time after-sale service
6.2-year guarantee period
7. Custom products
Changzhou fuxianda Electromechanical Co., Ltd is established in November 2011. Our company is a factory with products Brushless DC motors, Hybrid stepper motors, gearmotors and matched drivers.
Changzhou fuxianda Electromechanical Co., Ltd also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motor, PM synchronous motor and Brush DC motor. We export our motors to more than 10 countries such as United States, France Italy, South Africa and Russia.
The Fuxianda product line is sold to major manufacturing companies for industry for automation, medical and health care equipment, printer machines, packing devices, information technology, household appliance products, and automobile.
We have an engineering team with many years of experience in application engineering, design engineering with the latest advances equipment. Our engineering staff provides the finest quality product with service after the product is delivered to our customers.
The possession of many excellent mechanical-electronical engineers and marketing personnel make our company skillful at providing customers with the plan of products integration.
Most of our products are CE approved. Our company adheres to principles of "Providing green products" and all of our products are RoHS compliant.
As a global supplier, Changzhou fuxianda electromechanical Co., Ltd scrupulously follows the guideline of international commercial rules and practices. We have achieved our reputation of cooperation with our customers over the years. Our Goal is to "Win the market with quality and service" which is the common voice of every Changzhou fuxianda Motor team member.
Good quality, reasonable price, on time delivery, efficient service is our pursuit. We are looking forward to cooperating with more friends in the future.
