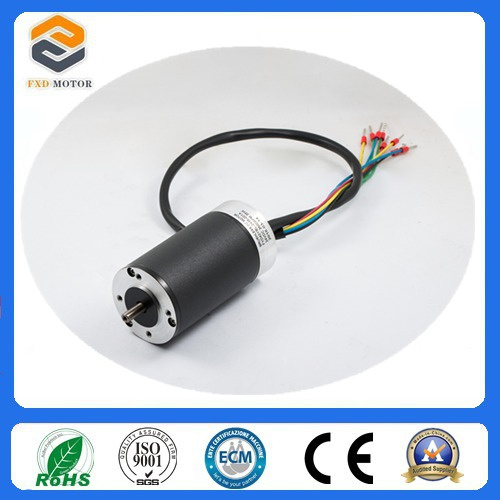

42mm 3 Phase Gear BLDC Motor (FXD42YBL SERIES)
Product descripion:
BLDC Motor for Medical Device (FXD42YBL SERIES) is used very efficiency on different electromechanical device.
Our FXD42YBL Series bldc motor have lots of advantages as below:
1.Nema 14 Brushless dc motor
2.Model Number: Fxd42ybl-001
3.Phase: 3 Phase
4.Lead Wire(No.): 8 wires
5.Shape: Rounded
6.Motor OD: 42mm(1.65inch)
7.Speed:0-10000 rpm adjusted
8.Applications: Use for Robots bldc motor, electronic automatic equipment bldc motor, medical instrument BLDC motor, advertisementing instrument bldc motor, audio equipment bldc motor, textile machinery brushless motor. Cnc brushless dc motor.
Gemeral info.| Model No: FXD42YBL | Type: Brushless dc motor |
| Widing type: Star/Delta | Hall Effect angle: 120 degree electric angle |
| Nuber of the phase: 3-Phase | Shaft runout: 0.025mm |
| Radial play: 0.06mm/50g | End play: 0.05mm/50g |
| Max radial force: 28N/20mm | Max axial force: 15N |
| Insulation class: Class B | Ip class: Ip40 |
| Dielectric Strength: 500VDC for one minite | Insulation resistance: 100MΩmin 500VDC |
Electric Connection:| Lead No. | Lead Color | Lead Gauge | Function | Description |
| 1 | Red | UL3266/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS |
| 3 | Yellow | HALL A | SINGLE OF HALL A |
| 4 | Green | HALL B | SINGLE OF HALL B |
| 5 | Blue | HALL C | SINGLE OF HALL C |
| 1 | Yellow | UL3266/20AWG | PHASE U | MOTOR PHASE U |
| 2 | Green | PHASE V | MOTOR PHASE V |
| 3 | Blue | PHASE W | MOTOR PHASE W |

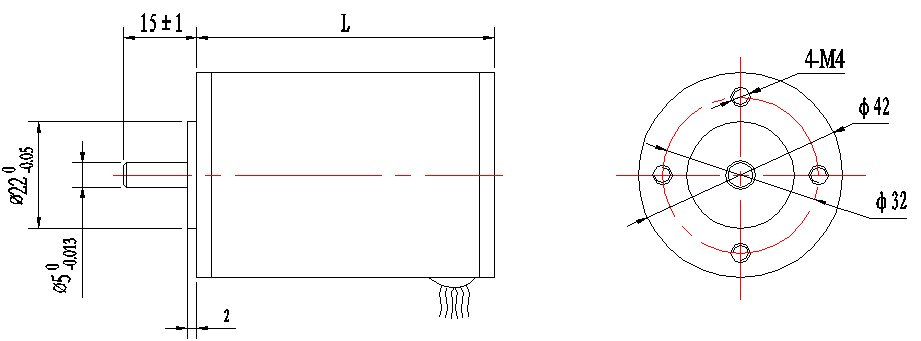

Dimensions diagram:
Electrical specification:| Model | No. ofPhase | Rated voltage | Rated speed | Rated torque | Rated power | Mass | Body length |
| Phase | VDC | rpm | g.cm | w | g | mm |
| FXD42YBL-001 | 3 | 12 | 4000 | 240 | 10 | 200 | 40 |
| FXD42YBL-002 | 3 | 24 | 5000 | 382 | 20 | 200 | 40 |
| FXD42YBL-003 | 3 | 12 | 5000 | 286 | 15 | 300 | 60 |
| FXD42YBL-004 | 3 | 24 | 6000 | 477 | 30 | 300 | 60 |
| FXD42YBL-005 | 3 | 12 | 5000 | 477 | 25 | 400 | 80 |
| FXD42YBL-006 | 3 | 24 | 6000 | 955 | 60 | 400 | 80 |
Note: If you want different specification,we can product brushless dc motor as your special requirements.
