2017 Promotion Air Conditional Relay UL Ce Approval

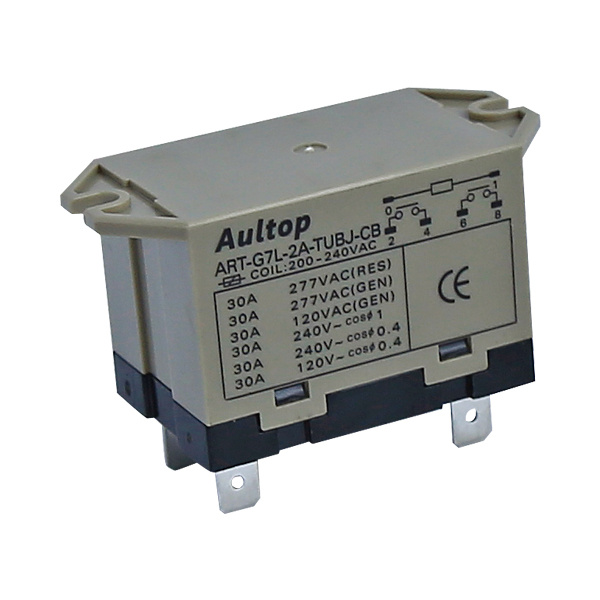

Name: 2017 Promotion Air Conditional Relay UL Ce Approval
Brand: all-electronics-online.com
SKU: 828902955
Availability: InStock
Rating: 4.8 (30 reviews)

Price:	US $ 2-3/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ATR-G7L
Ambient Operating Temperature:	-20 -60 Degree
Other Services:	ODM OEM
Delivery Time:	30 Days After Deposit
Application:	Refrigeration, Air Conditioning and Heating
Life Time(Mechanical):	1 Million Times

Product Description

Feature:
1. A high-capacity, High-dielectric-strength relay, Compatible with Momentary Voltage Drops
2. Wide-Range AC-activated coil that handles 100 to 120 or 200 to 240 VAC at either 50 or 60Hz
3. 250# quick connect termination
4. Miniature size for maximum switching power, particularly for inductive loads.

Product DATA

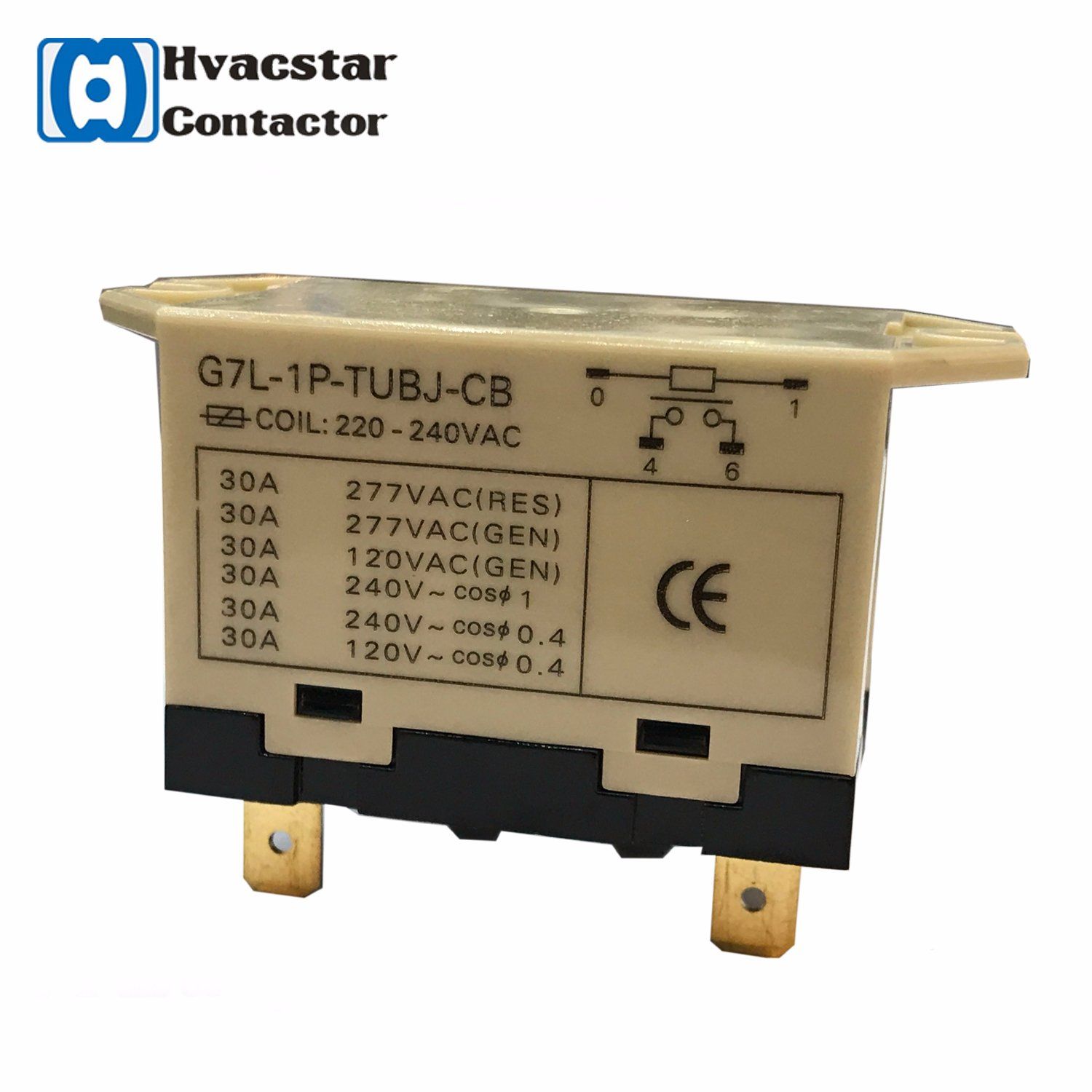

Relay Form	G7L-1P-TUBJ G7L-2P-TUBJ
Load	Resistive load	Inductive load (cos∮ =0.4)		Resistive load		Inductive load
Item	Double break
Relay Material	Ag alloy
Relay Type	30A at 220VAC		25A at 220VAC		25A at 220VAC
Rated Load	30A		25A
Rated carry current	250VAC
Max.switching current	30A		25A

Upper Bracket Mounting (with test button) Quick-connect Terminal

Number of poles	Model	Rated coil voltage	Minimum packing unit
1 pole	G7L-1P-TUBJ	AC: 24, 100/120, 200/240	10 pcs/BOX
		DC: 6, 12, 24, 48, 100
2 poles	G7L-2P-TUBJ	AC:12,24,50,100/120,200/240
		DC: 6, 12, 24, 48, 100

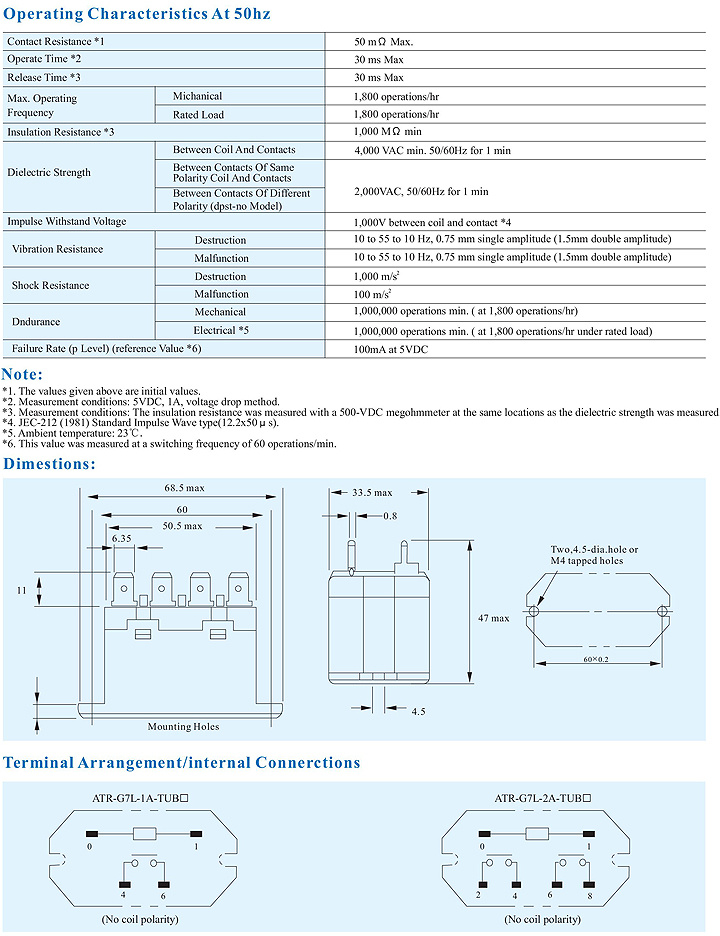

CHARACTERISTICS
Weight:				Approx.90g
Termination:				QC
Construction:				Dust protected
Ambient operationg temperature				-25ºC to 60ºC (with no icing or condensation)

FAQ:
Q1: Can I get a sample for testing?
A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: If quality problem happen we promise re-send the item .
Q4: Do you have inspection procedures for products?
A: Our products 100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q6: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy .

Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.

From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.

We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.

If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
