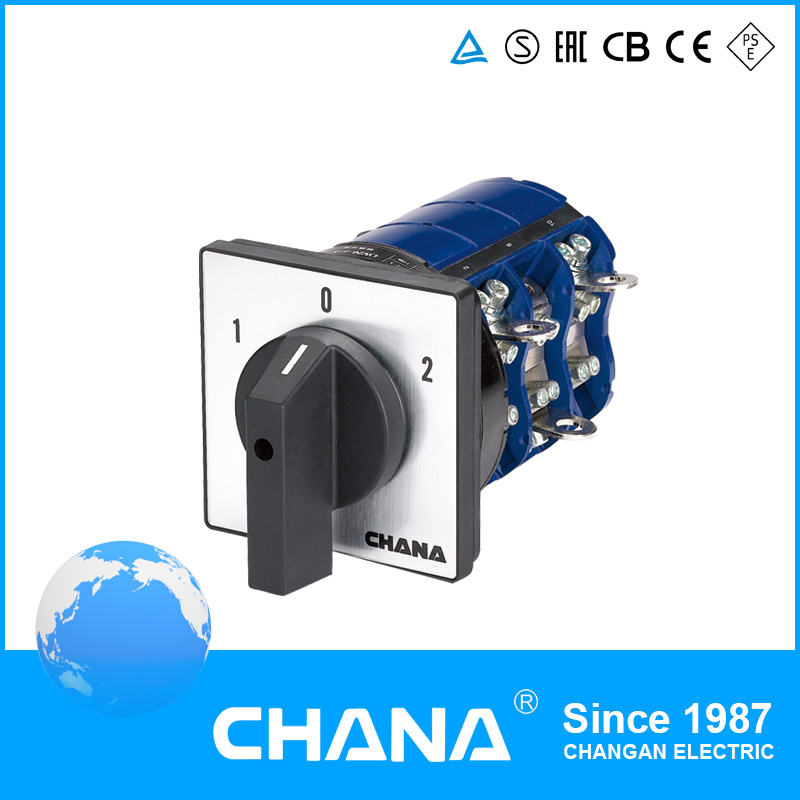

315A Hot Sale Rotary Switch

Name: 315A Hot Sale Rotary Switch
Brand: all-electronics-online.com
SKU: 828730265
Availability: InStock
Rating: 5 (66 reviews)

Price:	US $ 3.8-6.2/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

1. Introduction:

The LW26 series rotary switch mainly applies to 440V and below, AC 50Hz or 240V and below DC circuits. For breaking and closing, change-over of circuits under unfrequently manual operation. And the typical application are: Control switch of 3 phase motors, control switch of switch gear, control switch of instruments, and change-over switch of machinery and welding machine.
The series comply with the IEC60947-3, IEC60947-5-1
The LW26 series have 8 current ratings: 10A, 20A, 25A, 32A, 63A, 125A, 160A and 315A
The LW26 series rotary switch were designed for multiple functions, wide variety of applications
The LW26-10, LW26-25, and LW26-32F have finger protection terminals
Both of them are applicable in circuits when an physical control is required
We can equip protective box for 20A, 25A, 32A and 63A

2. Working conditions

Ambient temperature do not exceed 40 degree, and the average temperature, measured over a period
Of 24 hours, do not exceed 35 degree.
Ambient temperature should not be below - 25 degree
Should Not be installed over 2000m above sea level
The humidity should not exceed 50% when the ambient temperature is 40 degree and higher
Humidty is allowed for lower temperature
Installation conditions
A clean environments is required
Please follow our manual

3. Mechanical life

Mechanical life without load: 0.1x10000000 times, operation frequency is 120times/ hour
Mechanical life with load: 0.03 x 10000000 times, operation frequency is 120 times/ hour

Description	Escutcheon plate	Dimensions (mm)				Installation (mm)
		A	B	C	L	E	F	D1	D2
LW26-10	M0 square	30	30	28	22+8n	20		Φ8	Φ3.2
LW26-20	M1 Square	48	48	43	22+9.6n	36	36	Φ8.5	Φ4.5
	M1 rectangular	48	60	43	22+9.6n	36	36	Φ8.5	Φ4.5
	M2 square	64	64	43	22+9.6n	48	48	Φ10	Φ4.5
	M2 rectangular	64	80	43	22+9.6n	48	48	Φ10	Φ4.5
LW26-25	M1 Square	48	48	45.2	23+12.8n	36	36	Φ8.5	Φ4.5
	M1 rectangular	48	60	45.2	23+12.8n	36	36	Φ8.5	Φ4.5
	M2 square	64	64	45.2	26.5+12.8n	48	48	Φ10	Φ4.5
	M2 rectangular	64	80	45.2	26.5+12.8n	48	48	Φ10	Φ4.5
LW26-32	M2 square	64	64	58	29.2+12.8n	48	48	Φ10	Φ4.5
	M2 rectangular	64	80	58	29.2+12.8n	48	48	Φ10	Φ4.5
	M3 square	88	88	58	29.2+12.8n	68	68	Φ13	Φ6
LW26-63	M2 square	64	64	66	29.2+12.8n	48	48	Φ10	Φ4.5
	M2 rectangular	64	80	66	29.2+12.8n	48	48	Φ10	Φ4.5
	M3 square	88	88	66	29.2+12.8n	68	68	Φ13	Φ6
LW26-125	M3 square	88	88	84	35+26.5n	68	68	Φ13	Φ6
LW26-160	M3 square	88	88	88	35+32.5n	68	68	Φ13	Φ6
LW25-315	M4 square	130	130	126	39.5+38.5n	104	104	Φ16	Φ7

Prod Model:	LW26-315
Current:	25A
Phase:	3 Phase
Approval:	Ce
Type Of Handle:	10 Kinds
Rotary Number:	Single Button
Usage:	Electrical Appliance
Standard:	Standard
Structure:	Self-Locking
Operation:	Open Type
Certification:	CE
Condition:	New
