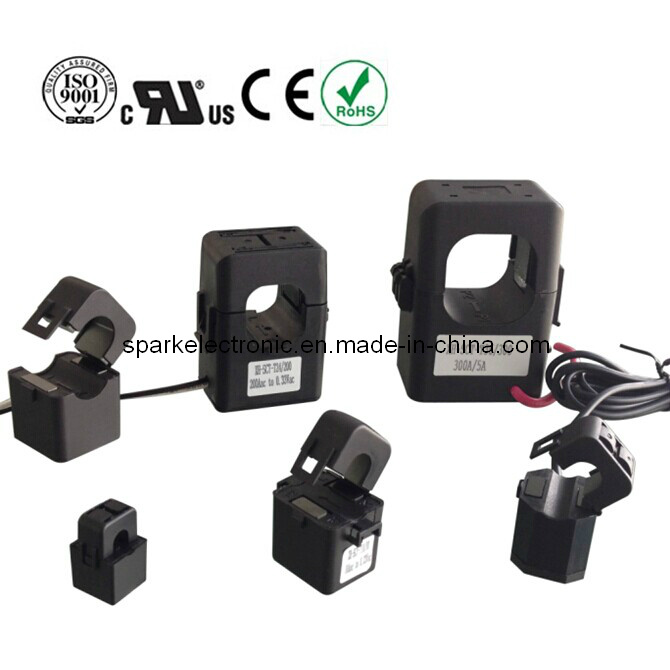

0.333V Output Ce UL ETL Mini Hinged Split Core AC Toroidal Transformer

Name: 0.333V Output Ce UL ETL Mini Hinged Split Core AC Toroidal Transformer
Brand: all-electronics-online.com
SKU: 787694025
Availability: InStock
Rating: 4.5 (129 reviews)

Price:	US $ 8-39/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Split Core Current Transducer Key Specifications/Special Features:

Rated Current 5A to 3000Amp.
Output of 0.333 Volt at rated current
Accuracy: ± 1% from 10% to 150% of Full Scale Range
Phase angle < 2 maximum at 50% rated current
Snap closing/opening feature.
Shrouded core blades for protection during installation.
Core interleaved at joints for accuracy.
No exposed metal parts on assembled transformer.
Internal precision burden resistor across secondary.
Epoxy encapsulated housing.
Accuracy is measured from 10% to 130% of rated current.
Phase angle is measured at 50% of rated current

ModelI. D. Rated AmpsOutputAccuracySIZE (mm )
ABCDE
XH-SCT-07500.75"
(19.1mm)5, 15, 30, 50, 70, 100, 150, 2000.333V1.051.654.116.619.118
XH-SCT-12501.25"
(31.8mm)70, 100, 150, 200, 250, 300, 400, 6001.082.385.326.43232.3
XH-SCT-20002.00"
(50.8mm)400, 600, 800, 1000, 1200, 15001.012012529.652.552
XH-SCT-30003.00" x 5.00"
(76.2mm x127mm)1000, 1200, 1500, 2000.30001.014519930.576130

Prod Model:	XH-SCT-T06/T10/ T16/ T24/36
Phase:	Single
Coil:	Core-Type Transformer

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
