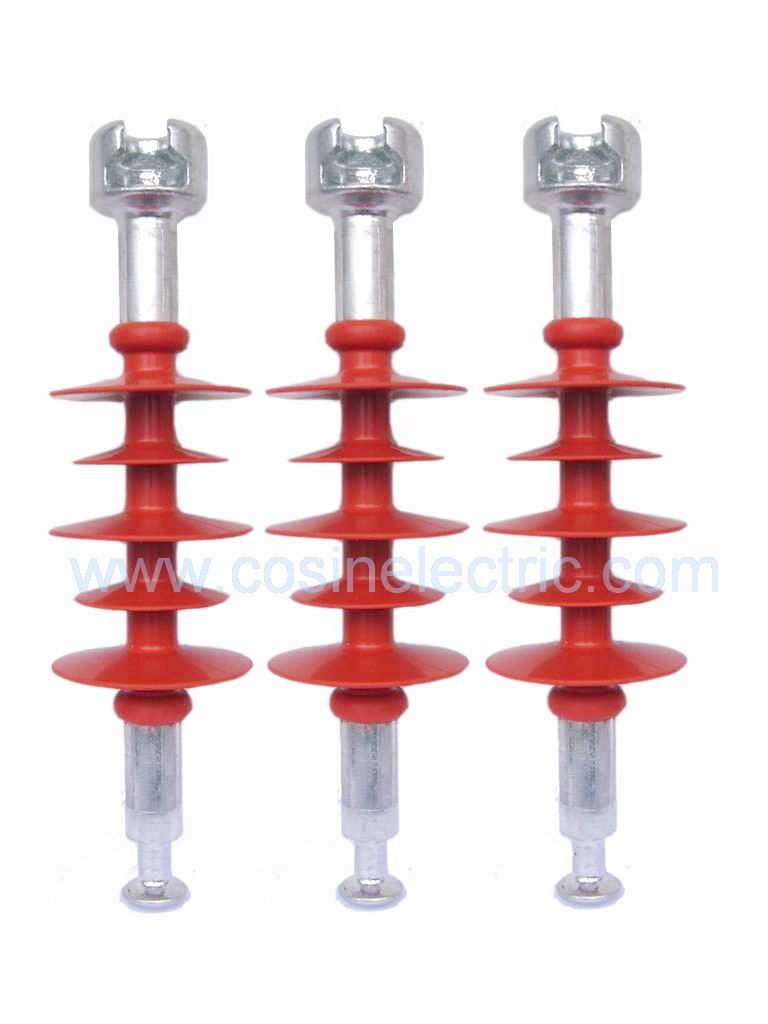

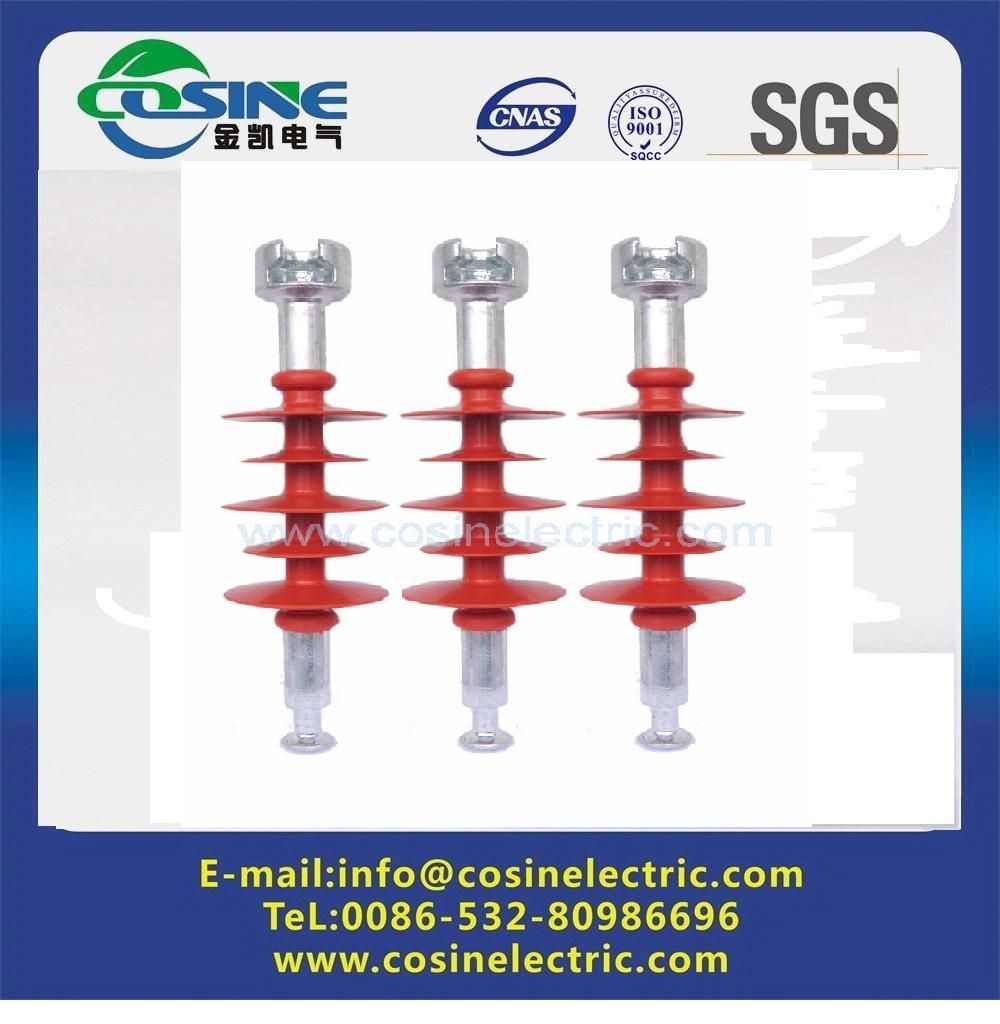

33kv Pin Type Composite Insulator/Silicone Rubber Insulator Fpq-33/12.5
| Price: |
US $ 4.2/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
FPQ-33/12.5 |
| 11kv: |
33kv |
| Application: |
Low-voltage |
| Material: |
Composite Polymer |
| Structure: |
Pin Insulator |
| Type: |
Pin Type Insulator |
| Connection Method: |
Dead End Fitting |
| Size Of Bearing Capacity: |
12.5kn |
| Brand: |
Cie |
Product Description
| Name | Pin Insulator/Composite Insulator/Composite pin insulator/Polymer Pin Insulator |
| Model No. | FPQ-33/12.5 |
| Material | Silicon Rubber / composite |
| Rated Voltage | 33KV |
| Export to Country | USA. Mexico, Argentina. Poland. Ect. |
| Color | Red or Grey |
Technology Data:
This series Pin Insulator/Composite Insulator/Composite pin insulator/Polymer Pin Insulator
Product are composed of silicon rubber pin insulator for sheds/ housing, glass-fiber reinforced epoxy resin rod core and hop DIP galvanized metal fittings. It has good mechanical performance and electric performance compared with porcelain insulators.
For more details about Pin Insulator/Composite Insulator/Composite pin insulator/Polymer Pin Insulator, or other insulator such glass insulator, disc insulator, contact us freely.Company Profile:Qingdao Cosine electrical equipment specializes in supplying insulator and pole line hardware. With high speed of power construction in China and oversea country, QINGDAO COSINE has grown into a leader of exporting of insulator in China.Product:
Our products range from10KV-500KV polymer insulator, 40KN-420KN porcelain insulator and various kinds' pole line hardware. All the insulators have been produced by modern equipment, For example 500KV polymer insulator has been produced by high volume injection machine, which can finish two pieces 500KV at one time. Mention to the porcelain insulator, the vacuum pug mill has been imported from Germany in order control the quality from blank.| Product Range | (1)10KV-500KV Polymer Insulator,
(2)40KN-420KN Porcelain Insulator
(3)40KN-530KN Toughened Glass Insulator
(4)Various kinds' Pole Line Hardware |
| Fitting and Material Range | (1) forged-steel metal fitting
(2)casting steel metal fitting
(3) ducitle cast iron metal fitting
(4) Aluminum fitting
(5) copper fitting
(6)stainless steel fitting
(7)Stamping Steel Fitting |

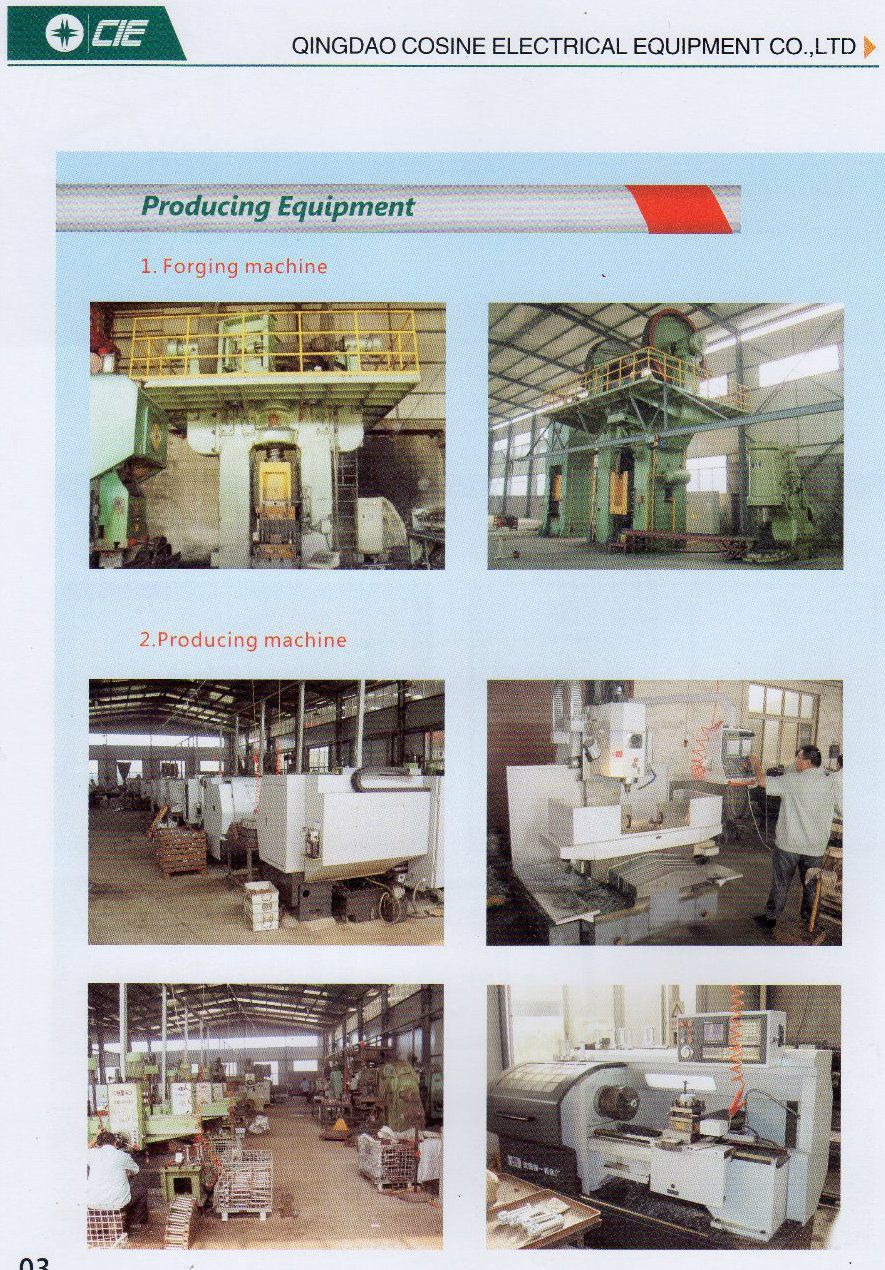

Equipment:
FAQ:Q1: How is the Design & Engineering
A: Experienced and skilled team of designers including CAD designers and 3D designers has the capacity to deliver outstanding designs for your project.
If you require more complex engineering of structures such as overhead transmission and distribution lines design,we can also provide this service also designer fee.
Q2: What's the payment term?
A: We accept T/T, L/C, West Union, Cash,etc.
Q3: What's the delivery time?
A: Usually 2-4 weeks. Or according to quantities
Q4: What's the standard of package?
A: Export standard package or special package as the requirement of customers.
Q5: What kind of product quality your factory offer?
A: Our products with both excellent quality and competitive price. And we offer free sample for your reference.
Q6: Where is your mainly market?
A: We mainly ship to South America, North America, Europe,Asia, etc.Hope you will interest in our composite insulator,looking forward to your inquiry and developing business with you!
Experience: 16 years producing experience from 1999-2015 for insulator and line hardware
Product: Composite insulator, glass insulator and ceramic insulator
SML: From 40KN to 550KN From AC insulator to DC insulator.
Package: Exported free-fumigation
Quality control: Can do all the test according to IEC
Quality control System: Exactly according to ISO9001: 2000
Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.
Engineer term: Have 12 engineers to reply all your questions and offer professional service.
Sale term: All the sale man have been trained every month. And offer best service.
