| Prod Model: |
KP506B |
| Model: |
Kp506b |
| Spectral Response: |
5-14 |
| Sensitive Cell Area: |
2*1 2element |
| Noise: |
80 |
| Offset Voltage: |
0.7V |
| Output Signal: |
3900 |
| Operating Voltage: |
2.2-15V |
| Operating Temp.: |
-30--+70 |
| Storage Temp: |
-40--+80 |
| Material: |
Si+ Matel |
Product Description

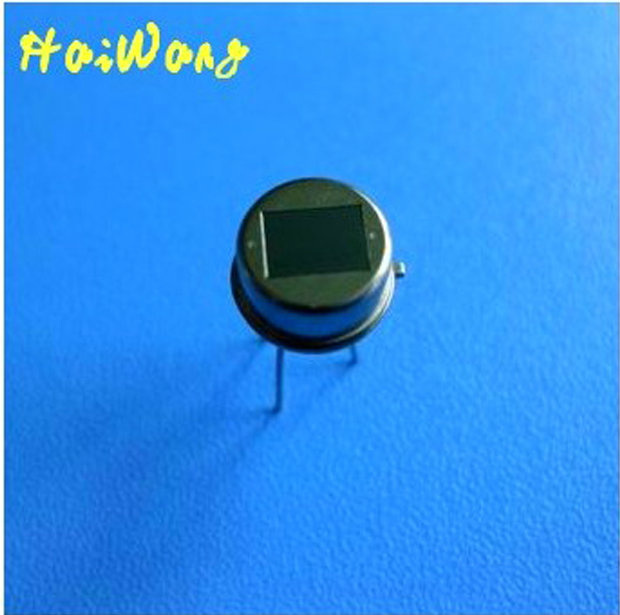

PIR motion Sensor KP506B Pyroelectric Passive Infrared Sensor KP506BDual Elements Big Window Passive PIR Sensor KP506B
360 Degree Detecting Pyroelectric Infrared Motion Sensor KP506B
Brief Introduction:1. Operating Voltage: 2.2-15V
2. Operating Current: 8.5-24 uA
3. Source Voltage: 0.4-1.1V
4. Operation Temp. : -20°C- +70°C
5. Storage Temp: -35°C- +80°C
6. Field of View: 55 ° * 51°
7.Window Size: 4*5mmSpecifactionElectric infrared sensor is the newly-developed product of Hai Wang Corporation, so far it has two types: KB500B and KB506B, it is mainly used for human body reaction, guarding against theft and giving an alarm in public places, they are perfect energy-saving products.
| Product information |
| | |
| Type | KP500B | KP506B | | Encapsulation | T0-5 | | Element size | 2.0mm×1.1mm×Gap 0.9mm Dual,Shuang Yuan | | Window Material | Silicon Si | | Window Thickness | 0.5mm | 0.5mm | | Window Size | 4×3mm | 5.2×3.8mm | | Pass Band | 5-14μm | 5-14μm | | Transmittance | 75% | 75% | | Signal [Vp-p] | 2.2V | 2.2V | | (420°k 1Hz Modulate frequency 0.3-3.0Hz Bandwidth 72.5db Gain) | | Noise | 200mV | 200mV | | (mVp-p) (25) | | Sensitivity | 3300V/W | | | Detectivity | | | | Balance | 20% | 20% | | Operating Voltage | 2.2-15V | | Operating Current | 8.5-24μA | | (VD=10V,Rs=47kΩ,25) | | Voltage very much of source | 0.4-1.1V | | (VD=10V,Rs=47kΩ,25) | | Operating Temperature() | -20- +70 | | Storage Temperature() | -35- +80 | | Field of View(°) | 138°×125° | 55°×51° |
|
Working Principle Pyroelectric infrared sensor would change charge when radiant energy changes. The effect can be used in detecting the change of infrared radiant.The sensors apply to human motion detector,passive infrared burglar alarm and automatic light switch. Based on the same theory, the pyroelectric infrared sensor applies to gas detection with infrared absorption.
Feature1. Low noise, high detection
2. Excellent common mode balance- dual elements
3. To-39, To-5 encapsulation
4. Apply to both narrow and broad band filters
5. Signal channel or double channels pattern
6. Dual pattern apply to burglar alarm
Typical Application 1. Passive infrared burglar alarm: strong anti-interference for strong with light and electromagnetic radiation
2. Human motion detector
3. Human motion detector of ceiling
4. Gas analysis
5. Non-contact infrared measurement
Picture Show

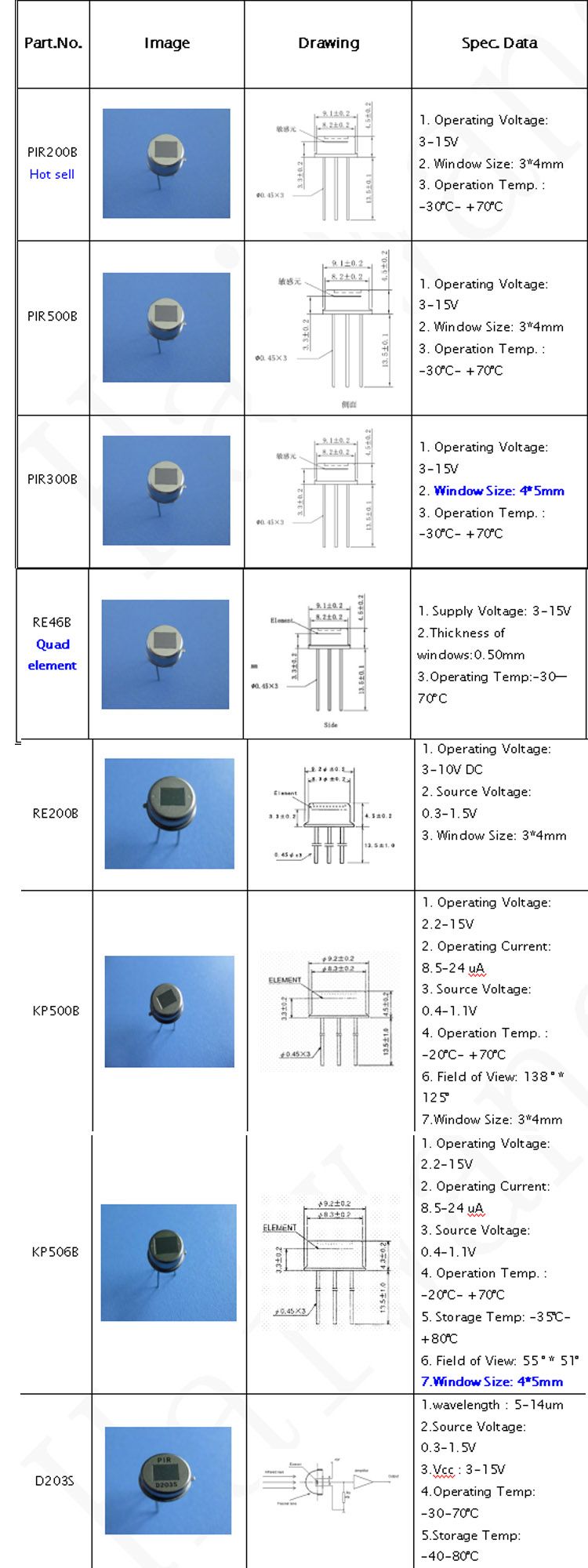

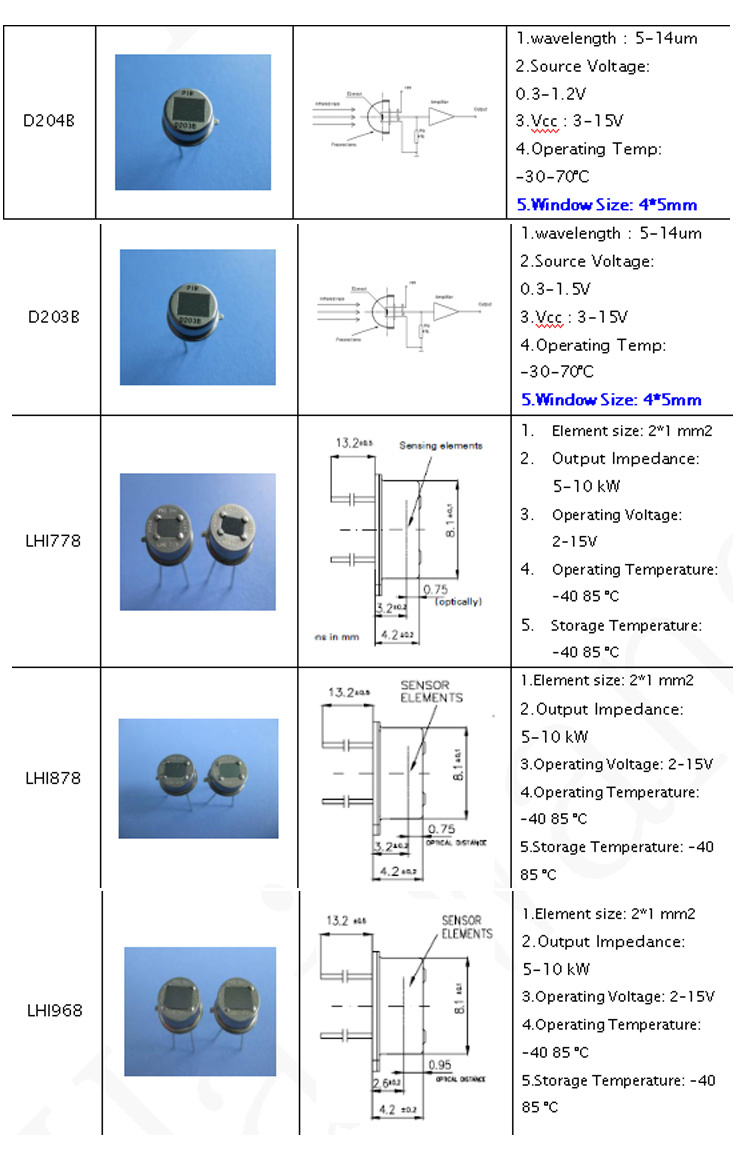

PIR Sensor Series for your choice:
