| Prod Model: |
FEM1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Volatage: |
550-1000V |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
4 |
| Certification: |
CCC |
Product Description

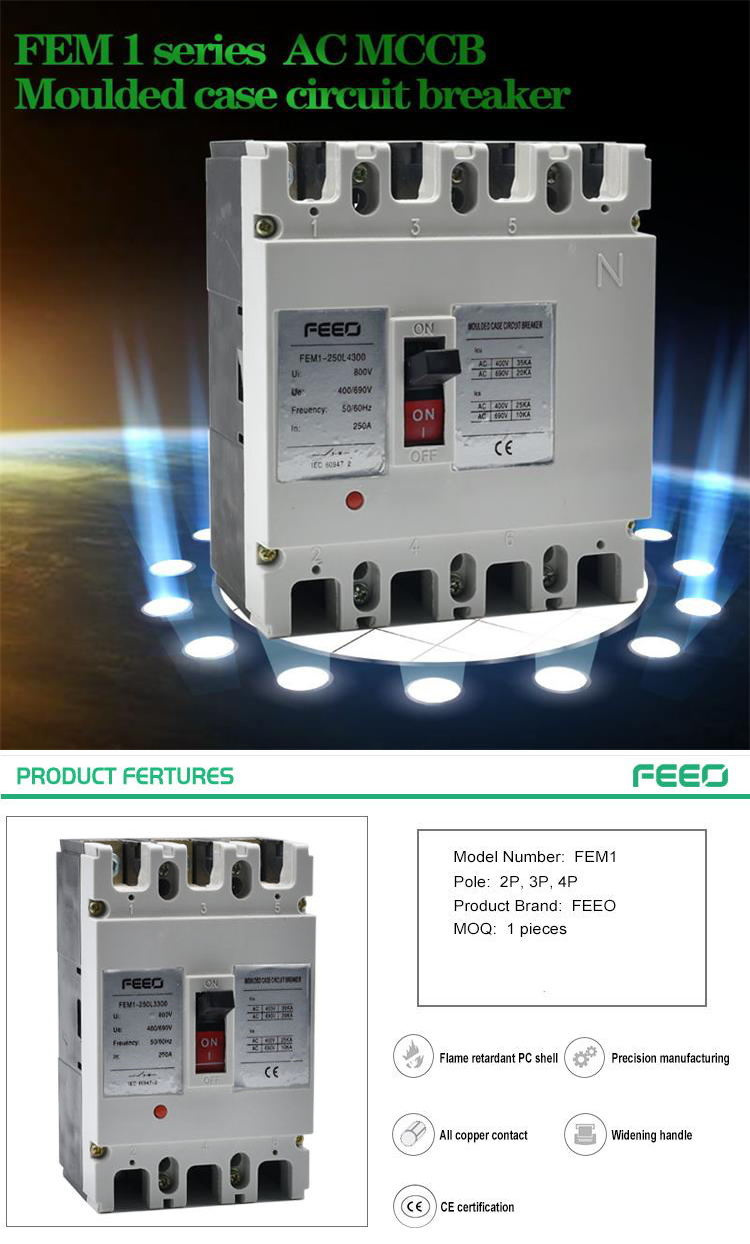

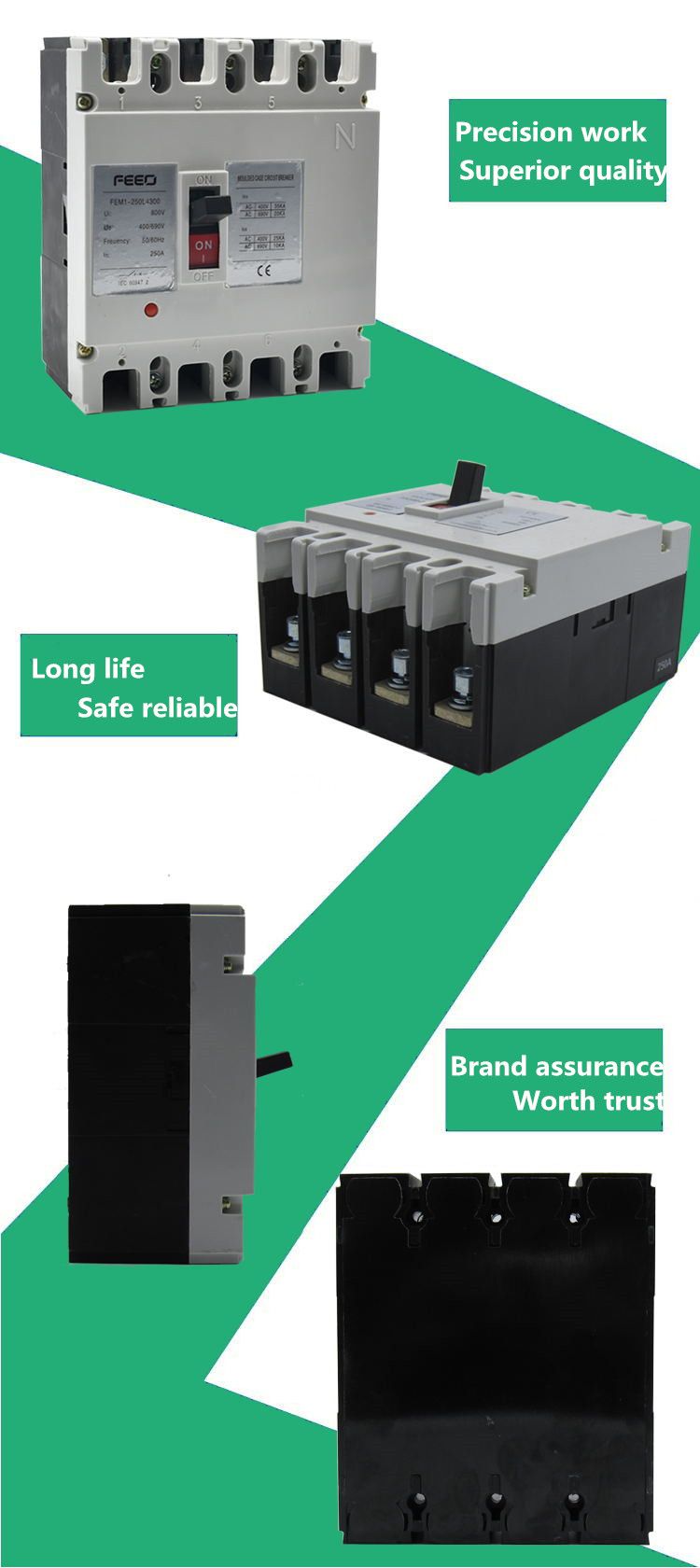

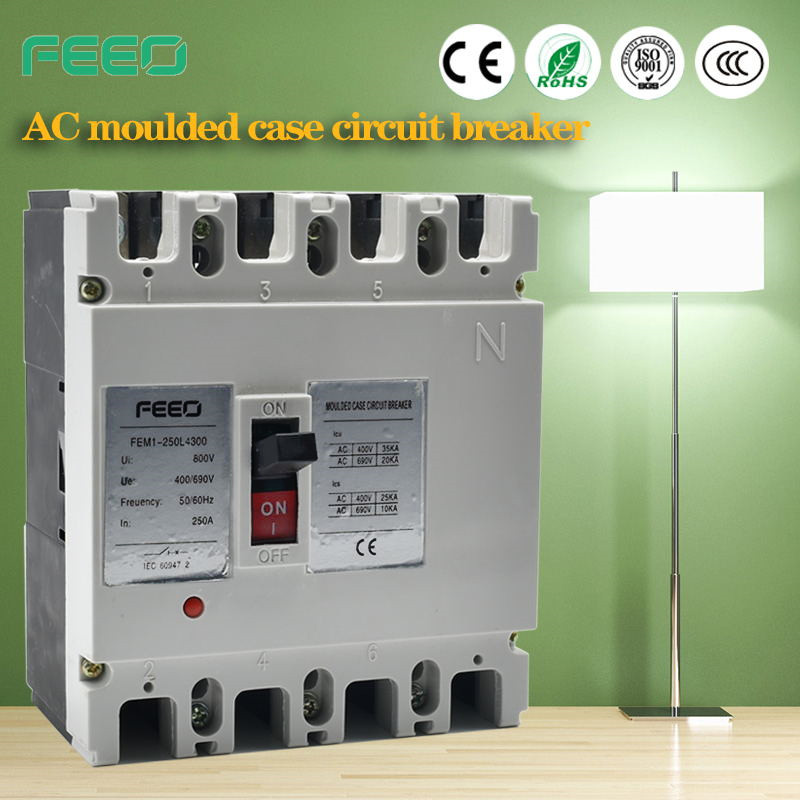

4 Pole Moulded Case Circuit Breaker MCCB Product Description
4 Pole MCCB Application:FEM1 series moulded case circuit breaker is a new type product developed and manufactured by Adopting international advanced technology. It is supplied with rated insulation voltage 800V and used for circuit of AC 50Hz, rated operation voltage AC 400V or below rated operation current up to 1600A for infrequent changing over and starting of the motors. Equipped with the protection devices for over-current, short circuit and under voltage, the product is capable of preventing damage of circuits and supply units. The product conforms to IEC60947-2 standard.4 Pole MCCB Parameters:| Item | AC MCCB |
| Code | FEM1-125 | FEM1-250 | FEM1-400 | FEM1-630 | FEM1-800 | FEM1-1250 |
| Pole | 2P,3P,4P | 2P,3P,4P | 3P,4P | 3P,4P | 3P,4P | 3P,4P |
| Voltage | 690v/800v |
| Current | 6A,10A,16A,
20A,25A,32A, 40A,50A,63A, 80A,100A,125A | 100A,125A, 140A,160A 200A,225A, 250A | 250A 400A | 400A 500A
630A | 630A 700A
800A | 800A, 1000A,
1250A |
| Standard | IEC/EN60947 |
| Breaking Capacity | 35KA | 35KA | 50KA | 50KA | 75KA | 75KA |
| Characteristic Curve | C |
| Working Temperature | "-5°"to +40° |
| Protection Degree | IP20 |
| Electrical life | More than 8000times |
| Mechanical life | More than 2000times |
| Installation | 35MM DIN RAIL |
| Accessory | YES |
| Installation Altitude | ≤2000M |

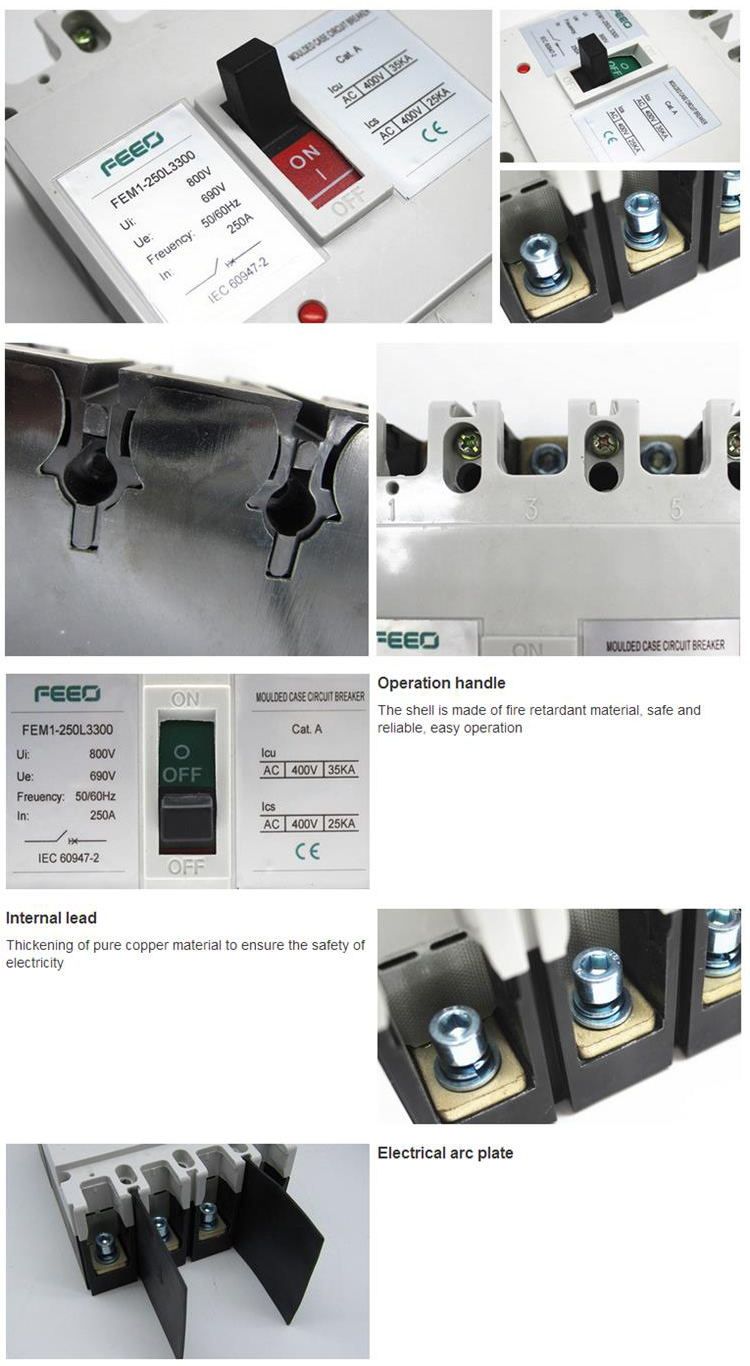

Detailed Images
Packaging & Shipping

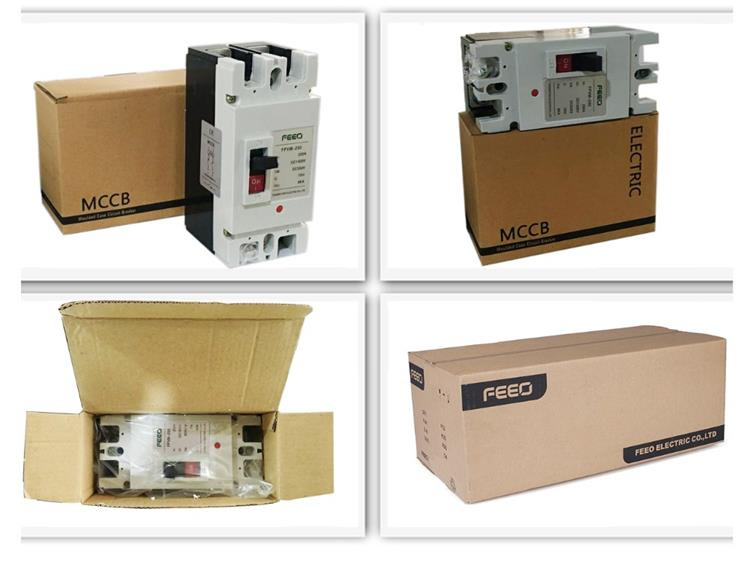

4 Pole MCCB Package:Standard export carton packing
4 Pole MCCB Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
4 Pole MCCB Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
YUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.
FAQ
Q: If I'm interested in your AC MCCB when I can receive your quotation and detail information after send the enquiry?
A: All your enquiry will be replied in 24hours.
Q: Can I get a sample before the order because I really don't how is your AC MCCB quality?
A: Of course! We also think sample order is the best way to build the trust.And in our company we offer free sample service! Please send the enquiry to us and get the free sample!
Q:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
Q: I need your price list of all your products, do you have a price list?
A:We do not have a price list of all of our products. Because we have so many items, and it is impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
