400W 12V Rainproof LED Driver with Ce for Signage

Name: 400W 12V Rainproof LED Driver with Ce for Signage
Brand: all-electronics-online.com
SKU: 728279915
Availability: InStock
Rating: 4.4 (60 reviews)

Price:	US $ 16.5-18.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

400W Rainproof Constant Voltage LED Driver with CE

1. Brief Introduction of LED driver
- Constant voltage output led driver.
- Rainproof led driver.
- Special heat dissipation design with aluminium housing and hot start ventilating fan.
- Safety design with separated line input power cord and low voltage output terminals, preventing
electrical shock.

2. Technical Specification of LED driver

Model no.	RLDV-12E400C
Input voltage	180-250 VAC 50/60Hz
Max. power	400W
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	>83%
Output voltage	12VDC ± 5%
Output current	33.3A
Operating temperature	-25~40
Installation	Outdoor rainproof
IP rating	IP23
Cooling	Built-in electric fan

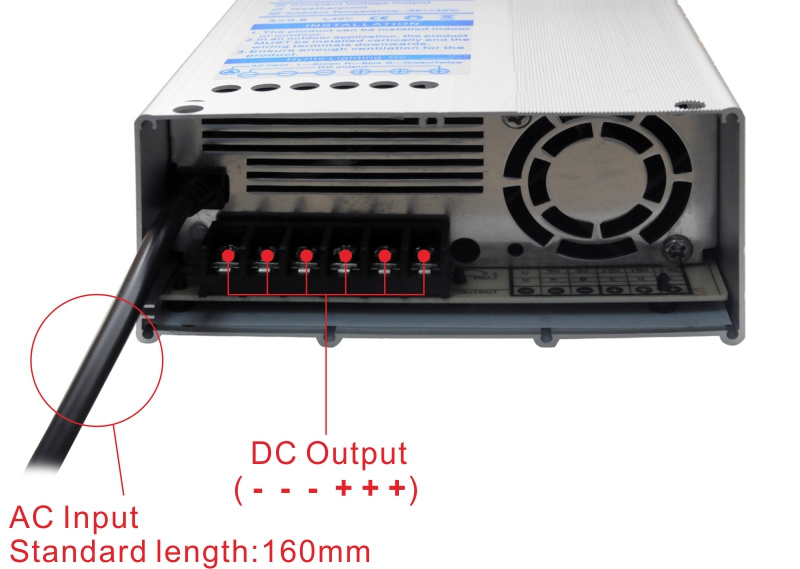

Connection input/output	Input:18AWG*3(30cm) Output: terminal(six)

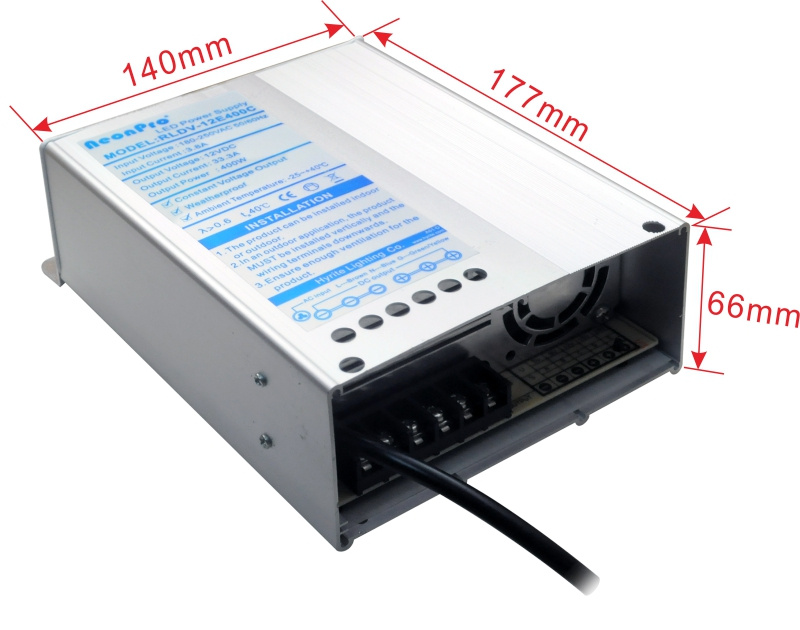

Dimensions(LWH)	20714066 mm
Weight(kg)	1.05
Packing information	20 Pcs/ Carton, G.W 24 KG

3. Applications of LED driver:
*LED module
*LED strip
*Bar light
*LED-neon tube
*Other signage lighting

4. Important Parameter of LED driver:
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP23

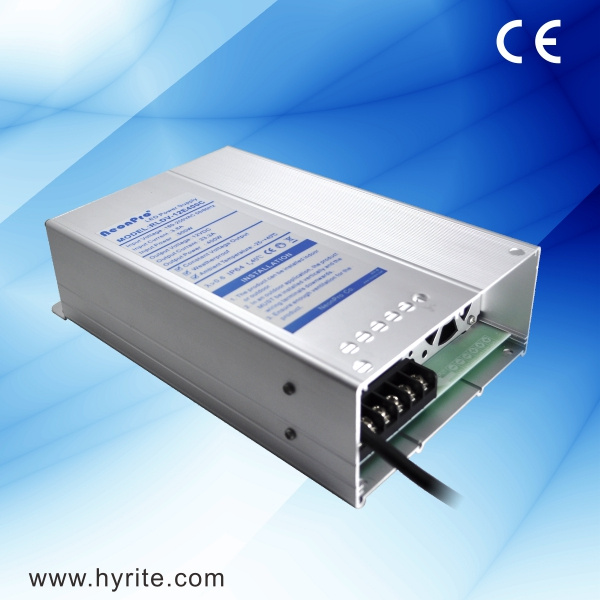

5. Product Pictures

6. Projects&Workshop

Prod Model:	RLDV-12E400C
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	180-250V
Input Current:	3.8A
Output Voltage:	12V
Output Power:	400W
Output-Type:	Constant Voltage
Dimming:	No
Power Factor:	0.65
Efficiency:	>83%
Perating Temperature:	-25~40
Installation:	Outdoor Rainproof
Usage:	Vehicle
Output Type:	Quad
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
