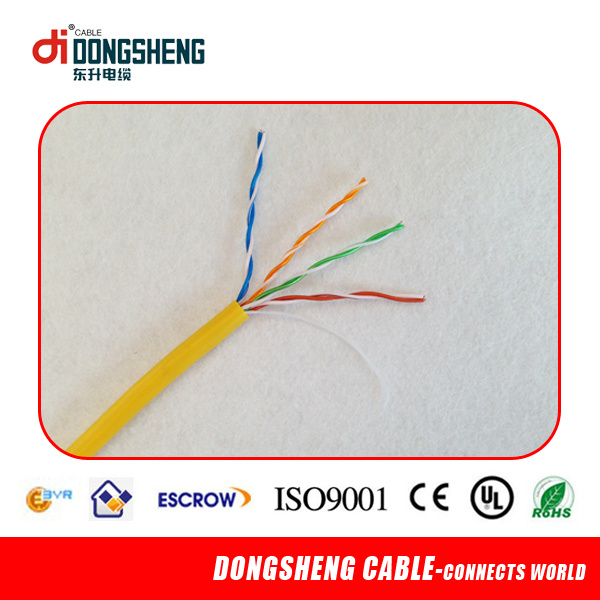

0.48mm, 0.50mm CCA/Cu PVC for UTP Cat5e Cable
Cat5e cable
Tips: We can ensure the cable pass FLUKE TEST 100% for CU conductor, with a high performance in your Cabling solution, or project.
1. Certification: CE. ROHS,REACH,ISO Listed
2. Compliance: ETL verified ANSI TIA/EIA568-2, ISO/IEC 11801. RoHS Compliant.
3.Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment
4. Remark: 250HMZ 550MHz ATM 155MBPS, 100mbps TPDDI, Fast Ethernet etc

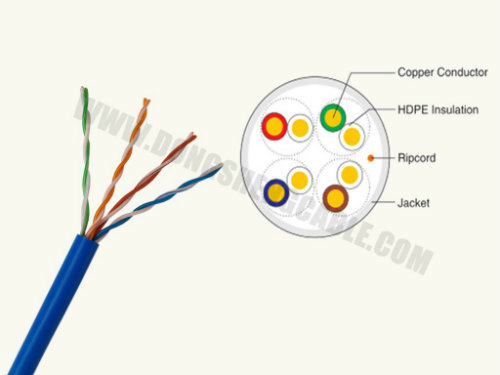

Cat5e Lan Network Cable Construction: Cat5e cable
Item |
Conductor |
Number Of Pairs |
Shielding |
Drain Wire |
O.D. |
Cat5e UTP Cable |
0.51mm
BC/CCA |
4 |
Non |
Non |
5.1mm Jacket
ROHS,UV,LSZH,UL,Reach |
Cat5e FTP Cable |
0.51mm
BC/CCA |
4 |
Aluminum Foil |
Yes |
5.8mm
ROHS,UV,LSZH,UL,Reach |
Cat5e SFTP Cable |
0.51mm
BC/CCA |
4 |
Aluminum Foil + Alloy Braiding |
Yes |
6.2mmJacket
ROHS,UV,LSZH,UL,Reach |
Cat5e UTP
Outdoor Cable |
0.51mm
BC/CCA
|
4 |
Non |
Non |
6.2mm Jacket
ROHS,UV,LSZH,UL,Reach |
Cat5e FTP
Messenger Cable |
0.51mm
BC/CCA
|
4 | Aluminum Foil | Yes | 6.0mm Jacket ROHS,UV,LSZH,UL,Reach |
Cat5e UTP Cable Technical Performance(100m)- Cat5e cable
Frequency MHz | RL ≥dB | Attenuation ≤dB/100m | NEXT ≥dB/100m | PHASE DELAY≤ ns | ELFEXT ≥dB/100m | PS NEXT ≥dB/100m | PS ELFEXT ≥dB/100m |
| 1 | 20.0 | 2.0 | 65.3 | 570 | 63.8 | 62.3 | 60.8 |
| 4 | 23.0 | 4.1 | 56.3 | 552 | 51.7 | 53.3 | 48.8 |
| 8 | 24.5 | 5.8 | 51.8 | 546.73 | 45.7 | 48.8 | 42.7 |
| 10 | 25.0 | 6.5 | 50.3 | 545.38 | 43.8 | 47.3 | 40.8 |
| 16 | 25.0 | 8.2 | 47.3 | 543 | 39.7 | 44.2 | 36.7 |
| 20 | 25.0 | 9.3 | 48.5 | 542.05 | 37.7 | 42.8 | 34.7 |
| 25 | 24.3 | 10.4 | 44.3 | 541.2 | 35.8 | 41.3 | 32.8 |
| 31.25 | 23.6 | 11.6 | 42.9 | 540.44 | 33.9 | 39.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 538.55 | 27.8 | 35.4 | 24.8 |
| 100 | 20.1 | 22.0 | 35.3 | 537.6 | 23.8 | 32.3 | 20.8 |
Applications- Cat5e cable 1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
Picture and Package- Cat5e 1)305m/pull box, 2 box in a carton
2) 45boxes with pallet
3) Yellow box or Color
4) As customer's own request.

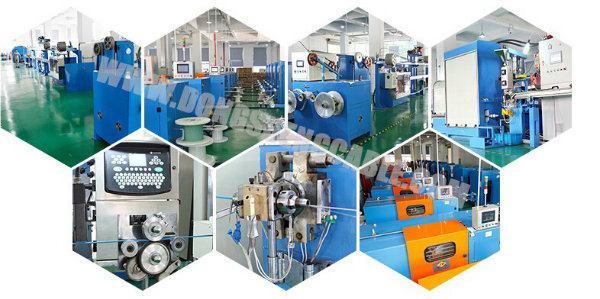

Production line - Cat5e cable
Exhibtion Show- Cat5e cable
Other Cables:- Cat5e cable
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
