Prod Model: |
DSC-15090202 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Conductor: |
0.5/0.51mm Cu/CCA |
Insulation: |
0.91mm PE |
Jacket: |
5.mm PVC/PE |
Certificate: |
CE/RoHS/SGS/ETL |
Fluke Test: |
100% Pass |
Key Words: |
Network Cable |
Application: |
LAN Cable |
Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
Cover Material: |
PVC |
Type: |
Cat 5 |
Certification: |
UL |
Model: |
Cat5e LAN Cable |
Brand: |
OEM |
Product Description
Network Cable Factory Competitive Price Cat5e&Cat6 UTP, FTP. SFTP Network cable Tips: We can ensure the cable pass FLUKE TEST 100% for CU conductor, with a high
performance in your Cabling solution, or project. 1. Certification: CE. ROHS,REACH,ISO Listed
2. Compliance: ETL verified ANSI TIA/EIA568-2, ISO/IEC 11801. RoHS Compliant.
3.Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment
4. Remark: 250HMZ 550MHz ATM 155MBPS, 100mbps TPDDI, Fast Ethernet etc

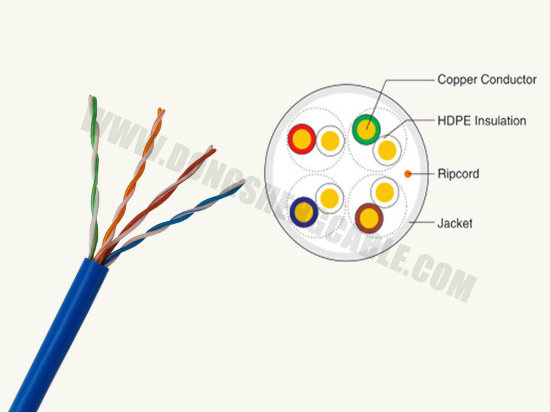

Cat5e Lan Network Cable Construction: Network cable Item | Conductor | Number Of Pairs | Shielding | Drain Wire | O.D. |
Cat5e UTP Cable | 0.51mm BC/CCA | 4 | Non | Non | 5.1mm Jacket ROHS,UV,LSZH,UL,Reach |
Cat5e FTP Cable | 0.51mm BC/CCA | 4 | Aluminum Foil | Yes | 5.8mm ROHS,UV,LSZH,UL,Reach |
Cat5e SFTP Cable | 0.51mm BC/CCA | 4 | Aluminum Foil + Alloy Braiding | Yes | 6.2mmJacket ROHS,UV,LSZH,UL,Reach |
Cat5e UTP Outdoor Cable | 0.51mm BC/CCA | 4 | Non | Non | 6.2mm Jacket ROHS,UV,LSZH,UL,Reach |
Cat5e FTP Messenger Cable | 0.51mm BC/CCA | 4 | Aluminum Foil | Yes | 6.0mm Jacket ROHS,UV,LSZH,UL,Reach |
Cat5e UTP Cable Technical Performance(100m) Network cable Frequency MHz | RL ≥dB | Attenuation ≤dB/100m | NEXT ≥dB/100m | PHASE DELAY≤ ns | ELFEXT ≥dB/100m | PS NEXT ≥dB/100m | PS ELFEXT ≥dB/100m |
1 | 20.0 | 2.0 | 65.3 | 570 | 63.8 | 62.3 | 60.8 |
4 | 23.0 | 4.1 | 56.3 | 552 | 51.7 | 53.3 | 48.8 |
8 | 24.5 | 5.8 | 51.8 | 546.73 | 45.7 | 48.8 | 42.7 |
10 | 25.0 | 6.5 | 50.3 | 545.38 | 43.8 | 47.3 | 40.8 |
16 | 25.0 | 8.2 | 47.3 | 543 | 39.7 | 44.2 | 36.7 |
20 | 25.0 | 9.3 | 48.5 | 542.05 | 37.7 | 42.8 | 34.7 |
25 | 24.3 | 10.4 | 44.3 | 541.2 | 35.8 | 41.3 | 32.8 |
31.25 | 23.6 | 11.6 | 42.9 | 540.44 | 33.9 | 39.9 | 30.9 |
62.5 | 21.5 | 17.0 | 38.4 | 538.55 | 27.8 | 35.4 | 24.8 |
100 | 20.1 | 22.0 | 35.3 | 537.6 | 23.8 | 32.3 | 20.8 |
Applications:
Network cable 1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
Picture and Package-Network cable Production line Exhibtion Show Other Cables:
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
