UTP Cat5e Cat6 Lan Cable application for network communication

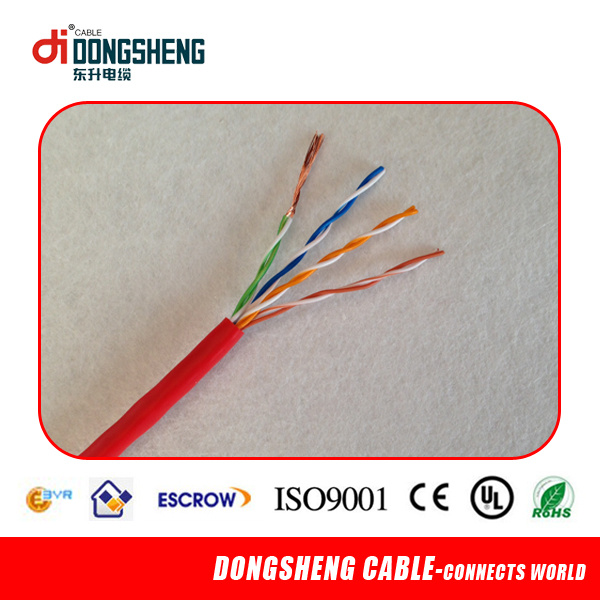

UTP Cat5e Lan Cable

Tips: We can ensure the cable pass FLUKE TEST 100% for CU conductor, with a high
performance in your Cabling solution, or projec.

UTP Cat5e Cat6 Lan Cable application for network communication
1. Certification: CE. ROHS,REACH,ISO Listed
2. Compliance: ETL verified ANSI TIA/EIA568-2, ISO/IEC 11801. RoHS Compliant.
3.Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment
4. Remark: 250HMZ 550MHz ATM 155MBPS, 100mbps TPDDI, Fast Ethernet etc

UTP Cat5e Cat6 Lan Cable application for network communication

Item	Conductor	Number Of Pairs	Shielding	Drain Wire	O.D.
Cat5e UTP Cable	0.51mm BC/CCA	4	Non	Non	5.1mm Jacket ROHS,UV,LSZH,UL,Reach
Cat5e FTP Cable	0.51mm BC/CCA	4	Aluminum Foil	Yes	5.8mm ROHS,UV,LSZH,UL,Reach
Cat5e SFTP Cable	0.51mm BC/CCA	4	Aluminum Foil + Alloy Braiding	Yes	6.2mmJacket ROHS,UV,LSZH,UL,Reach
Cat5e UTP Outdoor Cable	0.51mm BC/CCA	4	Non	Non	6.2mm Jacket ROHS,UV,LSZH,UL,Reach
Cat5e FTP Messenger Cable	0.51mm BC/CCA	4	Aluminum Foil	Yes	6.0mm JacketROHS,UV,LSZH,UL,Reach

UTP Cat5e Cat6 Lan Cable application for network communication

Frequency MHz	RL ≥dB	Attenuation ≤dB/100m	NEXT ≥dB/100m	PHASE DELAY≤ ns	ELFEXT ≥dB/100m	PS NEXT ≥dB/100m	PS ELFEXT ≥dB/100m
1	20.0	2.0	65.3	570	63.8	62.3	60.8
4	23.0	4.1	56.3	552	51.7	53.3	48.8
8	24.5	5.8	51.8	546.73	45.7	48.8	42.7
10	25.0	6.5	50.3	545.38	43.8	47.3	40.8
16	25.0	8.2	47.3	543	39.7	44.2	36.7
20	25.0	9.3	48.5	542.05	37.7	42.8	34.7
25	24.3	10.4	44.3	541.2	35.8	41.3	32.8
31.25	23.6	11.6	42.9	540.44	33.9	39.9	30.9
62.5	21.5	17.0	38.4	538.55	27.8	35.4	24.8
100	20.1	22.0	35.3	537.6	23.8	32.3	20.8

UTP Cat5e Cat6 Lan Cable application for network communication
Applications: Cat5e UTP Cable, UTP Cat5e Cable
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission

24 Hours Available
Name:Wendy Lee
Mobile (waht's app):+86 15958030333
Phone:+86-571-61070066
Fax:+86-571-63763198

Web address:www.dongsheng.com

Prod Model:	DSC-UTP Cat5e Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LAN Cable:	Cat5e UTP Cable with UL CE, RoHS, ISO
Network Cable:	UTP Cat5e
Data Cable:	SFTP Cat5e
Outdoor Cable:	FTP Cat5e Messenger
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Type:	Cat 5
Certification:	UL
Model:	Cat5e Cable with UL Ce, RoHS, ISO
Brand:	CAT6 Cable with UL Ce, RoHS, ISO
