Factory Price CCA\CCS\Cu Outdoor UTP FTP LAN Cable Cat5e

$Factory Price CCA\CCS\Cu Outdoor UTP FTP LAN Cable Cat5e$

Price:	US $ 25-70/Bag
Min Order:	30/Bag
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

utp cat5e

Tips:We can ensure to Pass Fluke Test DTX1800 absolutely, with a high performance data in your system solution!

Spec:

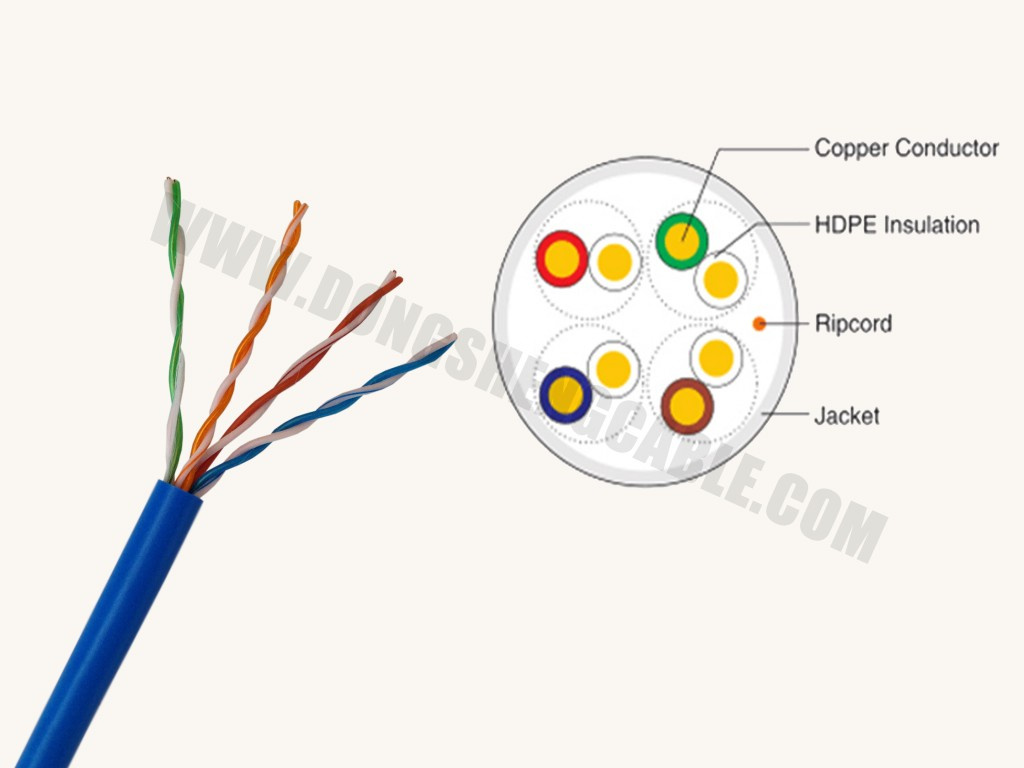

4Px 24AWG BC/CCS/CCA conductor + 0.91mm PE insulation + 5.3± 0.2mm PVC jacket

Descriptions:
1) Rated temperature: 60°C, 75°C
2) Bare solid or stranded copper conductor
3) Color coated HD PE insulation
4) Rip cord (optional)
5) PVC,PE, LSZH jacket
6) Flammability grade: CMX, CM,CMR
7) Pull out box packing available

Applications:
1) 10 Base-T
2) 100 Base-TX
3) 100VG-AnyLan
4) 1000 Base-T (gigabit Ethernet)
5) 155Mbps ATM
6) 622Mbps ATM

According to EIA568B/C and ISO/IEC 11801 standards
Option: messenger

Data Sheet

Frequency MHz	Return loss dB	Attenuation dB/100m	NEXT dB	ACR dB	PSNEXT dB	ELEFXT dB/100m	PSELEXT dB/100m	Delay ns/100m
0.772	19.4	1.8	67	65	64	66	63	575
1.0	20.0	2.0	65.3	63.0	62.3	63.8	60.8	570
4.0	21.0	4.1	56.3	52.0	53.3	51.7	48.7	562
6.0	24.5	5.8	51.8	46.0	48.8	45.7	42.7	546.7
10.0	25.0	6.5	50.3	44.0	47.3	43.8	40.8	546.4
16.0	25.0	8.2	47.3	39.0	44.3	39.7	36.7	543
20.0	25.0	9.3	45.8	37.0	42.8	37.7	34.7	542
25.0	24.3	10.4	44.3	34.0	41.3	35.8	32.8	541.2
31.25	23.6	11.7	42.9	31.0	39.9	33.9	30.9	540.4
62.5	21.5	17	38.4	21.0	35.4	27.8	24.8	438.6
100.0	20.1	22	36.3	13.0	32.3	23.8	20.8	537.6

Other products:

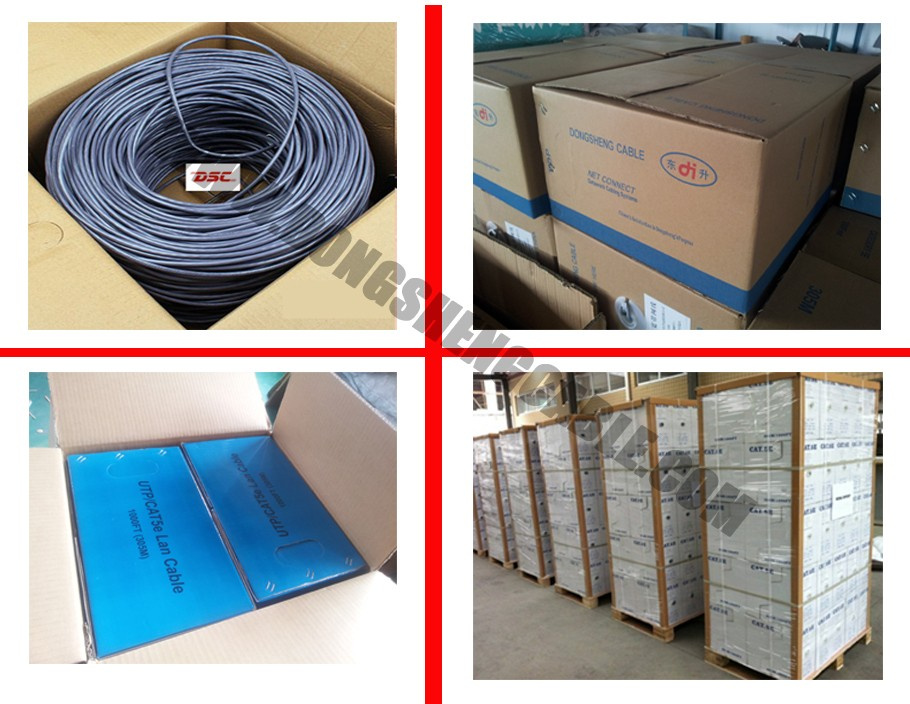

Packing Size:
L: 38cm × W: 38cm × H: 22cm or L: 46.5cm × W: 40cm × H: 40cm

Weight:
13.3Kg 305M/Easy pull box, 2 boxes in one carton

6.Certificate: We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.

7.Factory and Production line
We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.

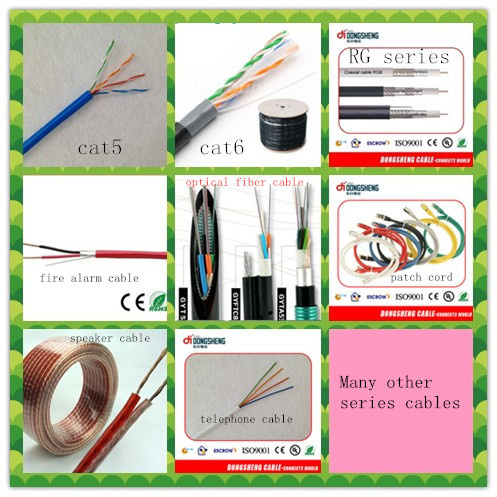

8.More types of Cables we do

We also produce these cables for more than 20 years, RG6,RG11,RG59 COAXIAL CABLE, TELEPHONE CABLE, ALARM CABLE.MICROPHONE CABLE etc.

We are looking forward to establishing long term&mutual benifit business relationship with you.

Prod Model:	utp cat5e
Model No:	UTP Cat5e
Conductor:	0.51mm Bc/CCA/CCS
Conductor Type:	Twisted Pair*4
Insulation:	0.91mm Solid PE
Sheath:	5.3mm PVC/PE/LSZH
Color:	as Requirement
Rated Voltage:	300V
Range Of Application:	Network
Usage:	Computer
Certification:	VDE
