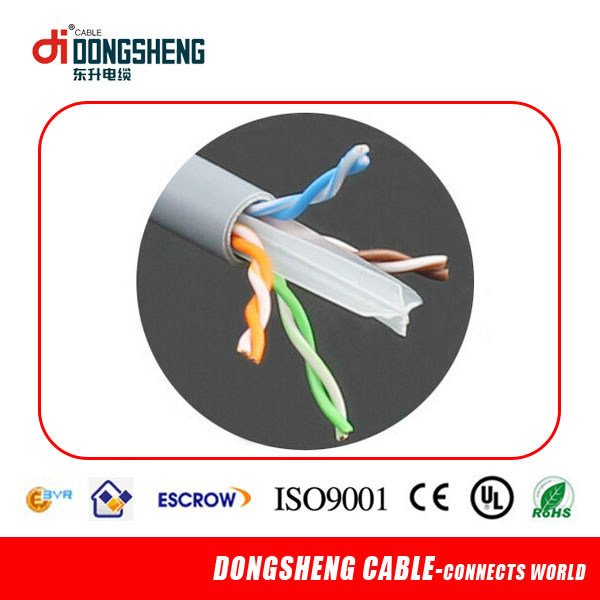

CE/RoHS/ISO Approved UTP CAT6 Cable

Name: CE/RoHS/ISO Approved UTP CAT6 Cable
Brand: all-electronics-online.com
SKU: 763199075
Availability: InStock
Rating: 4.6 (79 reviews)

Price:	US $ 0.05-1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	30000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

CAT6 Cable
1)      Rated temperature: 60 temperature,75 temperature
2)      Color coded PE insulation
3)      PVC jacket

CAT6 UTP Cable (Network Cable)
Specifications:
BC: Bare Copper      CCS: Copper Clad Steel
TC: Tinned Copper   CCA: Copper Clad Aluminum

1): 4P×0.565mm BC conductor + 1.02mm PE insulation + Cross + 6.4mm PVC jacket
2): Customers'specifications are welcomed

Note:
1)Center conductor:BC,TC,CCA,CCS
2) Drain wire: BC,TC,CCA,CCS
3)Rated temperature:60°C ,75°C
4)Color coated PE insulation
5)PVC jacket

Function

Frequency (MHz)	Impedance (Ohm)	R L (dB)	Attenuation (dB/100m)	NEXT (dB)	ACR (dB)	EIFEXT (dB)
0.772	100±15	19.44	1.84	76.0	74.1	67.8
1.0		20.00	2.04	74.3	72.3	67.0
4.0		23.01	3.81	65.3	61.5	55.2
8.0		24.52	5.35	60.8	55.4	49.5
10.0		25.00	5.99	59.3	53.3	47.2
16.0		25.00	7.60	56.2	48.6	43.5
20.0		25.00	8.52	54.8	46.3	41.6
25.0		24.32	9.57	53.3	43.7	39.3
31.25		23.64	10.74	51.9	41.2	37.5
62.5		21.54	15.48	47.4	31.9	31.8
100		20.10	19.92	44.3	24.4	27.5
125.0	100±22	19.42	22.49	42.8	16.2	23.2
200.0	100±22	18.00	29.15	39.8	10.6	21.7
250.0	100±32	17.32	33.04	38.3	5.5	18.6

24 Hours Available
Name:Wendy Lee
Mobile (waht's app):+86 15958030333
Phone:+86-571-61070066
Fax:+86-571-63763198

Web address:www.dongsheng.com

Prod Model:	Cat6 cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket Color:	White, Gray, Black, Yellow, Brown, Red
Conductor Size:	28AWG, 26AWG, 24AWG, 23AWG, 22AWG
Application:	LAN Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Type:	Cat 6
Certification:	UL
Wire Core Material:	Bc/CCS/CCA/Cu/Ccag
Brand:	Dongsheng

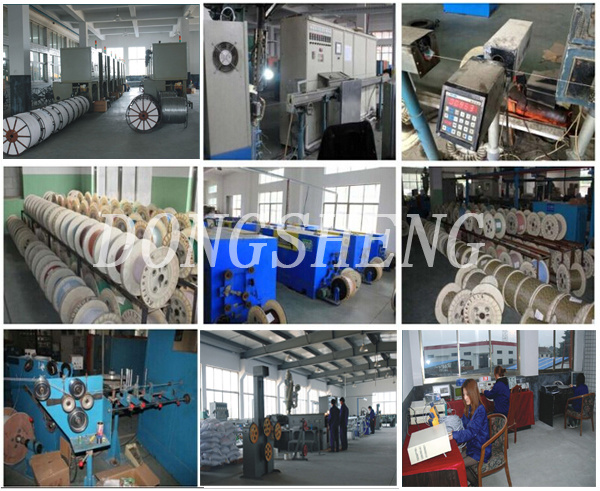

DSC Located at the city of Lin'an, Hangzhou, Hangzhou Lin'an Dongsheng Cable Co., Ltd. is 28km away from Hangzhou City, covering an area of 30000 square meters, with beautiful landscape and convenient communication facilities.

Since 1991, 24 year cable experience, our rapid development helps us to be the industry leader. Our company has passed ISO9001 quality system certification & UL certification, and had foreign trade license. Our company is on the top with comprehensive strength.

Main products in our company cover LAN Network Cables Cat5e CAT6 Cat3, Coaxial CCTV/CATV Cable RG6 RG59 RG11 RG59-2C QR500 RG58 RG213 LMR400 KX6 19VATC CT100 SAT703 ect. Telephone Cable, Alarm Cable and Cable Accessories

Our motto is "Keeping pace with the time, and going up like the sun", just as our company's name, Dongsheng, suggests. We are looking forward to establishing long term & mutually beneficial business relationship with you.
