5 Years Warranty 300W 12V Constant Voltage LED Driver with Ce

Name: 5 Years Warranty 300W 12V Constant Voltage LED Driver with Ce
Brand: all-electronics-online.com
SKU: 728284585
Availability: InStock
Rating: 4.6 (106 reviews)

Price:	US $ 22.4/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LV-12E300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Voltage:	12VDC ± 5%
Output Current:	25 a Max
Max. Power:	300W
Power Factor:	Low
Efficiency:	83 %
Weight(Kg):	1.1250
Packing Information:	20 PCS/ Carton, G.W 22.5 Kg
Installation:	Outdoor Rainproof
IP Rating:	IP24
Dimensions(LWH):	20714066 mm
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

300W 12V Long lifetime PWM Constant Voltage LED Driver with CE

1. Feature of LED driver:
-Designed for outdoor signage, decoration or lighting applications.
- Constant voltage output.
- Rainproof.
- Special heat dissipation design with aluminium housing and hot start ventilating fan.
- Safety design with separated line input power cord and low voltage output terminals, preventing electrical shock.
- Output voltage adjustable.

2. Specification of LED driver

Model no.	LV-12E300
Input voltage	180-250 VAC 50/60 Hz
Max. power	300W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	83 %
Output voltage	12VDC ± 5%
Output current	25 A max
Operating temperature	-25~40
Installation	Outdoor rainproof
IP rating	IP24
Cooling	Built-in electric fan

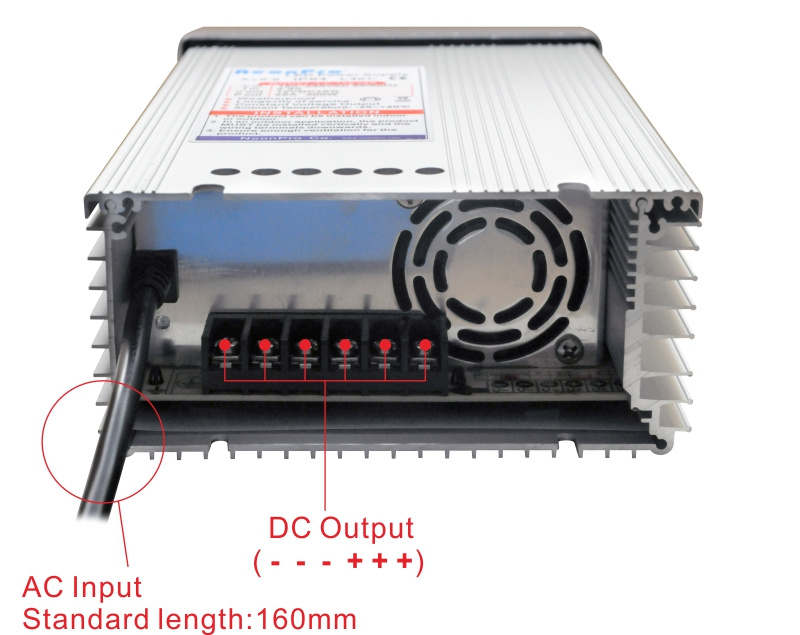

Connection input/output	Input:0.75mm²x3 (30cm) / Output:terminal(six)

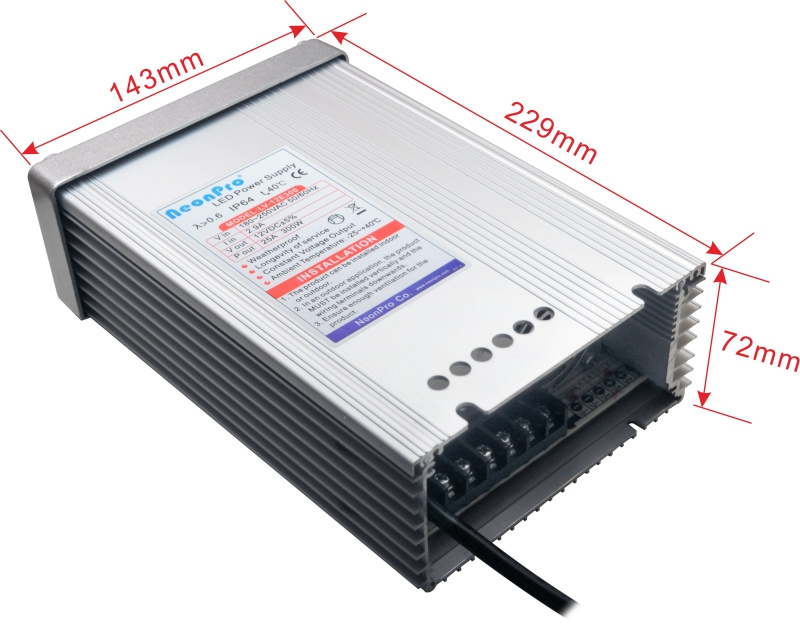

Dimensions(LWH)	20714066 mm
Weight(kg)	1.1250
Packing information	20 Pcs/ Carton, G.W 22.5 KG

3. Application of LED driver
LED module & LED strip
LED light box and channel letter
LED neon light
LED bar
Other signage lighting.

4. Details of LED driver

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
